Electric Motor Insulating Materials Milky white Mylar film
-
$3.95≥500 Kilogram
- Min. Order:
- 500 Kilogram
- Min. Order:
- 500 Kilogram
- Transportation:
- Ocean, Land, Air, Express
- Port:
- NINGBO, SHANGHAI, TIANJIN
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 5000ton |
| Supply Ability: | 5000TON |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery |
| Certificate: | SGS |
| HS Code: | 3920620000 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | NINGBO,SHANGHAI,TIANJIN |

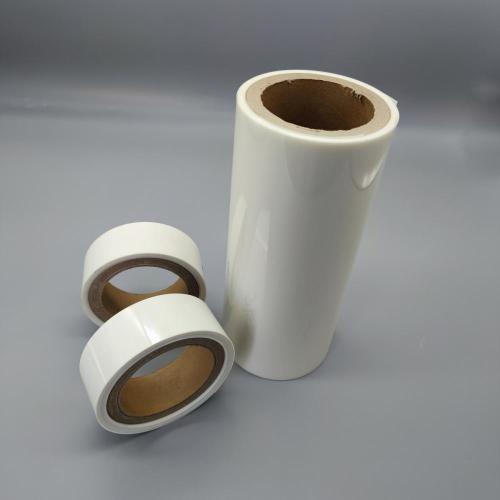

Electric Motor Insulating Materials Milky white Mylar film
Translucent PET Films have a very good mechanical strength and are resistant against the most oils, grease and solvents used in the transformer- and motor-industry. Under normal circumstances polyester film has a very long life cycle and could be used within a temperature range of - 60°C and + 180°C.
6021 Milky White PET film with smooth and shiny surface.In a wide range of temperature has excellent physical and mechanical properties, long-term use temperature up to 120℃, excellent electrical insulation, even at high temperature and high frequency, its electrical properties are still good, creep resistance, fatigue resistance, friction resistance, dimensional stability are very good.Milky White Polyester Film is a kind of Electrical Insulation Materials. It can be used for Electrical Motors and Transformer, Capacitors and Electrical Cables. Milky White Polyester film PET film is a kind of Color PET Film .it is a kind of Insulation Material Films. we can offer 150mic Milky White Polyester Film, 188mic Translucent Mylar Pet Film , 250mic Translucent BOPET Film, 350mic Milky White Mylar Film ect.
Application:
- Packaging ,Printing , lable
- Insulation of Electrical Motors and Transformer, Capacitors and Electrical Cables
- Thermal and Physical barrier
- Release Liner
Features:
- Reduction of Volume and Weight
- Higher Insulation Values
- Higher Temperature Values
- Increased Automatic Production Solutions
- Higher temperature class up to 180° C ( class H )
Specification:
Thickness :50-350μm
Width :350-2000mm (others can be customized )
Other spec can be customized according to client`s requirement.
Technical data sheet
|
Item
|
Unit
|
Value
|
Test condition
|
||||||
|
Thickness
|
Um |
100 |
125 |
150 |
188 |
200 |
250 |
GB/T13542.1-2009 |
|
|
Tensile strength
|
MD
|
Mpa |
196 |
179 |
180 |
182 |
182 |
171 |
GB/T13542.2-2009
|
|
TD
|
200 |
190 |
205 |
193 |
195 |
177 |
|||
|
Elongation at break
|
MD
|
% |
131 |
137 |
165 |
170 |
176 |
185 |
GB/T13542.2-2009 |
|
TD
|
100 |
114 |
112 |
110 |
106 |
115 |
|||
|
Heat shrinkage (150℃,30min) |
MD
|
% |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
GB/T13542.2-2009 |
|
TD
|
0.5 |
0.5 |
0.5 |
0.6 |
0.7 |
0.5 |
|||
|
Haze
|
% |
25 |
28 |
42.3 |
44.6 |
46.5 |
55.1 |
GB/T2410-2008 |
|
|
Electrical strength
|
V/um |
123 |
105 |
97 |
87 |
80 |
72 |
GB/T13542.2-2009 |
|
|
Volume resistivity
|
Ω.m |
1.3X1015 |
GB/T13542.2-2009 |
||||||
|
Dielectric loss tangent (50Hz) |
|
2.5X10-3 |
GB/T13542.2-2009 |
||||||
|
Relative dielectric constant (50HZ) |
|
3.4 |
GB/T13542.2-2009 |
||||||
We value every inquiry sent to us, ensure quick competitive offer.
We put your order into our tight production schedule, ensure your punctual delivery time.
Shipping notice/ insurance to you as soon as your order is shipped.
We respond your complain within 48 hours
1.Are you a manufacturer?
Yes,Our company (Shijiazhuang DADAO Packaging Material CO.,Ltd) is establised in 2004. we have much experience in plastic film.Our main products including
1.Metallized Film (VMPET,VMBOPP,VMPI)2.PET color film (PET Milky White Film , PET white film , PET black film ect ) 3.3D Holographic Foil These products are widely applied to the packaging and printing of the industries including electronical products, food, commodities, medicine, labels, gifts etc.If you need anything, please feel free to contact me.
2.Do you provide free samples?
Yes,the fright should be charged by customers.
Note
The size, color and each of the parameters can be changed as your requirements.
Also you can send sample to us for testing, and then produce as your samples
