Milky Mylar Bopet Film Sheet For Stencil template
-
$3.75≥500 Kilogram
- Min. Order:
- 500 Kilogram
- Min. Order:
- 500 Kilogram
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai, Tianjin, Anyport in China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000Ton |
| Supply Ability: | 1000Ton |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CIF,DDP,DDU |
| Certificate: | SGS |
| HS Code: | 392062000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shanghai,Tianjin,Anyport in China |
Milky Mylar Bopet Film Sheet Used For Stencil Sheet
High dimensional stability and good machinability, easy to cut make it.
And it can resitant temperature up to 120℃ for a long time, so it suitable for laser cut.
wrapping insulation for coils and cables, as well as producing insulating flexible composite material.
Specification
Nominal thickness(mm):0.025, 0.050, 0.075, 0.10, 0.125 , 0.188, 0.250, 0.300, 0.350
Nominal width(mm):1000, on request
•High dimensional stability
•white or Milky color
•Easy coating property
•Dielectric
Pet Black Film, opaque white polyester film, white polyester film, Eva Coated Film, metallized polyester film for sale, we are professional polyester film plant

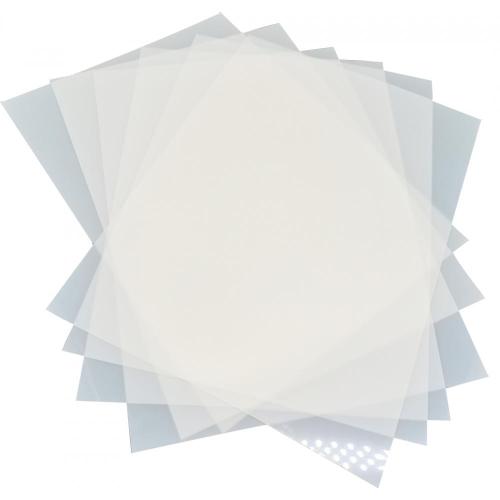

Photo of Product:
Technical Data Sheet:
|
Item
|
Unit
|
Value
|
Test condition |
|||||||
|
Thickness
|
Um |
100 |
125 |
150 |
188 |
200 |
250 |
GB/T13542.1-2009 |
|
|
|
Tensile strength |
MD |
Mpa |
196 |
179 |
180 |
182 |
182 |
171 |
GB/T13542.2-2009
|
|
|
TD |
200 |
190 |
205 |
193 |
195 |
177 |
|
|||
|
Elongation at break |
MD |
% |
131 |
137 |
165 |
170 |
176 |
185 |
GB/T13542.2-2009 |
|
|
TD |
100 |
114 |
112 |
110 |
106 |
115 |
|
|||
|
Heat shrinkage |
MD |
% |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
GB/T13542.2-2009 |
|
|
TD |
0.5 |
0.5 |
0.5 |
0.6 |
0.7 |
0.5 |
|
|||
|
Haze |
% |
25 |
28 |
42.3 |
44.6 |
46.5 |
55.1 |
GB/T2410-2008 |
|
|
|
Electrical strength |
V/um |
123 |
105 |
97 |
87 |
80 |
72 |
GB/T13542.2-2009 |
|
|
|
Volume resistivity |
Ω.m |
1.3X1015 |
GB/T13542.2-2009 |
|||||||
|
Dielectric loss tangent(50Hz) |
|
2.5X10-3 |
GB/T13542.2-2009 |
|||||||
|
Relative dielectric constant (50HZ) |
|
3.4 |
GB/T13542.2-2009 |
|||||||
