Blank Stencil Milky PET Mylar Sheet Film Roll
-
$3.75≥500 Kilogram
- Min. Order:
- 500 Kilogram
- Min. Order:
- 500 Kilogram
- Transportation:
- Ocean, Land, Air
- Port:
- Shanghai, Tianjin, Anyport in China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000Ton |
| Supply Ability: | 1000Ton |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CIF,EXW,DDP,DDU |
| Certificate: | SGS |
| HS Code: | 392062000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shanghai,Tianjin,Anyport in China |
Stencil Translucent Milky White Mylar pet Film Sheet
Blank stencil film normally it is milky white mylar film, we can supply you milky white mylar film roll or milky white mylar film sheet. It is translucent, normally used for wall stencil and template.
Polyester Film is made from Polyethylene terephthalate by casting & Biaxially oriented
wrapping insulation for coils and cables, as well as producing insulating flexible composite material.
Specification
Nominal thickness(mm):0.025, 0.050, 0.075, 0.10, 0.125 , 0.188, 0.250, 0.300, 0.350
Nominal width(mm):1000, on request
•High temperature resistance
•High dimensional stability
•white or Milky color
•Easy coating property
•Dielectric
•Low transmittance
Commonly used thickness come in 125um, 150um, 188um, 250um and 350um.
Pet Black Film, opaque white polyester film, white polyester film, Eva Coated Film, metallized polyester film for sale, we are professional polyester film plant

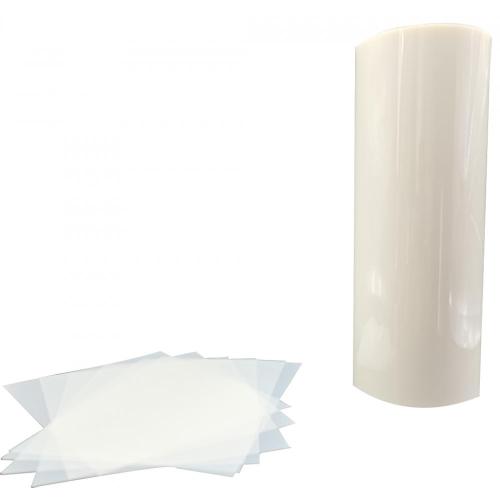

Photo of Product:
Technical Data Sheet:
|
Item
|
Unit
|
Value
|
Test condition |
|||||||
|
Thickness
|
Um |
100 |
125 |
150 |
188 |
200 |
250 |
GB/T13542.1-2009 |
|
|
|
Tensile strength |
MD |
Mpa |
196 |
179 |
180 |
182 |
182 |
171 |
GB/T13542.2-2009
|
|
|
TD |
200 |
190 |
205 |
193 |
195 |
177 |
|
|||
|
Elongation at break |
MD |
% |
131 |
137 |
165 |
170 |
176 |
185 |
GB/T13542.2-2009 |
|
|
TD |
100 |
114 |
112 |
110 |
106 |
115 |
|
|||
|
Heat shrinkage |
MD |
% |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
GB/T13542.2-2009 |
|
|
TD |
0.5 |
0.5 |
0.5 |
0.6 |
0.7 |
0.5 |
|
|||
|
Haze |
% |
25 |
28 |
42.3 |
44.6 |
46.5 |
55.1 |
GB/T2410-2008 |
|
|
|
Electrical strength |
V/um |
123 |
105 |
97 |
87 |
80 |
72 |
GB/T13542.2-2009 |
|
|
|
Volume resistivity |
Ω.m |
1.3X1015 |
GB/T13542.2-2009 |
|||||||
|
Dielectric loss tangent(50Hz) |
|
2.5X10-3 |
GB/T13542.2-2009 |
|||||||
|
Relative dielectric constant (50HZ) |
|
3.4 |
GB/T13542.2-2009 |
|||||||
