18-50micron Transparent Polyvinylidene Fluoride PVDF Film
Description
Polyvinylidene Fluoride PVDF Film is a kind of light fluoride material, It can be used forchemical processing, tubes and hoses, semiconductors, wire and cable, automotive, nuclear, protective coatings, food, and
pharmaceutical processing.
PVDF (polyvinylidene fluoride) is a kind of light fluoride material, with the working temperature ranging from -70 to 150 . It features superior corrosion resistance, mechanical property, electrical insulating property, low friction coefficient, weatherability, and radiation tolerance. Moreover, the tensile strength is two times higher than PTFE, the compressive strength six times higher than PTFE, and the abrasion resistance similar to nylon.
classification
1. PVDF Film for water treatment . it is divided into ultrafiltration membrane and microfiltration membrane. It is mainly used for pretreatment of sewage, seawater desalination, etc., to remove impurities such as macromolecules, bacteria and sediment
2. PVDF Film for outdoor construction.It mainly used for the protection of glass, external walls and outdoor billboards of outdoor buildings, it mainly for aging resistance and wear resistance
3. PVDF Film for battery, including membrane application in fuel cell and lithium ion polymer battery
Physical properties:
|
Performance |
UNIT |
PVDF |
|
Color |
|
White and others |
|
width |
mm |
100-3500mm |
|
Thickness |
Micron |
22mic,30mic, 35mic 38mic ,50mic ect |
|
Melting point |
℃ |
172, |
|
Crystallinity |
% |
65~78%, |
|
Relative density |
g/cm3 |
1.75-1.78 |
|
Water imbibition |
% |
<0.03 |
|
Oxygen index |
% |
43 |
|
Rockwell hardness |
|
150-115 |
|
Coefficient of friction |
|
0.14-0.17 |
|
Tensile yield strength |
MPa |
29.4-31.5 |
|
Compressive strength |
MPa |
9.1-9.8 |
|
Ultimate Elongation |
% |
40-100 |
|
Notch impact strength |
J/m |
202.6 |
|
Melting point |
℃ |
172 |
|
℃ |
112~145℃ |
|
|
work temperature |
℃ |
- 70~150℃ |

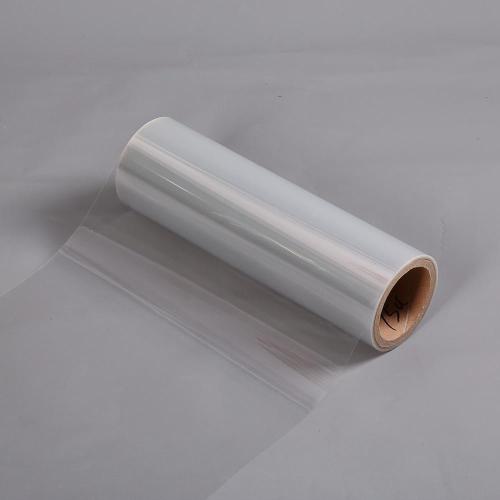

Product pictures:
Our company is establised in 2004. we have much experience in plastic film.Our main products including 1.Metallized Film (VMPET,VMBOPP,VMCPP ect) 2.Color PETfilm (PET Milky White Film , PET White Film , PET Black film ect ) 3.Coated PET Film (EVA coated film, silicone coated film , PVDC coated film) 4.3D Pepper Ghost Foil ect . These products are widely applied to the packaging and printing of the industries including electronical products, food, commodities, medicine, labels, gifts etc.If you need anything, please feel free to contact me.
