Ground Screw Foundation Ground Pile Spiral Pile
- Min. Order:
- 1000 Piece/Pieces
- Min. Order:
- 1000 Piece/Pieces
- Transportation:
- Ocean, Land
- Port:
- Tianjin
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Hebei China |
|---|---|
| Productivity: | 60000 Pieces/per Month |
| Supply Ability: | 2000PCS/per Day |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | GB DIN EN ISO1461-1999 |
| HS Code: | 73269090 |
| Transportation: | Ocean,Land |
| Port: | Tianjin |

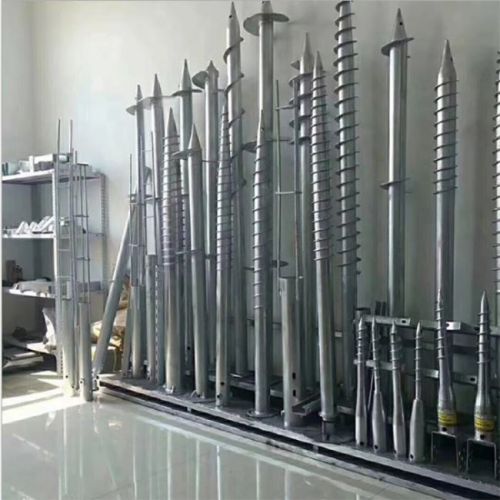

What are Ground Screw Pile?Ground Screw Pile are the engineering foundations installed in the soil.Screw Piles put a better foundation within everyone's reach.Now in use around the world,Ground Piles create strong,safe,long-lasting foundation for virtually any construction,also application in any landscape.
Ground Screw Foundation usually used for solar mounting systems.
Galvanized Ground Screw is made of carbon steel according to standard of DIN EN ISO 1461-1999.
N series Ground Screw Pile without flange, with Nut and reinforced washer, usually with 3 or 6 nut, and 2 pieces reinforced washer to reinforce strength.
Main parameters of the Ground Pile as follow:
Material of Ground Screws
S 235 carbon steel
Length of Ground Screw
550-6000 mm
Diameter of pipe
48 mm,68 mm,76 mm,89 mm,114 mm,140.3 mm or according to clients' request.
Thickness of pipe
2.5 mm,2.75 mm,3.0 mm,3.75 mm,4.0 mm
Flange size
200*8 mm,160*8 mm,220*8 mm or according to clients' request.
Nut
M10,M12,M14,M16 or according to clients' request.
Surface treatment: Hot dip galvanized, according to DIN EN ISO 1461-1999, thickness of coating zinc: more than 80 micron.
Production Chart of Galvanized Ground Screw:Cutting pipe length(with automatic cutting pipe machines) according to design, forming the pipe according to the design, welding nut, flange, blade and assemble(with automatic welding robot), acid pickling and hot dip galvanized treatment , QC and packing, shipments.
