galvanized hexagonal gabion baskets 60x80mm 2.2mm

galvanized hexagonal gabion baskets 60x80mm 2.2mm

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Incoterm:: FOB, CFR, CIF

Min. Order:: 50 Set/Sets

Min. Order:: 50 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei, China,(Main Land)
Productivity:	100000 sets per Month
Supply Ability:	100000 sets per Month
Payment Type:	L/C,T/T,Western Union
Incoterm:	FOB,CFR,CIF
Certificate:	ISO9001, SGS, CE
Transportation:	Ocean,Land,Air

Product Description

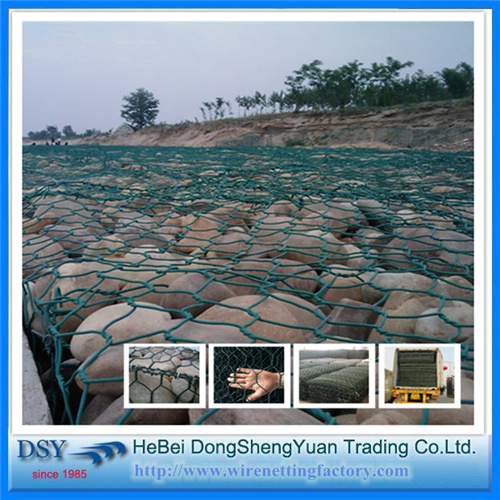

Hot Sale! ! Galvanized Hexagonal Gabion Box/Gabion Wire Mesh. Hexagonal gabion is a kind of eco grid structure. It has high resistance to corrosion, high strength, has the ductility of low carbon steel wire, PVC coated or galvanized or steel wire woven use of machinery, box type structure using the network produced is the stone cage net, or gabion mat.

We produce Hexagonal Galvanized Gabion Mesh used for flood control and military fortification. Gabion Box made of zinc coated steel welded mesh and lined with nonwoven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand, stone, then hesco barrier like a defence wall or bunker, it is widely use in military to protect safety.

Hexagonal Gabion Box/Gabion Wire Mesh

The intent with the Gabion Bench is to use the sculptural quality and interesting organic texture of the form to create a new functional design. Adding this piece to your garden will surely give you a modern twist on a ancient design.

Common specification:
Mesh wire:2.7mm
Selvedge wire:3.4mm
Lacing wire:2.2mm
Opening:8x10cm,10x12cm
Finish:GREEN color pvc coated thickness 1.0mm.

Specification:

Opening(mm)	Metal Wire Diameter Range(mm)	PVC Coated Wire Diameter Inner/Outside (mm)	Strands
60*80	φ2.0-2.8	φ2.0/3.0-2.5/3.5	3
80*100	φ2.0-3.2	φ2.0/3.0-2.8/3.8	3
80*120	φ2.0-3.2	φ2.0/3.0-2.8/3.8	3
100*120	φ2.0-3.4	φ2.0/3.0-2.8/3.8	3
100*150	φ2.0-3.4	φ2.0/3.0-2.8/3.8	3
120*150	φ2.0-4.0	φ2.0/3.0-2.8/3.8	3

Length(M)	Width(M)	Height(M)	Diaphragm	Volume(M3)	Tolerance
2.00	1	0.30	1	0.60	±5%
3.00	1	0.30	2	0.90
4.00	1	0.30	3	1.20
2.00	1	0.50	1	1.00
3.00	1	0.50	2	1.50
4.00	1	0.50	3	2.00
1.00	1	1.00	0	1.00
1.50	1	1.00	0	1.50
2.00	1	1.00	1	2.00
3.00	1	1.00	2	3.00
4.00	1	1.00	3	4.00
