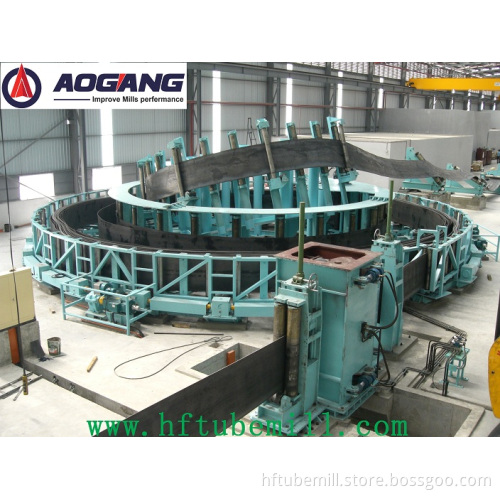

Horizontal Spiral Accumulator

Description :

Horizontal spiral accumulator

       (1) This unit is main include in press& carry material device, accumulator assemble, carry off material unit, electric control unit.

       (2)It is main include frame, electric motor, brake unit, circling direction transfer power axle of the reduce velocity, press & carry roll, pressure air system of guide roll, inspected velocity unit; it can supply the strip steel to accumulator and the mean times it will transfer the carry velocity information to electric control system, when we demand stop carry the material to this unit, it will stop roll to the electric motor and press& carry material roll by the break, and also could adjust the velocity to carry electric motor and the unit carry material velocity.

        (3)Accumulator frame assemble: include the electric motor, frame , inner circle roll, out circle roll and pressure roll. It can be used to storage the strip steel material from press& carry unit and it could be draw from the center send-off material roll.

       (4)Send-off material device: include frame, guide direction rolls, guide out roll of high or lower place. It can carry the strip steel to shape system and send the carry out material velocity information to electric control device.

       (5)technical parameters:

working style:change circle

advantage:storage material more, no strike to strip steel suface.

         steel coil thickness:1.0-3.5mm

width:100-280mm

storage area:3.0 m2

carry material going velocity:Vmax=240m/min

press& carry roll Dia:Φ180mm

Bearing type:6310

material:40Cr,

out circle level roll:Φ80

bearing type:6306

material :45#,heating treatment

Pinch form:pneumatic  6Mpa

electric motor power of the press & carry:15KW

the electric motor of the accumulator frame : 22KW
