HG32 machine for steel welded pipe
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 90 Days
- Transportation:
- Ocean
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | HEBEI |
|---|---|
| Supply Ability: | 50SETS PER YEAR |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Transportation: | Ocean |

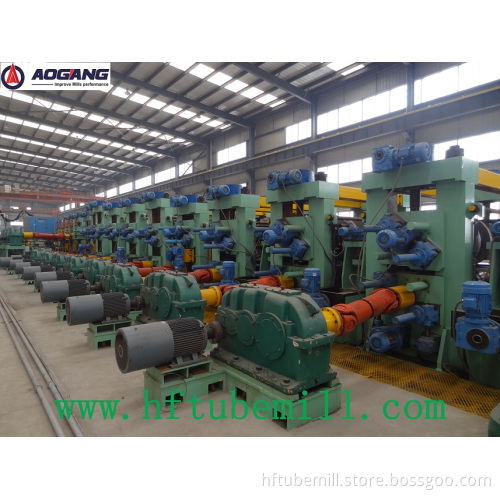

HG32 machine for steel welded pipe
1.pipe O.D(round):13mm-63.5mm(Φ0.5~ Φ2.5inch)
2.Square pipe:10X10mm-50X50mm
3.Wall thickness:0.5-1.8mm
4.length:4-12m
5.Speed:90m/min
6.Main motor:110Kw
7.H.F welder:150Kw
Craft Flow:
uncoiling→shearing and butt welding→material accumulating→flattening→forming system→high frequency induction welding machine→inside and outside burr removing frame→water cooling system→sizing system→leveling system→speed testing→Turkish frame→saw cutting→running out table
Main components:
|
1. |
Uncoiler |
|
2. |
Accumulator |
|
3. |
Shearing and butt welding machine |
|
4. |
Forming machine |
|
5. |
Roller System of Forming |
|
6. |
Seam Guide |
|
7. |
High Frequency Induction Welding Machine |
|
8. |
Roller System for Moving |
|
9. |
Burr Removing Frame(Inside and outside) |
|
10. |
Water cooling system |
|
11. |
Sizing machine |
|
12. |
Roller System of Leveling |
|
13. |
Speed Testing Wheel |
|
14. |
Turkish Frame |
|
15. |
Auto flying saw controlled by Computer |
|
16. |
Run-out table |
|
17. |
Electric control Equipment18 |
|
18 |
High frequency welding machine |
|
|
|
