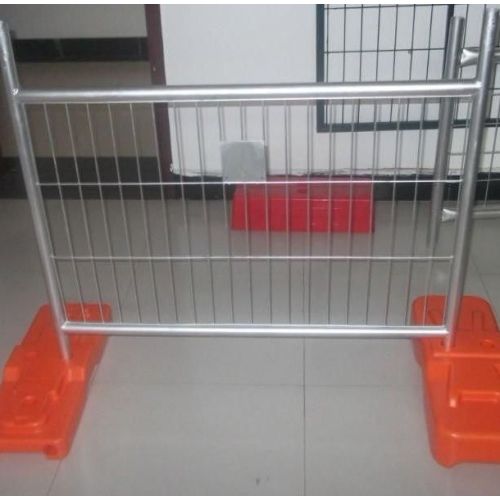

Hot Dipped Galvanized Welded Mesh Temporary Fence

Hot Dipped Galvanized Welded Mesh Temporary Fence

The temporary fence panels usually stand 2100mm high and 2400mm wide. These panels and mesh are hand welded with superior quality 4.0mm mild steel wire for optimum strength and are hot dipped galvanized for durability.
when used in conjunction with temporary fence plastic feet (infilled with concrete) and clamps.

The most popular specification

Panel Size:	2400mm(L) x 2100mm(H)
Frame:	32mm O.D. pipes
Infill Mesh:	4mm horizontal, 4mm vertical 150mm x 60mm spacing
Weight:	24kgs
Finish:	Hot Dipped Galvanized conforming to Australian Standard - 42 Microns
Accessory	Plastic feet & clamp & stay(optional)

Other wire diameters are also available upon customers` specific requirements.

There are many color options of plastic feet for you to choose, like red, orange, pink, etc.

Material: Low Carbon Steel Wire
Wire Diameter: 3.5mm, 4.0mm
Panel Size(HxL): 2100x2400mm, 1800x2400mm, 1800x2500mm.
Infill Mesh Opening: 60 x 150mm, 50x150mm, 75x75mm.
Frame Pipe: 25mm, 32mm, 42mm, 48mm(1.5mm, 2.0mm thickness)

2. Temporary Fence Panel

1>Anti -climb mesh infill
2>360° Weld between the vertical & horizontal pipe
3>Horizontal pipe ends crimped for increased strength.
4>Above Industry Benchmark in thickness of galvanizing
5>Easy to install and to handle

3. Temporary Fence Blow Molding feet
Are aslo known as temporary fence block, fence base and plastic block, which are made of DHPE, weight about 30kg.
Common Dimensions: 600mm x 220mm x 150mm
Thickness of bolck: 2.
Hole Diameter: OD28mm, 25mm, 32mm, 42mm, 48mm and more

Product Description :

Product Picture:

We also produce chain link fence, welded mesh, cattle fence, razor barbed wire, corner bead, any inquiry, tell me.
