Automobile VITON/FKM/FPM Rubber O Ring Seal
- Payment Type:
- L/C, T/T, Paypal, Western Union, WeChat
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Tianjin, Qingdao, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 pcs/day |
| Supply Ability: | 10000 pcs/day |
| Payment Type: | L/C,T/T,Paypal,Western Union,WeChat |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | ISO 9001/ISO/TS 16949 |
| HS Code: | 4016931000 |
| Transportation: | Ocean,Land,Air |
| Port: | Tianjin,Qingdao,Shanghai |

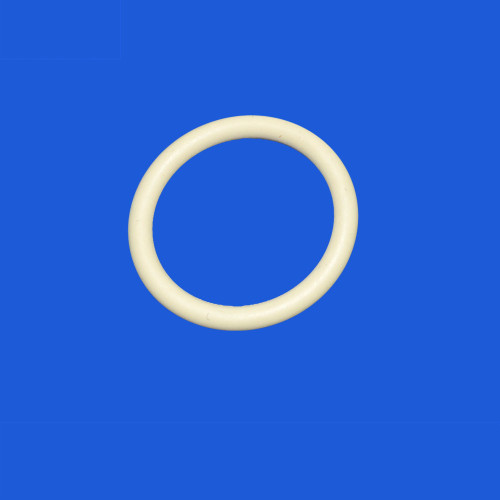

Viton/ FKM Rubber O Rings
VITON
Rubber Flat Gasket Auto Parts has excellent chemical resistance,
resistance to most of the oil and solvent, weather resistance and ozone
resistance; poor cold resistance, the general use of temperature range
of -20 ~ 250 ℃. Special formula can withstand low temperature to -40 ℃.
Advantage
FKM Rubber Ring
*Welcome to our web: www.ibgchina.com
FPM Rubber Rectangle Flat Gasket Seals Ring.
1,Excellent High Temperature Resistance
2. Excellent Abrasion-Resistance
3,Excellent Oil Resistance
4.Excellent Weathering Resistance
5.Excellent Ozone Resistance
6.Good Water Resistance
Disadvantage
1.Poor Low Temperature Resistance
2.Poor Oxygenated-Solvent Resistance
Temperature -15℃~200℃ , -40℃~200℃(special formula)
Application
1.For Auto
2.For Aerospace
3.For Electronic Products
•Best Seals can supply custom parts in virtually any material.
•Professional engineerer team help with the material selection process.
•Custom materials to meet specific color, fluid resistances, or physical properties.
•Prototyping of experimental designs.
Viton O Ring Seals Size
AS 568 Standard size, with cross section, 1.78mm, 2.62mm, 3.53mm, 5.33mm, 6.99mm
JIS B2401 Standard size,with cross section, 1.90mm, 2.40mm, 3.10mm, 3.50mm, 5.70mm, 8.40mm
GB3452.1 Standard size, with cross section, 1.80mm, 2.65mm, 3.55mm, 5.30mm, 7.00mm
Metric Size, with cross section, 1.00mm, 1.50mm, 2.00mm, 2.50mm, 3.00mm, 3.50mm, 4.00mm, 4.50mm, 5.00mm, 5.50mm, 6.00mm, 7.00mm, 8.00mm, 10.00mm, 12.00mm
Our factory
We offer all kinds of rubber molded parts in both small and large quantities. Like o-rings, rubber grommets, rubber bellows, rubber bumper, rubber plugs, gasket, etc. for usage in various industries. We not only supply the parts with standard specifications, but also produce the molded parts as per our customers' drawings and samples.
What kind of information do we need?
Let share as following:
The below info could help to check accurate price:
1. Material:
"Common Material Performance List" could be sent for reference.
If still not sure, suitable material could be suggested according to WORKING CONDITION,
for example: working temp. and working medium ( oil, seawater, solvent and so on)
2. SIZE:
Drawing is better, if no, welcome to send SAMPLE to us,
then we will measure it by professional equipment--Optical Projector, and make 3D drawing for you.
3. Hardness & Color:
Hardness could be suggested by your sample or working pressure, any color is welcome.
4. Qty:
Any quantity is welcome, we like to along with you about the NEW PRODUCTS from DESIGN to FINISHED.
5. Other special request:
Precision, compression set, elongation, and so on.
How to select the right material
It's important to select the right rubber material for the applicaiton
and the environment. Most rubber materials will have the flexibility to
be used in rubber bellows applications - Beike Sealing. can work with
you to identify the best, most cost effective material for your
application.
What medium will contact when using, oil, chemicals...?
What is application temperature?
Dynamic seal or static seal?
Surface seal or shaft seal?
*Drawings, photos and samples are welcomed.
*We can produce the product according to your requirement or samples.
*Any questions or need more information, please feel free to contact with us.
*We are looking forward to have a good cooperation with you.
*welcome to visit our factory
QUICK DELIVERY TIME
1). Products in stock, delivery time is 1 workday;
2). Products out of stock, and mold in stock, delivery time is 5~7 workdays;
3). Products out of stock, and mold out of stock, delivery time is 10~15 workdays.
Remark: Delivery time is also subject to quantity.
SHIPPING TERMS
1). By Express ; 2). By Air; 3). By Sea.
Payment terms:
Pay by Cash, Credit Card, T/T, Paypal and Western Union, all is welcome.
Packaging Details:
PE bag inside, Carton outside, then Pallet. All packaging are signed our logo. If any customized request, welcome.
|
|
|
|
