FVMQ Fluorosilicone Rubber Silicone O Ring

1:Available place: FVMQ Rubber O Ring are widely used in automobile, electrical appliances, building vibration isolation and other industry. For example:air blower, water pump, instrument, measuring of ships and so on.

2:Main performance: Our FVMQ O Ring are produced for customer's requirements  and widely used for resisting oil, high temperature and pressure, aging, special chemical medium. They also have these characteristics: acid and alkali bearable, high insulation to defend the ozone, and so on.

3:Color and shape : Can be changed upon request. In various sizes and colors are available.

4:OEM : Welcome

General Information

1. Use where excellent fluid resistance is needed at extreme low temperature
2. Typically used in aircraft fuel & hydraulic systems
3. Excellent low temperature flexibility
4. Excellent heat resistance
5. Good compression set properties

The Size

AS 568 Standard size, with cross section, 1.78mm, 2.62mm, 3.53mm, 5.33mm, 6.99mm

JIS B2401 Standard size,with cross section, 1.90mm, 2.40mm, 3.10mm, 3.50mm, 5.70mm, 8.40mm

GB3452.1 Standard size, with cross section, 1.80mm, 2.65mm, 3.55mm, 5.30mm, 7.00mm

Metric Size, with cross section, 1.00mm, 1.50mm, 2.00mm, 2.50mm, 3.00mm, 3.50mm, 4.00mm, 4.50mm, 5.00mm, 5.50mm,  6.00mm, 7.00mm, 8.00mm, 10.00mm, 12.00mm

The section drawing

Applications

1. Fuel injectors
2. Quick connects
3. Fuel pumps
4. Fuel tank seals
5. Any seal application dealing with fuels at low temperatures

Limitations

Due to limited physical strength, poor abrasion resistance, and high friction characteristics, Fluorosilicone elastomers are not generally recommended for dynamic sealing. They are predominately designed for static sealing use. They are also not recommended for exposure to brake fluids, hydrazine, or ketones.

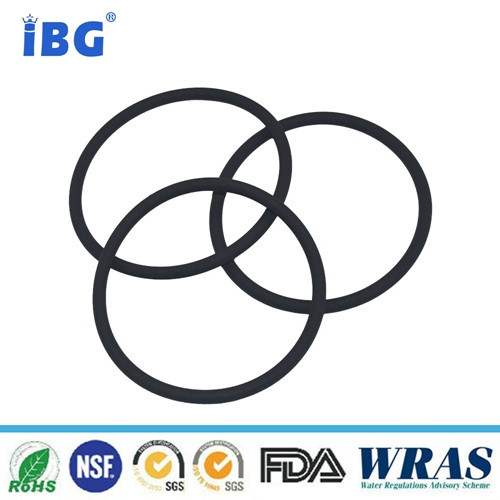

FVMQ O Ring Photo
