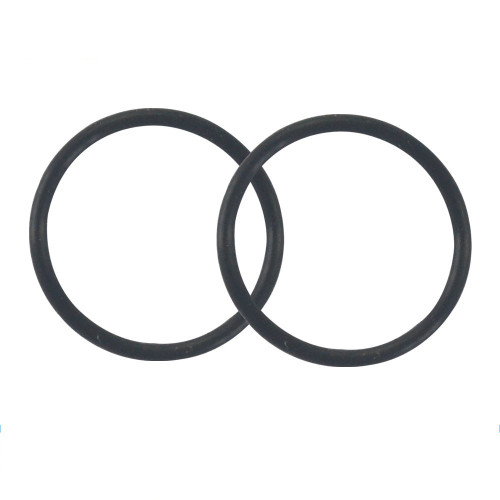

Medical Grade Silicone Rubber O Ring Seals Gasket
- Payment Type:
- L/C, T/T, Paypal, Western Union, WeChat
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 300 Piece/Pieces
- Min. Order:
- 300 Piece/Pieces
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Tianjin, Qingdao, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 pcs/day |
| Supply Ability: | 10000 pcs/day |
| Payment Type: | L/C,T/T,Paypal,Western Union,WeChat |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | ISO 9001/ISO/TS 16949 |
| HS Code: | 4016931000 |
| Transportation: | Ocean,Land,Air |
| Port: | Tianjin,Qingdao,Shanghai |
Medical And Food Grade Silicone Rubber O Ring Seals could be made by silicone because of it's safety and heat resistance, it can also be made to many colors so that can be marked clearly.
Silicone rubber parts has excellent heat resistance,cold resistance, ozone resistance, resistance to
atmospheric aging. Has a good electrical insulation performance. Tensile
strength is less than the average rubber and not oil resistance.
Operating temperature: -60 to 230 ° C.Good elasticity and good
compression, good resistance to neutral solvents, good insulation, good
heat dissipation.Applicable to high and low temperature high-speed
rotary seal and all kinds of food machinery seal.It is not recommended
for use in most concentrated solvents, oils, concentrated acids and
diluted sodium hydroxide.
Silicone O Rings Sizes
Metric
Size:The cross section of metric size : 1.00mm, 1.50mm, 2.00mm,
2.50mm, 3.00mm, 3.50mm,4.00mm, 4.50mm, 5.00mm, 5.50mm, 6.00mm, 7.00mm,
8.00mm,10.00mm, 12.00mm
AS 568 Standard size:with cross section, 1.78mm, 2.62mm, 3.53mm, 5.33mm, 6.99mm
JIS B2401 Standard size:with cross section, 1.90mm, 2.40mm, 3.10mm, 3.50mm, 5.70mm, 8.40mm
GB3452.1 Standard size:with cross section, 1.80mm, 2.65mm, 3.55mm, 5.30mm, 7.00mm
REMARK: Nonstandard Sizes Available
HOW TO DESCRIBE THE SIZE? THE DRAWING AS FOLLOWING: OD=ID+2*CS
The wide application fields of our rubber products, including household,
automotive, aerospace, machinery, petrochemical, medical, food,
electronic, national defense, military industry equipment, etc.
IBG company`s products include SILICONE, NBR, HNBR, EPDM, FKM, FFKM, IIR, PTFE, CR and so on.
O-ring,gasket,washer,valve,bellow,strip,cord,cover,stopper,plug,piston and lots of other rubber products can be provided by IBG company.
What kind of information do we need?
Let share as following:
The below info could help to check accurate price:
1. Material:
"Common Material Performance List" could be sent for reference.
If still not sure, suitable material could be suggested according to WORKING CONDITION,
for example: working temp. and working medium ( oil, seawater, solvent and so on)
2. SIZE:
Drawing is better, if no, welcome to send SAMPLE to us,
then we will measure it by professional equipment--Optical Projector, and make 3D drawing for you.
3. Hardness & Color:
Hardness could be suggested by your sample or working pressure, any color is welcome.
4. Qty:
Any quantity is welcome, we like to along with you about the NEW PRODUCTS from DESIGN to FINISHED.
5. Other special request:
Precision, compression set, elongation, and so on.
*Drawings, photos and samples are welcomed.
*We can produce the product according to your requirement or samples.
*Any questions or need more information, please feel free to contact with us.
*We are looking forward to have a good cooperation with you.
*welcome to visit our factory.
QUICK DELIVERY TIME
1). Products in stock, delivery time is 1 workday;
2). Products out of stock, and mold in stock, delivery time is 5~7 workdays;
3). Products out of stock, and mold out of stock, delivery time is 10~15 workdays.
Remark: Delivery time is also subject to quantity.
SHIPPING TERMS
1). By Express ; 2). By Air; 3). By Sea.
Payment terms:
Pay by Cash, Credit Card, T/T, Paypal and Western Union, all is welcome.
Packaging Details:
PE bag inside, Carton outside, then Pallet. All packaging are signed our logo. If any customized request, welcome.
