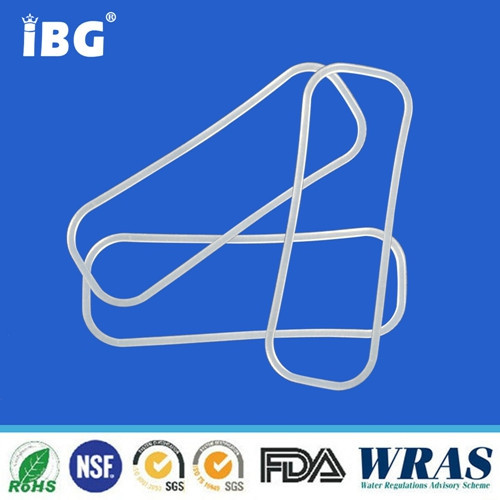

rectangle shape colored rubber seal in water

rectangle shape colored rubber seal in water

Shijiazhuang Beike Sealing Technology Co.,Ltd is a large-scale professional manufacturing company,specialized in kinds of rubber rings , seals, gaskets. We focus on custom rubber molded parts for your sealing for about 10 years. Your requried any rubber parts, pls feel free to contact us.

Viton Ring Size

It is shown: ID, OD and Height

Flat Washer Material

NBR, SILICONE, EPDM, HNBR, FFKM, FKM, FVMQ, BUNA, CR...all is available. Flat washer gasket material is subject to real working conditon, including application temperature, medium contacting, uses...If you are not sure the material, pls kindly offer working condition, we will help suggest.

Different Material Application Temperature, see below,

1. NBR: from -25~100 degree
2. FKM: from -15~200 degree
3. EPDM: from -55~150 degree
4. SILICONE: from -60~230 degree
5. CR: from -40~120 degree
6. FFKM: from -15~300 degree
7. HNBR: from -40~150 degree


Progress Flow Chart

a.  Material inspection:  Testing for all raw materials before storage, and provide the raw material of relevant reports, report and raw material properties with comparison, two of reported values, can storage.

b.  Mold Inspection:  Die Mold development finished or after cleaning ,we will check the full size of the mold ,ensure quality for each cavity's product.

c.  Product Inspection:  During production ,Inspectors will check semi-finished products , ensure product process and make the defective rate control in a reasonable range.

d.  Quality Control:  Quality Department will check product appearance for each batch.

e.  Product Full Inspection:  Optical Sorting Machine ensure products  appearance ,Size 100% qualified.
