Customized Rubber X Ring gasket

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Incoterm:: FOB, CFR, CIF

Min. Order:: 200 Piece/Pieces

Min. Order:: 200 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: Xingang

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000000pcs/month
Supply Ability:	10000000pcs/month
Payment Type:	L/C,T/T,Paypal,Western Union
Incoterm:	FOB,CFR,CIF
Certificate:	ISO 9001/ISO/TS 16949
HS Code:	4016931000
Transportation:	Ocean,Land,Air
Port:	Xingang

Product Description

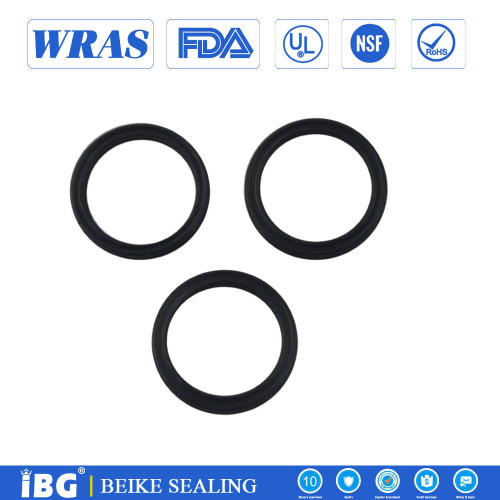

Customized Rubber X Ring gasket

Rubber X-Ring, also called Star-ring .Because the cross section just like the star shape. X-Ring is commonly used in the hydraulic cylinder seals. because it is a four lip seal, can have the effect of two-way sealed, so The sealing effect is very good.In reciprocating applications, the X-Ring four-lobed design prevents spiral failure and in rotary applications, it prevents the seal from bunching and failing.

What's Each Rubber's Typical Features ?

NBR Rubber Features:

Nitrile rubber (NBR, Buna-N) provides excellent resistance to petroleum oils as well as mineral and vegetable oil. Nitrile rubber also offers strong resistance to heat aging - often a key advantage over natural rubber.

Nitrile rubber performs well in carburetor and fuel pump diaphragms, aircraft hoses, seals and gaskets as well as oil-lined tubing. Due to its versatility, nitrile is used in applications involving not only oil and fuel resistance, but those applications requiring resistance to heat, abrasion, water, and gas permeability.

Silicon Rubber Features:

Silicone rubber offers great resistance in extreme temperatures, being able to operate normally from -100°C to +250°C (-150°F to +480°F). At extreme temperatures, the tensile strength, elongation, tear strength and compression set can be far superior to conventional rubbers. This makes it one of the materials of choice in many extreme environments.

Caution: Generally, silicones are attacked by most concentrated solvents, oils, acids and dilute sodium hydroxide.

EPDM Rubber Features:

EPDM rubber Features:

EPDM rubber is a high density rubber primarily used for outdoor applications. It has dynamic and mechanical properties between natural rubber and synthetic rubber.

Do not use EPDM if continual contact with petroleum based products is required.

Not recommended for usage in food applications or those that are exposed to aromatic hydrocarbons.

Hydrogenated Nitrile Butadiene Rubber (HNBR) Features:

Hydrogenated Nitrile Butadiene Rubber (HNBR), also known as Highly SaturatedNitrile (HSN), is special class of nitrile rubber (NBR) that has been hydrogenated to increase saturation of the butadiene segment of the carbon polymer backbone. Subsequent improvements to the material properties, over that of a nitrile rubber (NBR), include greater thermal stability, broader chemical resistance, and greater tensile strength.

HNBR is classified by ASTM as a DH-type polymer. This classification indicates 150ºC service temperature as well as less than 30% swell in IRM 903 oil. HNBR can be formulated to meet application temperatures ranging between -50°C and 165ºC.

Neoprene Rubber Features:

Neoprene Rubber Features:

Neoprene Rubber, also known as neoprene polychloroprene, is an extremely versatile synthetic rubber with more than 75 years of proven performance.

In the automotive world, neoprene is used for many under-the-hood and underbody parts that require a reasonably priced, mid-performance polymer with a good all-around balance of performance properties.

How to select the material?

Working in various medium based on different material.

According to the medium and temperature to determine the material.

We could provide professional technical support

Product Image
