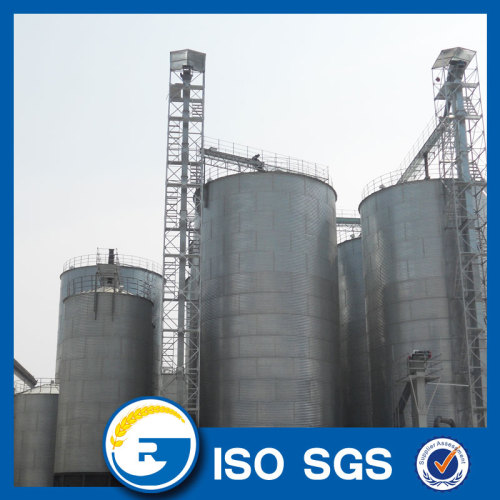

500 tonns Steel Corn Silo

500 tonnes Steel Corn Silo

There're roof vents, manhole, outside ladders, inside ladders, square silo door and platform with the Steel corn silo. The silo roof and silo body plates are made of hot dip galvanized sheets, zinc coating by 275g/m2.Steel silo Ventilation system includes fan, ventilation pipes/planks, circular ducts(this part could be painted or galvanized, for hopper bottom sheets only)

Technical Parameters :

Silo bottom:  Hopper bottom silo
Silo capacity: 500 tonnes steel silo
Diameter:  8.3 meter
Silo Volume: 714 CBM
Auxiliary System:
1. Ventilation System
2. Temperature Sensor System
3. Fumigation System
4. Thermal Insulation System
Discharge:  scraper conveyor

Silo is Hot-galvanized steel sheets bolted ,  From top to Bottom .

Wall sheets:

Wall Sheets are connected together with high strength bolts to establish the ring of the silos.

wall sheets are in 275gr/m2 standarts . This difference not only prolongs the life of the coating,

but also provides protection against external factors.

What is the processing steps for the steel silo wall sheets ?

Silo each part description :

1. Catwalk on the Silo Top:

Safety constructions are recommended to be used in complete grains storage systems.

These constructions are elevator towers, catwalks and catwalk supports.

All can be produced both painted and galvanized according to customer's request.

2. Steel Storage silo Roof :

Roof is made up of radiated beam, roof cover board, tension ring, ventilator scoop, roof cap, etc.

The space age construction technology, which is adopted in the design of the silo framework,

can ensure the stability of silo under the large span. There is a guardrail around the silo

eaves and there is also a manhole on top of the roof.

3.500 Ton Grain Silo Bottom :

--------Hopper bottom /  Conical bottom :

 Hopper silos lower part has 45° and 60° degree angle and this allows the

grain to flow easily with its own fluidity.
