High Intensity Roller Magnetic Separator

High Intensity Roller Magnetic Separator

$3000.00 - $50000.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air, Express

Port:: Tianjin, Shanghai, Qingdao

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	60 Sets/Per Month
Supply Ability:	60 Sets/Per Month
Payment Type:	L/C,T/T,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FCA,CIP,Express Delivery
Certificate:	CE
HS Code:	8474209000
Transportation:	Ocean,Land,Air,Express
Port:	Tianjin,Shanghai,Qingdao

Product Description

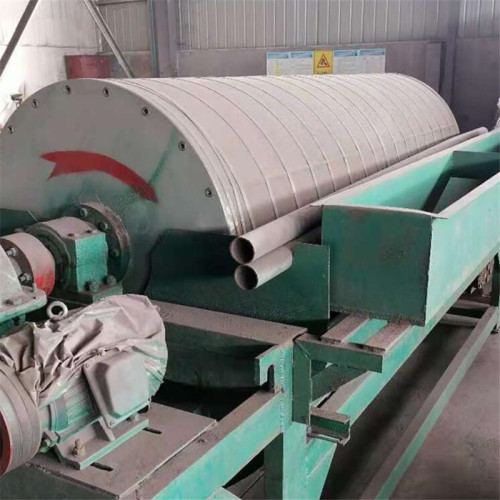

High Intensity Roller Magnetic Separator

Product Description

The High Intensity Roller Magnetic Separator is suitable for wet magnetic separation of magnetic materials such as magnetite, pyrrhotite, roasted ore, and ilmenite in mines; Mining Magnetic Separator is also used for the removal of mixed magnetic minerals from non-magnetic materials such as coal, non-metallic ores and building materials and the recovery of magnetic heavy medium in coal preparation operations; the concentration of low-concentration pulp in iron ore and the enrichment of magnetite; used to remove ferromagnetic impurities in non-metallic ores; Remove magnetic or weakly magnetic mineral processing and their conjoined bodies to prevent clogging of magnetic media. We also provide Flotation Machine, Magnetic Separator, Hydrocyclone.

Product Parameters

Type	Roller Diameter(mm)	Roller Length(mm)	Roller Speed(r/min)	Feed Particle Size(mm)	Throughput(t/h)	Power(kw)
HT6012	600	1200	<35	2-0	10-20	1.5
HT6018	600	1800	<35	2-0	15-30	2.2
HT7518	750	1800	<35	2-0	20-45	2.2
HT9018	900	1800	<35	3-0	40-60	3
HT9021	900	2100	<35	3-0	45-60	3
HT9024	900	2400	<28	3-0	45-70	4
HT1018	1050	1800	<20	3-0	50-75	5.5
HT1021	1050	2100	<20	3-0	50-100	5.5
HT1024	1050	2400	<20	3-0	60-120	5.5
HT1218	1200	1800	<18	3-0	80-140	5.5
HT1224	1200	2400	<18	3-0	85-180	7.5
HT1230	1200	3000	<18	3-0	100-180	7.5
HT1530	1500	3000	<14	3-0	170-280	11
