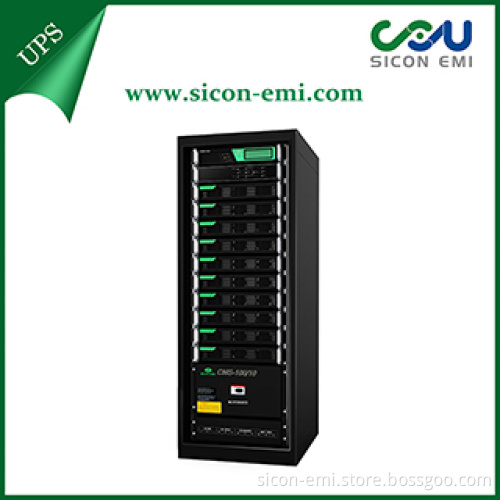

Sicon Industrial UPS 50kva 100kva ups price for elevators, 10~100kva
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 28 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Tianjin
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T |
|---|---|
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air |
| Port: | Tianjin |
Basic Information
Modular UPS, three phase, online UPS, high frequency, PMW double conversion
parallel UPS, N+X redundancy, hot swap modules
UPS Power: 100KVA
Load power: 90KW
Battery: optional battery pack
Back up time: according to load capacity
Overview
CMS UPS units are non-isolated, industrial level, green UPS, adopting advanced modular power protection concept. CMS Modular architecture can scale power as demand grows or as higher levels of availability are required. CMS UPS is industry-leading efficiency, availability, and performance for small, medium, and large data centers and mission critical environments.
Feature
· Rational redundant structure
· UPS module: 10 kVA, 25 kVA, 50 kVA; System: 50kVA, 100 kVA, 150kVA, 250 kVA, 350 kVA, 500 kVA, 800 kVA.
· Great performance index
· overall efficiency ≥ 95%(AC-AC), inverter efficiency ≥ 98%(DC-AC), THDI ≤ 3%, and input PF ≥ 0.99
· N+X module-level redundancy UPS System
· Multi-level decentralized control technology and Master-slave synchronization in sequency control which result in eliminate system failure bottleneck
· Each module automatically even shares the input and output current, all UPS modules share batteries
· Battery management:
· Battery discharge management, auto-transfer between floating and even charging, temperature compensation
· Space-saving high density design, Rack-based for agility and aesthetics
· Monitor Function
· C/S-Oriented Architecture SICON Software which is available to monitor multiple UPS up to 600 sets;
· B/S-Oriented Architecture which is available to check via IE
· Standard configuration
· Manual maintenance bypass, SPD(Class C), RS232, RS485/RS422 Communication ports, Remote monitor software, day contacts
· Optional configuration
· EPO, Input/output Transformer, Battery Bank, IPDS(Intelligent Power Distribution System)
Application
Small server room, network, bank, security, transportation, broadcast&TV network, HealthCare, Communication, Finance.
