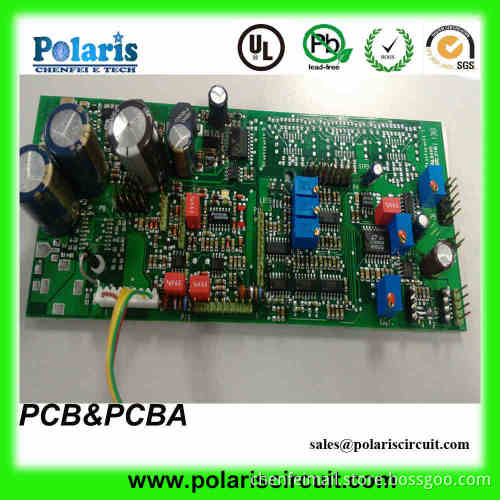

prototype pcb assembly in china
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Tianjin
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR |
| Transportation: | Ocean,Land,Air |
| Port: | Tianjin |
PCBA capacity
|
|
Item |
Specification |
|
1 |
Type of Assembly |
SMT Assembly (Surface-mounting technology) |
|
|
|
Thru-hole Assembly (Through-hole soldering Technology) |
|
2 |
Solder Type |
Water soluble solder paste, lead free |
|
3 |
Component |
Component sourcing service |
|
4 |
Min. IC Pitch |
0.30mm |
|
5 |
Foot Pin |
SO, SOP, SOJ, TSOP, TSSOP, QFP, BGA and U-BGA |
|
6 |
Min. Chip Placement |
1005 |
|
7 |
Max. PCB Size |
600mm*400mm |
|
8 |
Min. PCB Thickness |
0.35mm |
|
9 |
Max. BGA Size |
74mm*74mm |
|
10 |
Max. Ball Pitch |
1mm-3mm |
|
11 |
Max. Ball Diameter |
0.4mm-1mm |
|
12 |
QFP Lead Pitch |
0.38mm-2.54mm |
|
13 |
Package |
Inner package: anti-static bubble Bag |
|
|
|
Outer Package: carton box |
|
14 |
Certificate |
PCB Assembly with UL, RoHS approval |
Capacity
l Small quantities and quick turns available.
l Housing Assembly, Cable Assembly
l ISO 9001:2008 certified.
l ROHS & Lead-Free pcb assembly.
l Consigned Components or Turnkey.
l Single or double-sided mixed technology pcb assembly.
l Capability to handle virtually any device including all types of BGAs, QFNs, DFNs, CSPs and SONs.
l BGA, Micro-BGA installation and rework with 100% X-Ray Inspection, Automated Optical Inspection.
Shipping
v By DHL, UPS, FedEx, TNT.
v FOB,CIF,DDU,DDP is ok
v Your account is also appreciated.
v Please also indicate whether you need insurance for goods.
Package
|
Packaging Details |
Anti - static bag, vacuum packing,corrugated export carton |
