A234 carbon steel Reducing cross
  • A234 carbon steel Reducing cross
  • A234 carbon steel Reducing cross
  • A234 carbon steel Reducing cross
A234 carbon steel Reducing cross
A234 carbon steel Reducing cross
A234 carbon steel Reducing cross

A234 carbon steel Reducing cross

Get Latest Price
Payment Type:
L/C, T/T
Incoterm:
FOB, CFR, CIF
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Delivery Time:
15 Days
Transportation:
Ocean, Land, Air, DHL/TNT
Port:
Tianjin New Port, Zhengzhou Train Station, Beijing Air Port
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Cangzhou,China
Productivity: 1000pcs/month
Supply Ability: 1000pcs/month
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
Certificate: ISO/API/CE
HS Code: 73079300
Transportation: Ocean,Land,Air,DHL/TNT
Port: Tianjin New Port,Zhengzhou Train Station,Beijing Air Port
Product Description
Product Description


The reducing cross also is called unequal pipe cross , it is the pipe cross which the four branch ends are not in the same diameters.

We are manufacturer of Reducing cross and supply high quality Reducing cross in both large and small quantities worldwide & offer you the best prices in the market.

We have a team of experienced professionals with years of experience in manufacturing.




ASME B16.9 Butt weld Reducing Cross Dimensions
Reducing cross dimention
Nominal Diameter Outside Diameter Center to End
D1 D2
DN NPS Series A Series B Series A Series B C M
15×15 1/2×1/2 21.3 18 21.3 18 25 25
15×10 1/2×3/8 21.3 18 17.3 14 25 25
15×8 1/2×1/4 21.3 18 13.7 10 25 25
20×20 3/4×3/4 26.9 25 26.9 25 29 29
20×15 3/4×1/2 26.9 25 21.3 18 29 29
20×10 3/4×3/8 26.9 25 17.3 14 29 29
25×25 1×1 33.7 32 33.7 32 38 38
25×20 1×3/4 33.7 32 26.9 25 38 38
25×15 1×1/2 33.7 32 21.3 18 38 38
32×32 1.1/4×1.1/4 42.4 38 42.4 38 48 48
32×25 1.1/4×1 42.4 38 33.7 32 48 48
32×20 1.1/4×3/4 42.4 38 26.9 25 48 48
32×15 1.1/4×1/2 42.4 38 21.3 18 48 48
40×40 1.1/2×1.1/2 48.3 45 48.3 45 57 57
40×32 1.1/2×1.1/4 48.3 45 42.4 38 57 57
40×25 1.1/2×1 48.3 45 33.7 32 57 57
40×20 1.1/2×3/4 48.3 45 26.9 25 57 57
40×15 1.1/2×1/2 48.3 45 21.3 18 57 57
50×50 2×2 60.3 57 60.3 57 64 64
50×40 2×1.1/2 60.3 57 48.3 45 64 60
50×32 2×1.1/4 60.3 57 42.4 38 64 57
50×25 2×1 60.3 57 33.7 32 64 51
50×20 2×3/4 60.3 57 26.9 25 64 44
65×65 2/1/2×2.1/2 73.0 76 73.0 76 76 76
65×50 2/1/2×2 73.0 76 60.3 57 76 70
65×40 2/1/2×1.1/2 73.0 76 48.3 45 76 67
65×32 2/1/2×1.1/4 73.0 76 42.4 38 76 64
65×25 2/1/2×1 73.0 76 33.7 32 76 57
80×80 3×3 88.9 89 88.9 89 86 86
80×65 3×2.1/2 88.9 89 73.0 76 86 83
80×50 3×2 88.9 89 60.3 57 86 76
80×40 3×1.1/2 88.9 89 48.3 45 86 73
80×32 3×1.1/4 88.9 89 42.4 38 86 70
90×90 3.1/2×3.1/2 101.6 - 101.6 - 95 95
90×80 3.1/2×3 101.6 - 88.9 89 95 92
90×65 3.1/2×2.1/2 101.6 - 73.0 76 95 89
90×50 3.1/2×2 101.6 - 60.3 57 95 83
90×40 3.1/2×1.1/2 101.6 - 48.3 45 95 79
100×100 4×4 114.3 108 114.3 108 105 105
100×90 4×3.1/2 114.3 108 101.6 - 105 102
100×80 4×3 114.3 108 88.9 89 105 98
100×65 4×2.1/2 114.3 108 73.0 76 105 95
100×50 4×2 114.3 108 60.3 57 105 89
100×40 4×1.1/2 114.3 108 48.3 45 105 86
125×125 5×5 141.3 133 141.3 133 124 124
125×100 5×4 141.3 133 114.3 108 124 117
125×90 5×3.1/2 141.3 - 101.6 - 124 114
125×80 5×3 141.3 133 88.9 89 124 111
125×65 5×2.1.2 141.3 133 73.0 76 124 108
125×50 5×2 141.3 133 60.3 57 124 105
150×150 6×6 168.3 159 168.3 159 143 143
150×125 6×5 168.3 159 141.3 133 143 137
150×100 6×4 168.3 159 114.3 108 143 130
150×90 6×3.1/2 168.3 - 101.6 - 143 127
150×80 6×3 168.3 159 88.9 89 143 124
150×65 6×2.1/2 168.3 159 73.0 76 143 121
200×200 8×8 219.1 219 219.1 219 178 178
200×150 8×6 219.1 219 168.3 159 178 168
200×125 8×5 219.1 219 141.4 133 178 162
200×100 8×4 219.1 219 114.3 108 178 156
200×90 8×3.1/2 219.1 - 101.6 - 178 152
250×250 10×10 273.0 273 273.0 273 216 216
250×200 10×8 273.0 273 219.1 219 216 203
250×150 10×6 273.0 273 168.3 159 216 194
250×125 10×5 273.0 273 141.3 133 216 191
250×100 10×4 273.0 273 114.3 108 216 184
300×300 12×12 323.9 325 323.9 325 254 254
300×250 12×10 323.9 325 273.0 273 254 241
300×200 12×8 323.9 325 219.1 219 254 229
300×150 12×6 323.9 325 168.3 159 254 219
300×125 12×5 323.9 325 141.3 133 254 216
350×350 14×14 355.6 377 355.6 377 279 279
350×300 14×12 355.6 377 323.9 325 279 270
350×250 14×10 355.6 377 273.0 273 279 257
350×200 14×8 355.6 377 219.1 219 279 248
350×150 14×6 355.6 377 168.3 159 279 238
400×400 16×16 406.4 426 406.4 426 305 305
400×350 16×14 406.4 426 355.6 377 305 305
400×300 16×12 406.4 426 323.9 325 305 295
400×250 16×10 406.4 426 273.0 273 305 283
400×200 16×8 406.4 426 219.1 219 305 273
400×150 16×6 406.4 426 168.3 159 305 264
450×450 18×18 457 480 457 480 343 343
450×400 18×16 457 480 406.4 426 343 330
450×350 18×14 457 480 355.6 377 343 330
450×300 18×12 457 480 323.9 325 343 321
450×250 18×10 457 480 273.0 273 343 308
450×200 18×8 457 480 219.1 219 343 298
500×500 20×20 508 530 508 530 381 381
500×450 20×20 508 530 457 480 381 368
500×400 20×20 508 530 406.4 426 381 356
500×350 20×20 508 530 355.6 377 381 356
500×300 20×20 508 530 323.9 325 381 346
500×250 20×20 508 530 273.0 273 381 333
500×200 20×20 508 530 219.1 219 381 324

GENERAL NOTES: All dimensions are in millimeters.
(a). Outlet dimension M for NPS 26(DN 650) and large is recommended but not required.
(b). Dimensions applicable to crosses NPS 24(DN 600) and smaller.



Popular cross


Seamless Pipe Cross

Stainless Steel Pipe Cross

Galvanized Steel Pipe Cross

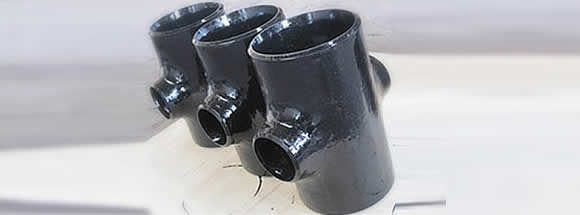

Common types of pipe tee

A pipe tee is a type of fitting that has a T shape and is used to join two or more plumbing pipes.
  • Equal Tee (or straight tee), means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee.
  • Reducing Tee is a type of pipe fitting in which the branch port size is smaller than the ports of the run.
  • Barred Tee is used in pipelines that are pigged.
  • Lateral Tee has a 45 degree branch from a pipeline.
  • Pipe Cross is a fitting that used in the place where four pipes meet with the same diameter include:
    • Reducing cross used for connecting four pipes, the main pipes with the same size, but the dimensions of the branch diameter is smaller than the main pipes.
    • Equal cross in the place where four pipes meet with the same diameter.
  • Forged Socket Weld Equal Tee are pipe fittings that be formed mainly by forging.

Materials

Carbon steel: ASTM/ASME A234 WPB-WPC
Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
Tee Size

ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
High performance steel: ASTM/ASME A860 WPHY70 42-46-52-60-65

Size range: 1/2 to 72 inches
Pressure: SCH5 to SCH160

Welding Bevel acc. to standards:
  • ASME B16.9, Factory-Made Wrought Steel Butt weld  pipe Fitting
  • ASME B16.28, Buttwelding Short Radius Elbows and Returns
  • ANSI/ASME B16.25, Buttwelding Ends
  • MSS SP-97, Socket Welding, Threaded, and Buttwelding Ends
  • Tolerance For Butt Weld Pipe Fitting

Industrial Processes : Bending, squeezing, pressing, forging, machining and more
