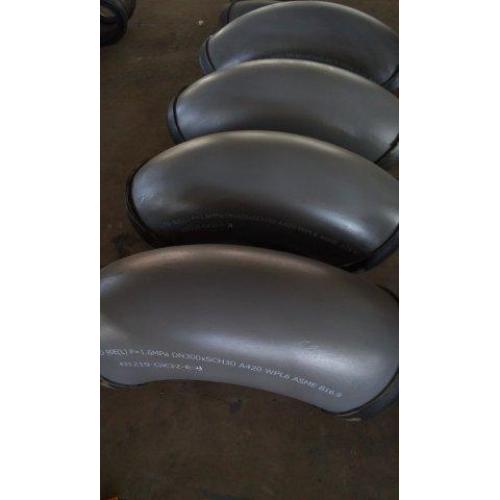

Astm A420 Wpl1 Wpl3 Wpl6 Pipe Fitting
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Delivery Time:
- 20 Days
- Transportation:
- Ocean, Land, Air, Train/TNT/DHL
- Port:
- Zhengzhou Train Station, Wuhan Train Station, Beijing Air Port
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Cangzhou,China |
|---|---|
| Productivity: | 1000pcs/month |
| Supply Ability: | 1000pcs/month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | ISO/CE/API |
| HS Code: | 73079900 |
| Transportation: | Ocean,Land,Air,Train/TNT/DHL |
| Port: | Zhengzhou Train Station,Wuhan Train Station,Beijing Air Port |
Astm A420 Wpl1 Wpl3 Wpl6 Pipe Fitting
Bangdong Supply 180 Deg Elbows,90 Deg Elbows,45 Deg Elbows.We lay special emphasis on the quality of these industrial buttweld pipe fittings and conduct stringent quality control procedure to maintain their exclusive properties for long duration. We use only quality checked metal, which is procured by us from trusted supplier. Our industrial buttweld pipe fittings reflect the perfect combination of sophistication and innovation. Our range of pipe fittings includes steel pipe fittings, copper alloy steel pipe fittings, duplex steel pipe fittings, stainless steel pipe fittings, carbon steel pipe fittings, butt weld elbows, alloy steel pipe fittings, and monel, inconel, incoloy, nickel, hastelloy (All Grades).
Material: ASTM/ASME SA234 Grade WPB.
Pipe Bend
Long radius pipeline bends are used in fluid transportation line which required pigging. Due to their long radius and smooth change of direction, pipe bend has very less pressure drop, and smooth flow of fluid & pig is possible. 3D and 5D Pipe bends are commonly available. Here, D is the pipe size.
Miter Bend
Miter bends are not standard pipe fittings they are fabricated from pipes. Usually, they are preferred for size 10" & above because large size elbow is expensive. Use of miter bend is restricted to the low-pressure water line. Miter bend can be fabricated in 2, 3, & 5 pieces.
Returns – 180 Degree Elbow
Returning elbows are used to make a 180º change in direction. Available in short & long pattern. Returns are used in the heating coil, heat exchanger, tank vent etc.
ASME B16.9 Sch 20, Std Wt, Sch XS, Sch 120, Sch 160 & Sch XXS.
45/90 Degree Long/Short Radius Elbows, Equal/Reducing Tees, Concentric/Eccentric Reducers, Return Bends and End Caps.
Supplied in the Black or Self Colour Condition.
Not only do we stock Self Colour Butt Weld Fittings, but we also have the capability to Sand Blast in-house which enables Midsteel to supply Self Colour Fittings on short lead times.
All other pressure ratings and wall thicknesses not mentioned are available upon request.
What is A420 WPL6 Fittings?
ASTM A420 Grade WPL6 Carbon Steel – Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Low-Temperature Service
This specification covers wrought carbon steel and alloy steel pipe fittings of seamless and welded construction for use in pressure piping and pressure vessel service at low temperatures. Materials shall consist of forgings, bars, plates, seamless or fusion welded tubular products with filler metal added, and shall be produced by open-hearth, basic-oxygen, or electric-furnace process. Forging or forming operations shall be performed by one or a combination of two or more of the following procedures: hammering, pressing, piercing, extruding, upsetting, working, bending, fusion-welding, or machining. All welding shall be completed prior to the austenitizing heat treatment, which shall be executed in the normalized, normalized and tempered, annealed, or quenched and tempered conditions. Steel specimens shall conform to required values of chemical composition, tensile strength, yield strength, elongation, wall thickness, and Charpy V-notch impact value. All fusion-welded butt joints shall undergo radiographic examination, while hydrostatic testing of fittings is not required in this specification. Repair welding shall be permissible for parts made to dimensional standards.
