ASTM A105 Carbon Steel Blind Flanges

ASTM A105 Carbon Steel Blind Flanges

Bangdong Supply Carbon Steel Nipo Flanges,Carbon Steel Threaded Tee,A106 Carbon Steel Seamless Pipes.A Screwed Tee Fitting is used to either combine or split a fluid flow. The most common Screwed Tees have the same inlet and outlet sizes, but 'reducing' Screwed Tees are available as well.The Screwed Elbow Fitting is a pipe fitting installed between two lengths of pipe or tube allowing a change of direction, usually 90° or 45°. The ends can be machined for screwed (usually female), or socketed. When the two ends differ in size, it is called a Reducing or Reducer Elbow.

Most Elbows are available in short radius or long radius of types. The short radius Elbows have a center to end distance equal to the NPS in inches, while the long radius is 1.5 times the NPS in inches.

Quality Standard for Screwed Fittings
High quality Screwed fittings all made and controlled to the relevant standards such as: ASME, ASTM, BS and DIN/WERKSTOFFE.


Sizes Available for Screwed Fittings
Screwed Fittings are available in sizes from 1/8" through to 4".


Dimensions & Pressure Ratings for Screwed Fittings
BS3799 and ANSI B16.11
3000lb through to 9000lb

Sizes Available for Reinforced Branch Outlets
1/4" through to 24"
Dimensions to manufacturers standards.
Sch 10s through to Sch XXS and heavier.


*** Special fittings according to customer drawings. ***

Thread Types
NPT
BSPT
BSPP

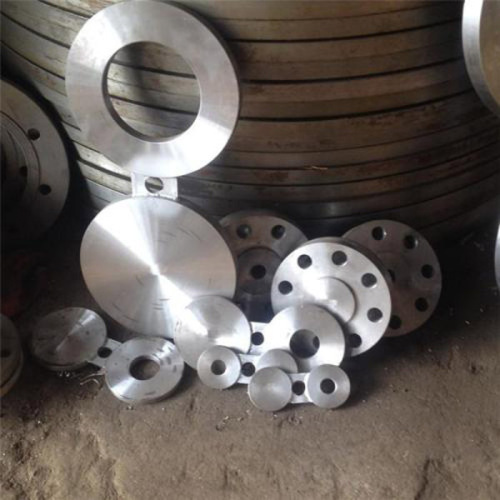

Carbon Steel Blind Flange
Carbon Steel Blind Flange are used for testing the flow of gas or liquid through a pipeline or vessel. It helps to close the end of piping systems or vessel openings. It allows easy access to the pipeline when there is a requirement to work done inside the line. They are used in high pressure applications available in all grades, materials, size and specifications.

Blind pipe flanges are typically provided with a raised face, flat face, or RTJ facing. The standard height is 1/16" when a raised face is required under 400#. The standard height is 1/4".for blind pipe flanges of 400# and above. Seamac Piping Solutions manufactures blind pipe flanges in various materials such as stainless steel, carbon steel, alloy steel and monel according to the various standard ANSI/ASME/ASTM according to the customer requirement.

Product Features:

• Corrosion resistant
• Accurate dimensions
• Can sustain high pressure & temperature load
• Rust proof finish
• Smooth transition from flange thickness to pipe
• Ensure excellent stress distribution
• Can be easily radio graphed for flaw detection
• Can be easily welded to a pipe or fitting with a single full penetration

Product Usage & Application:

• Usefule in Paper & Pulp Companies
• Usefule in High Pressure Applications
• Usefule in Oil and Gas Industry
• Usefule in Chemical Refinery
• Usefule in Pipeline
• Usefule in High Temperature Application
• Usefule in Water Pipe Line
• Usefule in Nuclear Power Plants
• Usefule in Food Processing and Dairy Industries
• Usefule in Boiler & Heat Exchangers

Standard Specification:

Material & Grade :

We have stock for :

Blind Flange
Ansi Blind Flange
Stainless Steel Blind Flange
Raised Face Blind Flange
Slip On Flange
Slip On Weld Flange
So Flange
Slip On Pipe Flange
Weld Neck Flange
