RTJ Flanges Ring Type Joint Flange
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Delivery Time:
- 20 Days
- Transportation:
- Ocean, Land, Air, Train/TNT/DHL
- Port:
- Zhengzhou Train Station, Tianjin New Port, Beijing Air Port
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Cangzhou,China |
|---|---|
| Productivity: | 1000pcs/month |
| Supply Ability: | 1000pcs/month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | ISO/CE/API |
| HS Code: | 73079900 |
| Transportation: | Ocean,Land,Air,Train/TNT/DHL |
| Port: | Zhengzhou Train Station,Tianjin New Port,Beijing Air Port |

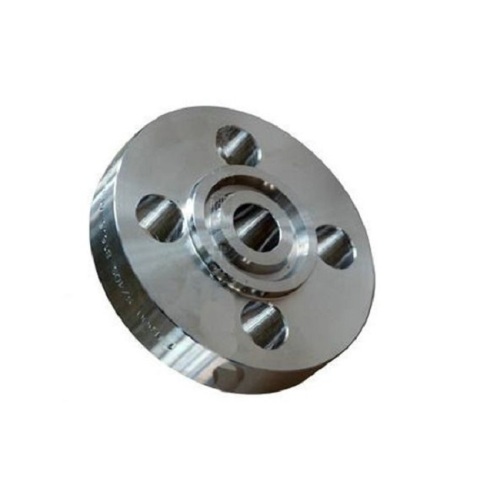

RTJ Flanges, Ring Type Joint Flange
A metal ring is compressed into a hexagonal groove on the face of the flange to make the seal. This jointing method can be employed on Weld Neck, Slip-on and Blind Flange.
Ring Type Joint Flanges (RTJ) or Ring Joint Facing Flanges (R-JF):
RTJ flanges have grooves cut into their faces which accept steel Ring Gaskets. RTJ flanges seal when tightened bolts compress the gasket between the flanges into the grooves, deforming (or "Coining") the gasket to make Intimate Contact inside the grooves, creating a metal to metal seal.
An RTJ flange may have a raised face with a ring groove machined into it.
This raised face does not serve as any part of the sealing means. For RTJ flanges that seal with BX ring gaskets, the raised faces of the connected and tightened flanges may contact each other. In this case the compressed gasket will not bear additional load beyond the bolt tension, vibration and movement cannot further crush the gasket and lessen the connecting tension.
An RTJ flange may have a raised face with a ring groove machined into it. This raised face does not serve as any part of the sealing means.
Standards, Dimensions & Weight
RTJ flanges have grooves cut into their faces which accept steel Ring Joint Type Gaskets.
-
Dimensions of Ring Joint Facings
-
Ring Joint Facings ANSI/ASME B16.5 & B16.47-1
-
Ring Joint Facings ASME/ANSI B16.5 & B16.47-2
-
Ring Joint Facings ASME/ANSI B16.5 & B16.47-3
-
Ring Joint Facings ASME/ANSI B16.5 & B16.47-4
RTJ steel flange seal when tightened bolts compress the gasket between the flanges into the grooves, deforming (or [Coining") the gasket to make Intimate Contact inside the grooves, creating a metal to metal seal.
Ring Type Joint gaskets
Ring Type Joint gaskets are metallic sealing rings, suitable for high-pressure and high-temperature applications. Pipe Fitting are always applied to special, accompanying flanges which ensure good, reliable sealing with the correct choice of profiles and material.
Specifications of Ring Type Joint Flange:
An RTJ steel flange may have a raised face with a ring groove machined into it. This raised face does not serve as any part of the sealing means. For RTJ flanges that seal with BX ring gaskets, the raised faces of the connected and tightened flanges may contact each other.
In this case the already coined gasket will not bear additional load beyond the bolt tension, vibration and movement cannot further crush the gasket and lessen the connecting tension.
Size: 1/2" to 60", DN 12mm to DN 1500mm
Pressure class: Class 150 to Class 2,500, PN 2.5 to PN 250
Facing: RF / RTJ>
Material:
Cabon steel pipe fitting : A105, A350 LF2
Stainless steel Pipe Flange: A182 F304/F304L/F316/F316L/F321
Alloy steel Fitting: F11, F12
Packing: plywood case and plywood pallet
RTJ Flanges, Ring Type Joint Flange
A metal ring is compressed into a hexagonal groove on the face of the flange to make the seal. This jointing method can be employed on Weld Neck, Slip-on and Blind Flange.
Ring Type Joint Flanges (RTJ) or Ring Joint Facing Flanges (R-JF):
RTJ flanges have grooves cut into their faces which accept steel Ring Gaskets. RTJ flanges seal when tightened bolts compress the gasket between the flanges into the grooves, deforming (or "Coining") the gasket to make Intimate Contact inside the grooves, creating a metal to metal seal.
An RTJ flange may have a raised face with a ring groove machined into it.
This raised face does not serve as any part of the sealing means. For RTJ flanges that seal with BX ring gaskets, the raised faces of the connected and tightened flanges may contact each other. In this case the compressed gasket will not bear additional load beyond the bolt tension, vibration and movement cannot further crush the gasket and lessen the connecting tension.
An RTJ flange may have a raised face with a ring groove machined into it. This raised face does not serve as any part of the sealing means.
Standards, Dimensions & Weight
RTJ flanges have grooves cut into their faces which accept steel Ring Joint Type Gaskets.- Dimensions of Ring Joint Facings
- Ring Joint Facings ANSI/ASME B16.5 & B16.47-1
- Ring Joint Facings ASME/ANSI B16.5 & B16.47-2
- Ring Joint Facings ASME/ANSI B16.5 & B16.47-3
- Ring Joint Facings ASME/ANSI B16.5 & B16.47-4
RTJ steel flange seal when tightened bolts compress the gasket between the flanges into the grooves, deforming (or [Coining") the gasket to make Intimate Contact inside the grooves, creating a metal to metal seal.
Ring Type Joint gaskets
Ring Type Joint gaskets are metallic sealing rings, suitable for high-pressure and high-temperature applications. Pipe Fitting are always applied to special, accompanying flanges which ensure good, reliable sealing with the correct choice of profiles and material.
Specifications of Ring Type Joint Flange:
An RTJ steel flange may have a raised face with a ring groove machined into it. This raised face does not serve as any part of the sealing means. For RTJ flanges that seal with BX ring gaskets, the raised faces of the connected and tightened flanges may contact each other.
In this case the already coined gasket will not bear additional load beyond the bolt tension, vibration and movement cannot further crush the gasket and lessen the connecting tension.
Size: 1/2" to 60", DN 12mm to DN 1500mm
Pressure class: Class 150 to Class 2,500, PN 2.5 to PN 250
Facing: RF / RTJ>
Material:
Cabon steel pipe fitting : A105, A350 LF2Stainless steel Pipe Flange: A182 F304/F304L/F316/F316L/F321
Alloy steel Fitting: F11, F12
Packing: plywood case and plywood pallet
