Stainless Steel ASME B16.9 Concentric Reducer
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Tianijin New Port, Beijing Air Port, Cangzhou Train Station
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Cangzhou,China |
|---|---|
| Productivity: | 10000pcs/momth |
| Supply Ability: | 10000pcs/month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | ISO/CE/API |
| HS Code: | 73079300 |
| Transportation: | Ocean,Land,Air |
| Port: | Tianijin New Port,Beijing Air Port,Cangzhou Train Station |
Stainless Steel ASME B16.9 Reducer
Highly acclaimed Manufacturer & Exporter presents best offer ever on ANSI/ASME B16.9 Butt weld Reducers
We have specialization to manufacture customized ANSI/ASME B16.9 Butt weld Reducers per customers` specifications, we welcome small quantity order.
ANSI/ASME B16.9 Butt weld Reducers
We believes in long term relationship with our clients worldwide, Required Quality in reasonable price of ANSI/ASME B16.9 Butt weld Reducers are always our main priority. We are wn as specialist in ANSI/ASME B16.9 Butt weld Reducers, 70% of our customers are associated with us for their regular requirements of ANSI/ASME B16.9 Butt weld Reducers, Chinese suppliers also procures ANSI/ASME B16.9 Butt weld Reducers from us bcz. We have the specialization & 35 years of experience to manufacture ANSI/ASME B16.9 Butt weld Reducers.
Bangdng under the expert guidance of our diligent workforce. we are highly experienced company in ANSI/ASME B16.9 Butt weld Reducers & other pipe fittings. our ANSI/ASME B16.9 Butt weld Reducers & Other Fitting products are manufactured using quality material and go through a rigorous quality check at all stages of production to ensure quality. Designed in compliance with international quality standards, these ANSI/ASME B16.9 Butt weld Reducers are corrosion resistance, sturdy and durable. we also supply ANSI/ASME B16.9 Butt weld Reducers & other pipe fittings Flanges in customized size. Our Product Supply Division offers a broad portfolio of Steel Flanges and ANSI/ASME B16.9 Butt weld Reducers. When you place an order with bangdong, you will receive the products that will stand up in service from people that will stand behind their product.
ANSI/ASME B16.9 Butt weld Reducers
| Standards: |
ANSI – B 16.9 ASTM A403 – ASME SA403 – `Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings` API 590-605 ASME B16.9 – `Factory-Made Wrought Buttwelding Fittings" ASME B16.25 – `Buttwelding Ends` ASME B16.28 – `Wrought Steel Buttwelding Short Radius Elbows and Returns` MSS SP-43 – `Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications` |
| Schedule: | Sch 5 TO Sch XXS. |
| Sizes: |
1/2" TO 36" (SEAMLESS UPTO 24") (WELDED 8" TO 36" ) |
| Materials: |
Stainless Steel, Alloy Steel, Carbon Steel, Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Type: | Butt Weld (BW) |
| Thickness: | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Dimension: | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
Dimensions

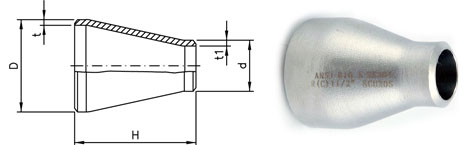

REDUCERS – Ansi 16.9 dimensions
|
REDUCERS |
||||
| inches | mm | D | d | H |
| 3/4 x 3/4 | 20 x 15 | 26,67 | 21,34 | 38,10 |
| 3/4 x 3/8 | 20 x 10 | 26,67 | 17,14 | 38,10 |
| 1 x 3/4 | 25 x 20 | 33,40 | 26,67 | 50,80 |
| 1 x 1/2 | 25 x 15 | 33,40 | 21,34 | 50,80 |
| 1 1/4 x 1 | 32 x 25 | 42,16 | 33,40 | 50,80 |
| 1 1/4 x 3/4 | 32 x 20 | 42,16 | 26,67 | 50,80 |
| 1 1/4 x 1/2 | 32 x 15 | 42,16 | 21,34 | 50,80 |
| 1 1/2 x 1 1/4 | 40 x 32 | 48,26 | 42,16 | 63,50 |
| 1 1/2 x 1 | 40 x 25 | 48,26 | 33,40 | 63,50 |
| 1 1/2 x 3/4 | 40 x 20 | 48,26 | 26,67 | 63,50 |
| 1 1/2 x 1/2 | 40 x 15 | 48,26 | 21,34 | 63,50 |
| 2 x 1 1/2 | 50 x 40 | 60,32 | 48,26 | 76,20 |
| 2 x 1 1/4 | 50 x 32 | 60,32 | 42,16 | 76,20 |
| 2 x 1 | 50 x 25 | 60,32 | 33,40 | 76,20 |
| 2 x 3/4 | 50 x 20 | 60,32 | 26,67 | 76,20 |
| 2 1/2 x 2 | 65 x 50 | 73,02 | 60,32 | 88,90 |
| 2 1/2 x 1 1/2 | 65 x 40 | 73,02 | 48,26 | 88,90 |
| 2 1/2 x 1 1/4 | 65 x 32 | 73,02 | 42,16 | 88,90 |
| 2 1/2 x1 | 65 x 25 | 73,02 | 33,40 | 88,90 |
| 3 x 2 1/2 | 80 x 65 | 88,90 | 73,02 | 88,90 |
| 3 x 2 | 80 x 50 | 88,90 | 60,32 | 88,90 |
| 3 x 1 1/2 | 80 x 40 | 88,90 | 48,26 | 88,90 |
| 3 x 1 1/4 | 80 x 32 | 88,90 | 42,16 | 88,90 |
| 3 1/2 x 3 | 90 x 80 | 101,60 | 88,90 | 101.60 |
| 3 1/2 x 2 1/2 | 90 x 65 | 101,60 | 73,02 | 101.60 |
| 3 1/2 x 2 | 90 x 50 | 101,60 | 60,32 | 101.60 |
| 3 1/2 x 1 1/2 | 90 x 40 | 101,60 | 48,26 | 101.60 |
| 3 1/2 x 1 1/4 | 90 x 32 | 101,60 | 42,16 | 101.60 |
| 4 x 3 1/2 | 100 x 90 | 114,30 | 73,02 | 101.60 |
| 4 x 3 | 100 x 80 | 114,30 | 88,90 | 101.60 |
| 4 x 2 1/2 | 100 x 65 | 114,30 | 73,02 | 101.60 |
| 4 x 2 | 100 x 50 | 114,30 | 60,32 | 101.60 |
| 4 x 1 1/2 | 100 x 40 | 114,30 | 48,26 | 101.60 |
| 5 x 4 | 125 x 100 | 141,30 | 114,30 | 127,00 |
| 5 x 3 1/2 | 125 x 90 | 141,30 | 101,60 | 127,00 |
| 5 x 3 | 125 x 80 | 141,30 | 88,90 | 127,00 |
| 5 x 2 1/2 | 125 x 65 | 141,30 | 73,02 | 127,00 |
| 5 x 2 | 125 x 50 | 141,30 | 60,32 | 127,00 |
| 6 x 5 | 150 x 125 | 168,27 | 141,30 | 139,7 |
| 6 x 4 | 150 x 100 | 168,27 | 114,30 | 139,7 |
| 6 x 1/2 | 150 x 90 | 168,27 | 101,60 | 139,7 |
| 6 x 3 | 150 x 80 | 168,27 | 88,90 | 139,7 |
| 6 x 1/2 | 150 x 65 | 168,27 | 73,02 | 139,7 |
| 8 x 6 | 200 x 150 | 219,07 | 168,27 | 152,4 |
| 8 x 5 | 200 x 125 | 219,07 | 141,30 | 152,4 |
| 8 x 4 | 200 x 100 | 219,07 | 114,30 | 152,4 |
| 8 x 3 1/2 | 200 x 90 | 219,07 | 101,60 | 152,4 |
| 10 x 8 | 250 x 200 | 273,05 | 219,07 | 177,8 |
| 10 x 6 | 250 x 150 | 273,05 | 168,27 | 177,8 |
| 10 x 5 | 250 x 125 | 273,05 | 141,30 | 177,8 |
| 10 x 4 | 250 x 100 | 273,05 | 114,30 | 177,8 |
| 12 x 10 | 300 x 250 | 323,85 | 273,05 | 203,2 |
| 12 x 8 | 300 x 200 | 323,85 | 219,07 | 203,2 |
| 12 x 6 | 300 x 150 | 323,85 | 168,27 | 203,2 |
| 12 x 5 | 300 x 125 | 323,85 | 141,30 | 203,2 |
| 14 x 12 | 350 x 300 | 355,60 | 323,85 | 330,2 |
| 14 x 10 | 350 x 250 | 355,60 | 273,05 | 330,2 |
| 14 x 8 | 350 x 200 | 355,60 | 219,07 | 330,2 |
| 14 x 6 | 350 x 150 | 355,60 | 168,27 | 330,2 |
| 16 x 14 | 400 x 350 | 406,40 | 355,60 | 355,6 |
| 16 x 12 | 400 x 300 | 406,40 | 323,85 | 355,6 |
| 16 x 10 | 400 x 250 | 406,40 | 273,05 | 355,6 |
| 16 x 8 | 400 x 200 | 406,40 | 219,07 | 355,6 |
| 18 x 16 | 450 x 400 | 457,20 | 406,40 | 381,0 |
| 18 x 14 | 450 x 350 | 457,20 | 355,60 | 381,0 |
| 18 x 12 | 450 x 300 | 457,20 | 323,85 | 381,0 |
| 18 x 10 | 450 x 250 | 457,20 | 273,05 | 381,0 |
| 20 x 18 | 500 x 450 | 508,00 | 457,20 | 508,0 |
| 20 x 16 | 500 x 400 | 508,00 | 406,40 | 508,0 |
| 20 x 14 | 500 x 350 | 508,00 | 355,60 | 508,0 |
| 20 x 12 | 500 x 300 | 508,00 | 323,85 | 508,0 |
| 22 x 20 | 550 x 500 | 558,80 | 508,00 | 508,0 |
| 22 x 18 | 550 x 450 | 558,80 | 457,20 | 508,0 |
| 22 x 16 | 550 x 400 | 558,80 | 406,40 | 508,0 |
| 22 x 14 | 550 x 350 | 558,80 | 355,60 | 508,0 |
| 24 x 22 | 600 x 550 | 609,6 | 558,80 | 508,0 |
| 24 x 20 | 600 x 500 | 609,6 | 508,00 | 508,0 |
| 24 x 18 | 600 x 450 | 609,6 | 457,20 | 508,0 |
| 24 x 16 | 600 x 400 | 609,6 | 406,40 | 508,0 |
| Dimension in mm. | ||||
REDUCERS – End welding bevels
ANSI/ASME B16.9 Butt weld Reducers
we are the manufacturer of ANSI/ASME B16.9 Butt weld Reducers, we have our own A 3 level 10,000 feet and well equipped warehouse located at yanshan,cangzhou. We thanks to our skilled staff, we can produce a large number of ANSI/ASME B16.9 Butt weld Reducers that comply with the different current standards. Choosing and selecting our raw materials is one of the keys to our production.

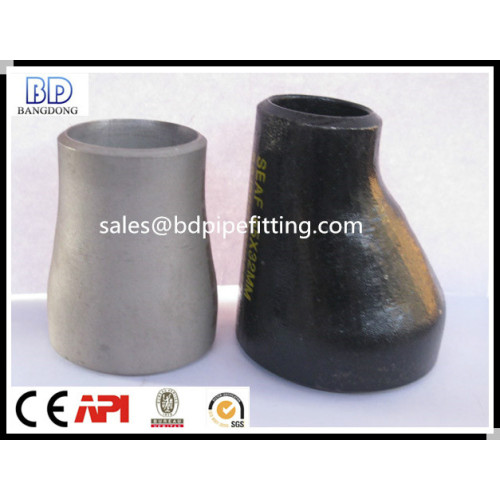

Bangdong supply Joint Butt Welded Carbon Steel Reducer, Carbon Steel Pipe Fitting Concentric reducer and Carbon Steel Weld Eccentric Reducer.A860 Wphy52 Butt weld pipe fitting .
We are highly experienced company in ANSI/ASME B16.9 Butt weld Con Reduce & other pipe fittings. our ANSI/ASME B16.9 Butt weld Reducers & Other Fitting products are manufactured using quality material and go through a rigorous quality check at all stages of production to ensure quality. Designed in compliance with international quality standards, these ANSI/ASME B16.9 Butt weld Reducers are corrosion resistance, sturdy and durable. we also supply ANSI/ASME B16.9 Butt weld Reducers & other pipe fittings Flanges in customized size. Our Product Supply Division offers a broad portfolio of Steel Flanges and ANSI/ASME B16.9 Butt weld Reducers.
When you place an order with Bangdong, you will receive the products that will stand up in service from people that will stand behind their product.
