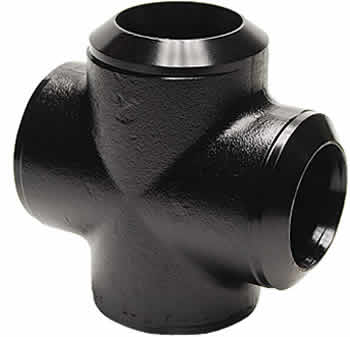

The equal cross is one kind of the pipe cross, just like a equal tee, the equal cross means all the 4 ends of the cross are in same diameter.

We have a team of experienced professionals with years of experience in manufacturing Pipe Cross.

ASME B16.9 Butt weld Equal Cross Dimensions

Nominal Pipe Size (NPS)	DN	Outside Diameter at Bevel	Center- to-End
			Run.C	Outlet. M[Notes(1) and (2)]
1/2	15	21.3	25	25
3/4	20	26.7	29	29
1	25	33.4	38	38
1-1/4	32	42.2	48	48
1-1/2	40	48.3	57	57
2	50	60.3	64	64
2-1/2	65	73.0	76	76
3	80	88.9	86	86
3-1/2	90	101.6	95	95
4	100	114.3	105	105
5	125	141.3	124	124
6	150	168.3	143	143
8	200	219.1	178	178
10	250	273.0	216	216
12	300	323.8	254	254
14	350	355.6	279	279
16	400	406.4	305	305
18	450	457	343	343
20	500	508	381	381
22	550	559	419	419
24	600	610	432	432
26	650	660	495	495
28	700	711	521	521
30	750	762	559	559
32	800	813	597	597
34	850	864	635	635
36	900	914	673	673
38	950	965	711	711
40	1000	1016	749	749
42	1050	1067	762	711
44	1100	1118	813	762
46	1150	1168	851	800
48	1200	1219	889	838

GENERAL NOTES: All dimensions are in millimeters.
(a). Outlet dimension M for NPS 26(DN 650) and large is recommended but not required.
(b). Dimensions applicable to crosses NPS 24(DN 600) and smaller.

Popular cross

Seamless Pipe Cross

Stainless Steel Pipe Cross

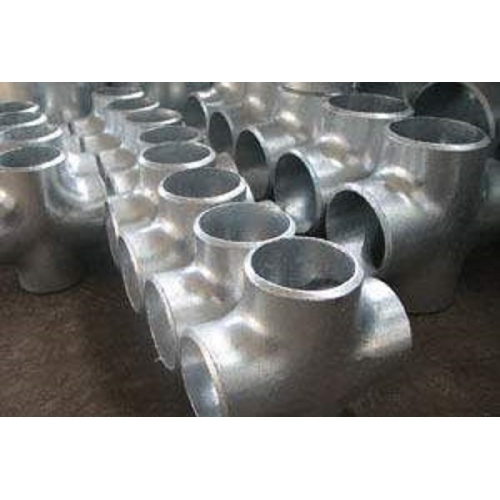

Galvanized Steel Pipe Cross

Common types of pipe tee

A pipe tee is a type of fitting that has a T shape and is used to join two or more plumbing pipes.

• Equal Tee (or straight tee), means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee.
• Reducing Tee is a type of pipe fitting in which the branch port size is smaller than the ports of the run.
• Barred Tee is used in pipelines that are pigged.
• Lateral Tee has a 45 degree branch from a pipeline.
• Pipe Cross is a fitting that used in the place where four pipes meet with the same diameter include:
  • Reducing cross used for connecting four pipes, the main pipes with the same size, but the dimensions of the branch diameter is smaller than the main pipes.
  • Equal cross in the place where four pipes meet with the same diameter.
• Forged Socket Weld Equal Tee are pipe fittings that be formed mainly by forging.

Materials

Carbon steel: ASTM/ASME A234 WPB-WPC
Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N

ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
High performance steel: ASTM/ASME A860 WPHY70 42-46-52-60-65

Size range: 1/2 to 72 inches
Pressure: SCH5 to SCH160

Welding Bevel acc. to standards:

• ASME B16.9, Factory-Made Wrought Steel Butt weld  pipe Fitting
• ASME B16.28, Buttwelding Short Radius Elbows and Returns
• ANSI/ASME B16.25, Buttwelding Ends
• MSS SP-97, Socket Welding, Threaded, and Buttwelding Ends
• Tolerance For Butt Weld Pipe Fitting

Industrial Processes : Bending, squeezing, pressing, forging, machining and more
