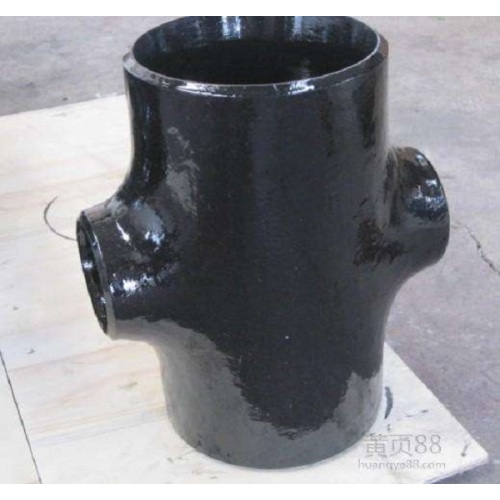

butt weld cross ANSI B16.9

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF

Min. Order:: 10 Piece/Pieces

Min. Order:: 10 Piece/Pieces

Delivery Time:: 15 Days

Transportation:: Ocean, Land, Air

Port:: Tianijin New Port, Beijing Air Port, Cangzhou Train Station

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Cangzhou,China
Productivity:	10000pcs/momth
Supply Ability:	10000pcs/month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF
Certificate:	ISO/CE/API
HS Code:	73079300
Transportation:	Ocean,Land,Air
Port:	Tianijin New Port,Beijing Air Port,Cangzhou Train Station

Product Description

Buttweld Equal pipe cross Specification:

Type	Equal, Reducing
Raw Material	Seamless pipe, Welded pipe, Steel sheet. Round bar（Foring High pressure）
Manufacture Process	Extrusion moulding, Hot Pressing, Cold-machining, Hot-machining, Welded, Heat treatment
Outside Diameter	Seamless Elbow ( 1/2″～24″), ERW / Welded / Fabricated Elbow (1/2″～48″)
Wall Thickness	3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS , SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Value Added Services	Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering）
Manufacturing Standards	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, GB/T12459, GB/T13401, SH3408 , SH3409, JIS B2311/2220, DIN2617/2616/2615

Buttweld Seamless Pipe Cross Material Grades:

ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ),

UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825),

UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625),

UNS 10276 ( HASTELLOY C 276

SS cross carbon steel reducing cross

Stainless steel equal cross carbon steel reducing cross

Buttweld Equal Cross Dimensions


EQUAL CROSS	REDUCING CROSS

Nominal Pipe Size (NPS)	Outside Diameter At Bevel D		Center to End
	Outside Diameter At Bevel D		Center to End
	Run	Outlet	Run C	Outlet(1) M
	Run	Outlet	Run C	Outlet(1) M
1/2×1/2	21.3	21.3	25.4	25.4
1/2×3/8		17.1		25.4
1/2×1/4		13.7		25.4
3/4×3/4	26.7	26.7	28.4	28.4
3/4×1/2		21.3		28.4
3/4×3/8		17.1		28.4
1×1	33.4	33.4	38.1	38.1
1×3/4		26.7		38.1
1×1/2		21.3		38.1
11/4×11/4	42.2	42.2	47.8	47.8
11/4×1		33.4		47.8
11/4×3/4		26.7		47.8
11/4×1/2		21.3		47.8
11/2×11/2	48.3	48.3	57.2	57.2
11/2×11/4		42.2		57.2
11/2×1		33.4		57.2
11/2×3/4		26.7		57.2
11/2×1/2		21.3		57.2
2×2	60.3	60.3	63.5	63.5
2×11/2		48.3		60.5
2×11/4		42.2		57.2
2×1		33.4		50.8
2×3/4		26.7		44.4
2×1/2*		21.3
21/2×21/2	73.0	73.0	76.2	76.2
21/2×2		60.3		69.8
21/2×11/2		48.3		66.5
21/2×11/4		42.2		63.5
21/2×1		33.4		57.2
3×3	88.9	88.9	85.9	85.9
3×21/2		73.0		82.6
3×2		60.3		76.2
3×11/2		48.3		73.2
3×11/4		42.2		69.8
3×1*		33.4
31/2×31/2	101.6	101.6	95.2	95.2
31/2×3		88.9		91.9
31/2×21/2		73.0		88.9
31/2×2		60.3		82.6
31/2×11/2		48.3		79.2
4×4	114.3	114.3	104.6	104.6
4×31/2		101.6		101.6
4×3		88.9		98.6
4×21/2		73.0		95.2
4×2		60.3		88.9
4×11/2		48.3		85.9
4×11/4		42.2
4×1*		33.5
5×5	141.3	141.3	124.0	124.0
5×4		114.3		117.3
5×31/2		101.6		114.3
5×3		88.9		111.3
5×21/2		73.0		108.0
5×2		60.3		104.6
5×11/2*		48.3
6×6	168.3	168.3	142.7	142.7
6×5		141.3		136.7
6×4		114.3		130.0
6×31/2		101.6		127.0
6×3		88.9		124.0
6×21/2		73.0		120.6
6×2*		60.3
8×8	219.1	219.1	177.8	177.8
8×6		168.3		168.1
8×5		141.3		162.1
8×4		114.3		155.4
8×31/2		101.6		152.4
8×3*		88.9
10×10	273.1	273.1	215.9	215.9
10×8		219.1		203.2
10×6		168.3		193.5
10×5		141.3		190.5
10×4		114.3		184.2
12×12	323.9	323.9	254.0	254.0
12×10		273.1		241.3
12×8		219.1		228.6
12×6		168.3		218.9
12×5		141.3		215.9
14×14	355.6	355.6	279.4	279.4
14×12		323.9		269.7
14×10		273.1		257.0
14×8		219.1		247.6
14×6		168.3		238.3
16×16	406.4	406.4	304.8	304.8
16×14		355.6		304.8
16×12		323.9		295.1
16×10		273.1		282.4
16×8		219.1		373.0
16×6		168.3		263.7
18×18	457.2	457.2	342.9	342.9
18×16		406.4		330.2
18×14		355.6		330.2
18×12		323.9		320.5
18×10		273.1		307.8
18×8		219.1		298.4
20×20	508.0	508.0	381.0	381.0
20×18		457.2		369.3
20×16		406.4		355.6
20×14		355.6		355.6
20×12		323.9		345.9
20×10		273.1		333.2
20×8		219.1		323.8
22×22	558.8	558.8	419.1	419.1
22×20		508.0		406.4
22×18		457.2		393.7
22×16		406.4		381.0
22×14		355.6		381.0
22×12		323.9		371.3
22×10		273.1		358.6
24×24	609.6	609.6	431.8	431.8
24×22		558.8		431.8
24×20		508.0		431.8
24×18		457.2		419.1
24×16		406.4		406.4
24×14		355.6		406.4
24×12		323.9		396.7
24×10		273.1		384.0
26×26	660.4	660.4	495.3	495.3
26×24		609.6		482.6
26×22		558.8		469.9
26×20		508.0		457.2
26×18		457.2		444.5
26×16		406.4		431.8
26×14		355.6		431.8
26×12		323.1		422.1
28×28	711.2	711.2	520.7	520.7
28×26		660.4		520.7
28×24		609.6		508.0
28×22		558.8		495.3
28×20		508.0		482.6
28×18		457.2		469.9
28×16		406.4		457.2
28×14		355.6		457.2
28×12		323.1		447.5
30×30	762.0	762.0	558.8	558.8
30×28		711.2		546.1
30×26		660.4		546.1
30×24		609.6		533.4
30×22		558.8		520.7
30×20		508.0		508.0
30×18		457.2		495.3
30×16		406.4		482.6
30×14		355.6		482.6
30×12		323.9		472.6
30×10		273.1		460.2
32×32	812.8	812.8	596.9	596.9
32×30		762.0		584.2
32×28		711.2		571.5
32×26		660.4		571.5
32×24		609.6		558.8
32×22		558.8		546.1
32×20		508.0		533.4
32×18		457.2		520.7
32×16		406.4		508.0
32×14		355.6		508.0
34×34	863.6	863.6	635.0	635.0
34×32		812.8		622.3
34×30		762.0		609.6
34×28		711.2		596.9
34×26		660.4		596.9
34×24		609.6		584.2
34×22		558.8		571.5
34×20		508.0		558.8
34×18		457.2		546.1
34×16		406.4		533.4
36×36	914.4	914.4	673.1	673.1
36×34		863.6		660.4
36×32		812.8		647.7
36×30		762.0		635.0
36×28		711.2		622.3
36×26		660.4		622.3
36×24		609.6		609.6
36×22		558.8		596.9
36×20		508.0		584.2
36×18		457.2		571.5
36×16		406.4		558.8
38×38	965.2	965.2	711.2	711.2
38×36		914.4		711.2
38×34		863.6		698.5
38×32		812.8		685.8
38×30		762.0		673.1
38×28		711.2		647.7
38×26		660.4		647.7
38×24		609.6		635.0
38×22		558.8		622.3
38×20		508.0		609.6
38×18		457.2		596.9
40×40	1016.0	1016.0	749.3	749.3
40×38		965.2		749.3
40×36		914.4		736.6
40×34		863.6		723.9
40×32		812.8		711.2
40×30		762.0		698.5
40×28		711.2		673.1
40×26		660.4		673.1
40×24		609.6		660.4
40×22		558.8		647.7
40×20		508.0		635.0
40×18		457.2		622.3
42×42	1066.8	1066.8	762.0	711.2
42×40		1016.0		711.2
42×38		965.2		711.2
42×36		914.4		711.2
42×34		863.6		711.2
42×32		812.8		711.2
42×30		762.0		711.2
42×28	1066.8	711.2	762.0	698.5
42×26		660.4		698.5
42×24		609.6		660.4
42×22		558.8		660.4
42×20		508.0		660.4
42×18		457.2		647.7
42×16		406.4		635.0
44×44	1117.6	1117.6	812.8	762.0
44×42		1066.8		762.0
44×40		1016.0		749.3
44×38		965.2		736.6
44×36		914.4		723.9
44×34		863.6		723.9
44×32		812.8		711.2
44×30		762.0		711.2
44×28		711.2		698.5
44×26		660.4		698.5
44×24		609.6		698.5
44×22		558.8		685.8
44×20		508.0		685.8
46×46	1168.4	1168.4	850.9	800.1
46×44		1117.6		800.1
46×42		1066.8		787.4
46×40		1016.0		774.7
46×38		965.2		762.0
46×36		914.4		762.0
46×34		863.6		749.3
46×32		812.8		749.3
46×30		762.0		736.6
46×28		711.2		736.6
46×26		660.4		736.6
46×24		609.6		723.9
46×20*		508.0		723.9
48×48	1219.2	1219.2	889.0	838.2
48×46		1168.4		838.2
48×44		1117.6		838.2
48×42		1066.8		812.8
48×40		1016.0		812.8
48×38		965.2		812.8
48×36		914.4		787.4
48×34		863.6		787.4
48×32	1219.2	812.8	889.0	787.4
48×44		1117.6		838.2
48×42		1066.8		812.8
48×40		1016.0		812.8
48×38		965.5		812.8
48×36		914.4		787.4
48×34		863.6		787.4
48×32		812.8		787.4
48×30		862.0		762.0
48×28		711.2		762.0
48×26		660.4		762.0
48×24		609.6		736.6
48×22		558.8		736.6
52×52*	1320.8	1320.8	965.2	914.4
52×48*		1219.2		863.6
52×44*		1117.6		812.8
52×40*		1016.0		762.0
54×54*	1371.6	1371.6	1003.3	952.5
54×52*		1320.8		914.4
54×48*		1219.2		863.6
54×44*		1117.6		863.6
54×40*		1016.0		812.8
54×28*		711.2		787.4
54×20*		508.0		787.4
56×56*	1422.4	1422.4	1041.4	965.2
56×52*		1320.8		914.4
56×48*		1219.2		863.6
56×44*		1117.6		812.8
56×40*		1016.0		812.8
56×28*		711.2		812.8
56×20*		508.0		812.8
60×60*	1524.0	1524.0	1117.6	1016.0
60×56*		1422.4		965.2
60×52*		1320.8		914.4
60×48*		1219.2		863.6
60×40*		1016.0		863.6
60×28*		711.2		863.6
60×20*		508.0		863.6
64×64*	1626.0	1626.0	1194.0	1092.0
64×60*		1524.0		1067.0
64×56*		1422.0		1016.0
64×52*		1321.0		965.0
64×48*		1219.0		914
66×66*	1676.4	1676.4	1219.2	1066.8
68×68*	1727.0	1727.0	1270.0	1168.0
68×64*		1626.0		1143.0
68×60*		1524.0		1118.0
68×56*		1422.0		1067.0
68×52*		1321.0		1016.0
68×48*		1219.0		965.0
72×72*	1829.0	1829.0	1320.0	1245.0
72×68*		1727.0		1219.0
72×64*		1626.0		1194.0
72×60*		1524.0		1168.0
72×56*	1829.0	1422.0	1320.0	1118.0
72×52*		1321.0		1067.0
72×48*		1219.0		1016.0
76×76*	1930.0	1930.0	1422.0	1320.0
76×72*		1829.0		1295.0
76×68*		1727.0		1270.0
76×64*		1626.0		1245.0
76×60*		1524.0		1219.0
76×56*		1422.0		1168.0
76×52*		1321.0		1118.0
76×48*		1219.0		1067.0
80×80*	2032.0	2032.0	1499.0	1397.0
80×76*		1930.0		1372.0
80×72*		1829.0		1346.0
80×68*		1727.0		1321.0
80×64*		1626.0		1295.0
80×60*		1524.0		1270.0
80×56*		1422.0		1219.0
80×52*		1321.0		1168.0
80×48		1219.0		1118.0

GB/T12459-2005, MSS SP-75 ANSI B16.9(in mm）*Wellgrow's standard
