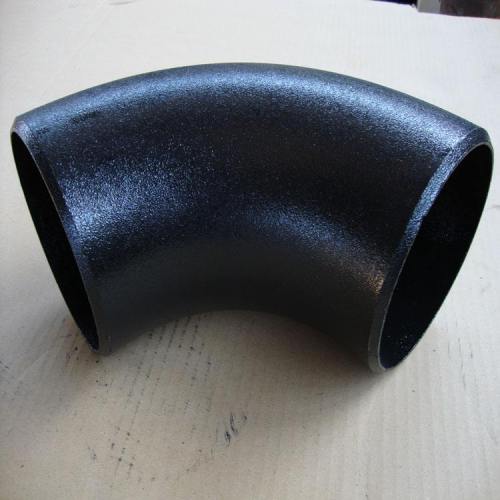

SA234 WPB 90 degree elbow
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air, Train/TNT/DHL
- Port:
- Beijing Air Port, Tianjin New Port, Wuhan Train Station
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Cangzhou,China |
|---|---|
| Productivity: | 1000pcs/month |
| Supply Ability: | 1000pcs/month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | ISO/CE/API |
| HS Code: | 73079900 |
| Transportation: | Ocean,Land,Air,Train/TNT/DHL |
| Port: | Beijing Air Port,Tianjin New Port,Wuhan Train Station |
carton steel fabricate pipe bend
Bangdong lies in cangzhou , yanshan, and which Supply A234 WP1 Return Bends,A234 WP11 Return Bends,A234 WP22 Return Bends.Alloy Steel to ASTM/ASME (S)A234 WP1, WP11, WP22, WP5, WP9 and WP91.Elbows, Return Bends, Tees, Reducers and Caps,Sizes from ½" up to 36″,Sch 40 up to sch XXS.Carbon steel to ASTM/ASME (S)A234 WPB,Elbows/Return Bends 90° SR and 180° SR,Sizes from 1″ up to 24″,Sch 40 up to sch XXS.Low Temperature steel to ASTM/ASME (S)A420 WPL3,Elbows, Return Bends, Tees, Reducers and Caps,Sizes from 1″
up to 24″,Sch 40 up to sch XX, if you need these items, pls contact us.
Bangdong have an attractive option for consideration, we are proud to offer mechanically lined pipe manufactured to API 5LD that offers corrosion resistance at a fraction of the price of previous materials.
Today's competitive environment compels businesses to seek every possible advantage. Smart companies are looking at all possibilities, including material advantages. New material technologies and manufacturing processes are solving problems that previously have limited product life cycles and created exposure to costly field failures. Sectors including Oil & Gas, Chemical, Power and Construction for example, are encountering applications where corrosion, high temperatures and pressures, and wear are limiting the lifespan or capabilities of their products and projects.
Previously, solid alloy or weld clad products have been the best options available, but those are both costly and can have extremely long lead times.
Induction bending is simply the application of heat to conventional pipe or tubing and forming the exact shape required. We can produce exactly the piece needed using the customers material of choice, including bi-metal corrosion resistant alloys. Large diameter and heavy wall production is also available. This process is performed per ISO 15590-1 and ASME B16.49.
|
MATERIALS AND SIZES
Material: API 5L, A106, A333, A335, A312, bi-metal alloys. |
|
| Sizes | Tolerance |
| OD: 2" to 60" | -1 ~+2 mm |
| Bend radius: R^3D | |
| WT: 3 to 60 mm | |
| WT thinning: R=3D | <13% |
| R=4D | <11% |
| R=5D | <9% |
| R=6D | <8% |
| Bend angle: 0~180 deg | ±0.5 deg |
| Forming velocity: | ±2.5mm per min |
| Forming temperature: | ±10°C from the qualification temp. |
| Bend ovality: | <2.5% |
| Tangent ovality: | <0.8% |
| ID welding ends NPS<36" | ±2.5mm |
| ID welding ends NPS>36" | ±3 mm |
| R = Radius • D = Diameter • | OD = Outside Diameter • ID = Inside Diameter |
Use of induction bending is especially beneficial where laminar flow is desired. This technology can replace most elbows and fittings used in traditional
designs.
