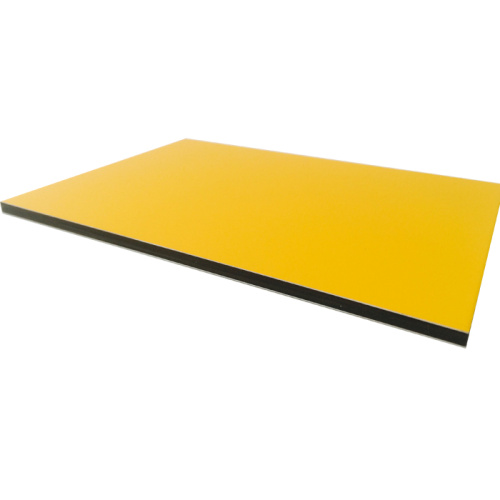

Aluminum Composite Panel Sign Board

Aluminum Composite Panel Sign Board  with various properties such as the following:

1) Lightweight, high strength, extreme rigidity and flatness

2) Weather-resistance, rub-resistance, used indoor or out door

3) Outstanding color and gloss retention

4) Adopt series of superior coating, easy maintenance, simpler cleaning

Panel thickness: 2mm - 8mm, recommend 2mm, 3mm

Panel width: 1000mm - 2020mm, recommend 1220mm,1250mm,1500mm.

Panel length: 5800mm, recommend 2440mm, 3050mm, 4050mm

Aluminium Skin thickness: 0.12 - 0.5mm, recommend 0.2mm, 0.3mm.

Features:

1) Smooth Surface, Rich Textures, Various Colors: we can provide the colors according to RAL and Pantone code, including the high gloss, matt gloss, brushed , mirror, wooden finished board and customized as your requirement.

2) Various Designs and length: Width is from 1000mm to 2020mm, Length could be customized as your requirement.

3) Simple processing, Various modalities: It could be processed to various forms and has much process such as cutting, bending, punching, sticking and painting.

4) Lowest Rate of Expand and Shrink: Dimensions stable, does not expand and shrink under the adverse circumstance, with wide temperature resistance(-50℃ - 80℃)

5) High adhesive intensity

6) Environment friendly

7) Superior weather-resistance and rub-resistance

8) Superior Rigidity

Physical Feature & Parameter

Item                                                    Standard Index            Test Value

Weight                                                    ASTM D792              T3mm=3.8kg/m²

Thermal Expansion Coefficient                     ASTM D696              24 - 28

Temperature of Thermal                            ASTM D648              115℃

Conductivity of Thermal                              ASTM D976              0.102kcal/m.hr℃

Bending Rigidity                                        ASTM C393              14.0*10^5

Penetrating Resistance                              ASTM D732              1.640kgf

Adherence Intensity                                 ASTM903                0.77kg/mm

Bending                                                   ASTM790               4032JG/mm²

Cutting Resistance                                     ASTM732                2.7kgf/mm²

Combustion Expansion Coefficient                ASTM E84               Qualified

Performance of wind pressure resistance       ASTM E330              Passed
