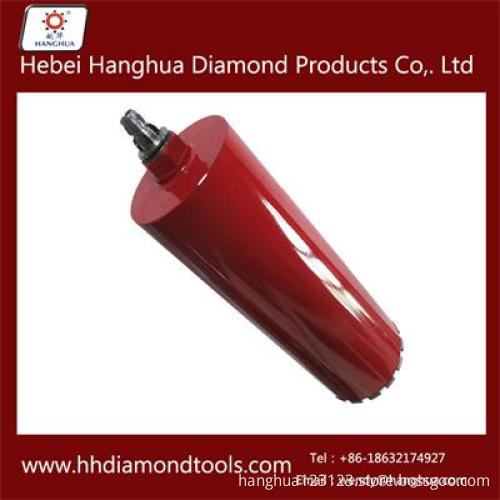

Diamond Core Drill Bits for Granite

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T

Product Description

STANDARD SPECIFICATION
Outer diameter	Core-Bit`s Length (mm)	Dimension of tooth (mm)			Number of teeth
mm	Core-Bit`s Length (mm)	Length	Height	Thickness	Number of teeth
16	350 / 400	10	7.5	4.0	2
20	350 / 400	13	7.5	4.0	2
23	350 / 400	18	7.5	4.0	3
27	350 / 400	16	7.5	4.0	4
32	350 / 400	19	7.5	4.0	4
36	350 / 400	22	7.5	4.0	4
40	350 / 400	24	8	3.7	4
46	350 / 400	23	8	3.7	5
52	400 / 450	26	8	3.75	5
63	400 / 450	24	8	3.75	8
76	400 / 450	24	8	3.75	8
83	400 / 450	24	8.5	3.75	8
90	400 / 450	20	8.5	4.0	10
102	400 / 450	20	8.5	4.0	11
108	400 / 450	20	8.5	4.0	12
112	400 / 450	20	8.5	4.0	12
114	400 / 450	20	8.5	4.0	12
120	400 / 450	20	9	4.2	13
127	400 / 450	20	9	4.5	14
132	400 / 450	20	9	4.5	14
152	400 / 450	20	9	4.5	15
160	400 / 450	20	9	4.5	16
167	400 / 450	20	9	4.5	16
180	400 / 450	20	9	4.5	16
200	400 / 450	20	9	4.5	16
219	400 / 450	20	8.5	4.8	17
250	400 / 450	20	8.5	4.8	18
300	400 / 450	20	8.5	5.0	20
All details can be customized All diameters are nominal Exact tolerances upon request
