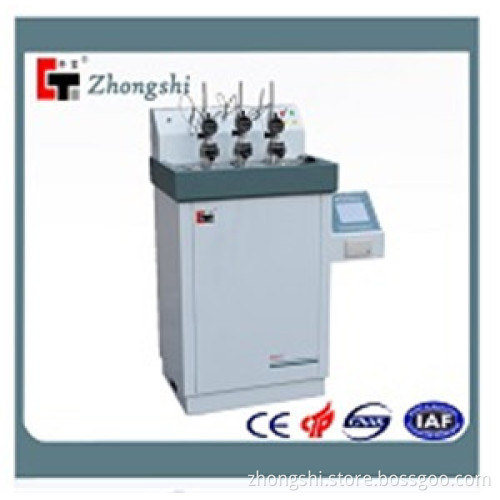

XRWT-300(H) HTD & Vicat Softening Point Temperature Instrument

Get Latest Price

Payment Type:: T/T

Incoterm:: FOB

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 15 Days

Transportation:: Ocean

Port:: Tianjin

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T
Incoterm:	FOB
Transportation:	Ocean
Port:	Tianjin

Product Description

Available Standards

ISO75, ISO306

Performance and functions:

It is used for testing the HTD &Vicat softening point of the non-metal materials. It is the necessary testing equipment for factories, mines, science research department, universities, commodity inspection, arbitration and technology supervision department.

Main technical parameter

NO Items Specification

1 Quantity of Sample frame 3

2 Temperature controlled range Room temperature~300℃

3 Heating rate (12℃±1℃)/6min.(5℃±0.5℃)/6min

4 Deformation measured range 0~1mm

5 Deformation error ＜0.01mm

6 Test piece supporting distance 64mm,100mm

7 The way of stir Double motors high efficiency agitation

8 Poise 56g~5kg

9 Displacement range 100~1100µm

10 Heating power 2.5kW

11 Power supply 220V±10% 20A 50Hz

12 Dimensions 800*450*1200mm

Performance and functions

The instrument was controlled by microprocessor, it can be independently controlled, menu operation, flexibly set, LCD English interface. All the machines equipped with micro printer to print the result. May match PC, The special software can deal with the performance data of various materials.

Use digital indicator for deformation measurement.

3.can exhaust smoke automatically and cooling down quickly.
4.The test piece frame can fluctuation automatically.
5.Have protection such as upper limit temperature set, upper limit deformation set.
6.Have memory function,after the test, it can record the test result.

Performance and feature of the software(PC Model)

1 Collection of data: Software connects mainframe with surface
2.Operation: Chinese/English window98 surface, menu operation easy
3.Display: It can display six cures of the test pieces in testing. Can display one or more deformational curves of the test pieces and contrast or stack
4.Result reappear: Open the history record anytime, contrast and stuck the curve and achieve the report
5.Curve erodes: In the course of the test or in the opening history curve can find out the temperature and deformation of the test pieces anytime

Send your message to this supplier

* From:
* To:

Mr. Miyako Qiao
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

Testing Machine

NO	Items	Specification
1	Quantity of Sample frame	3
2	Temperature controlled range	Room temperature~300℃
3	Heating rate	(12℃±1℃)/6min.(5℃±0.5℃)/6min
4	Deformation measured range	0~1mm
5	Deformation error	＜0.01mm
6	Test piece supporting distance	64mm,100mm
7	The way of stir	Double motors high efficiency agitation
8	Poise	56g~5kg
9	Displacement range	100~1100µm
10	Heating power	2.5kW
11	Power supply	220V±10% 20A 50Hz
12	Dimensions	*8004501200mm*
