Automatic Saddle Welding and Cutting Machine
- Payment Type:
- T/T
- Incoterm:
- CIF
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land
- Port:
- Tianjin, Qingdao, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Hebei, China (Mainland) |
|---|---|
| Payment Type: | T/T |
| Incoterm: | CIF |
| Transportation: | Ocean,Land |
| Port: | Tianjin,Qingdao,Shanghai |
Saddle welding and cutting machine
Scope of application
This machine can be applied to various industrial fields,such as pressure vessels for the chemical industray,station boiler,nuclear power equipment,food and pharmaceutical equipment,ship and ocean engineeing,national defense industray and so on.It can be applied to saddle welding and cutting on Cylindrical shell, Conical shell, Ellipsoidal head and so on.
Performance characteristics:
• This machine is a four axis CNC system,it can make saddle welding and cutting on curved surface such as barrel , ellipsoidal head plate. The intersecting holes form can be orthogonal, eccentric vertical intersection,etc. Also it can make flange connecting pipe intersecting line cutting.
•On-line teaching function can automatically generate correct reference input parameter theory of intersecting trajectories,and remove the movement error caused by the non- standard workpiece to achieve precision weiding and cutting.
• Parametric input, Automatic exhaust channel, Partition setting of welding parameters ,etc.All these functions make welding simple and quick .
• With the equipment fixed on the operating machine,it can be safer on operating and quick calibrating centre with laser makes it more effective in production. The device is not affected by the nozzle diameter limit,and can weld every where.
•As a multifunctional machine,it can make convenient conversion from the function of cutting to welding. Flexible in practice, menwhile,Girth weld can be easily made with this manchine.
• Two different welding modes for choice: ubmerged arc welding and gas shielded welding.
Technical parameter
|
Type |
HG900 |
HG1500 |
|
Welding parameters |
||
|
Tactical diameter (mm) |
60~900 |
100~1500 |
|
Saddle quantity (mm) |
≤350 |
≤450 |
|
Wire diameter(mm) |
3,4 |
3,4 |
|
Welding height(mm) |
≤200 |
≤200 |
|
Height of nozzle (mm) |
≤1000 |
≤1300 |
|
Cutting parameters |
||
|
Hole diameter(mm) |
60~900 |
100~1500 |
|
Saddle quantity (mm) |
≤350 |
≤450 |
|
Groove angle |
±60° |
±60° |
|
Cutting thickness(mm) |
≤200 |
≤200 |
|
Diameter of cutting branch pipe(mm) |
60~900 |
100~1500 |

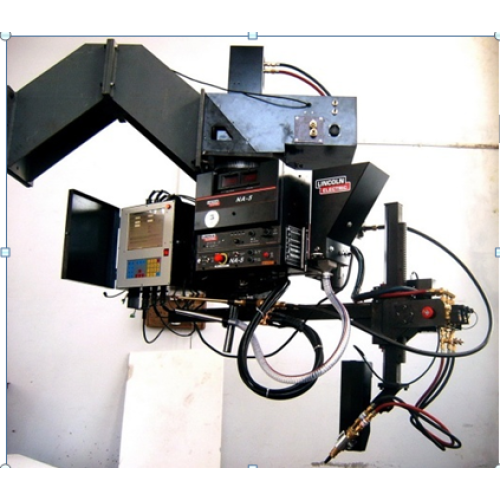

Pictures of Products
Packaging & Shipping
1.Outside package: Sandard export wooden cases.Inner package: stretch film; or According to the customers'orders.
2. Delivery and Shipping:30-60 days after the deposit received.
Company Information
Shijiazhuang Longxuan Trading Co., Ltd. is located in Shijiazhuang, the capital of Hebei Province with convenient transportation. Our company was established in Feb. 2012. Our company is professional in supplying industrial equipment, covering pipe processing machinery, automatic welding equipment, cutting machine, etc. Our company always adheres to "credibility and integrity, efficiency" purpose and develops rapidly, creating excellent results and our company has fostered a good image in suppliers and foreign customers. And our company has established long friendly cooperative relationships with many high-tech machinery manufacturing enterprises.
Our company will continue to provide our clients with professional quality integrated solution in automatic welding, cutting and robot welding.
For further relevant product images or details,please send your inquire Details in the below,click "Send" or contact me directly!
