Automatic Disc Type Injection Molding Machine
- Payment Type:
- T/T, D/P
- Incoterm:
- CFR
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land
- Port:
- Tianjin, Qingdao, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Hebei, China (Mainland) |
|---|---|
| Payment Type: | T/T,D/P |
| Incoterm: | CFR |
| Transportation: | Ocean,Land |
| Port: | Tianjin,Qingdao,Shanghai |

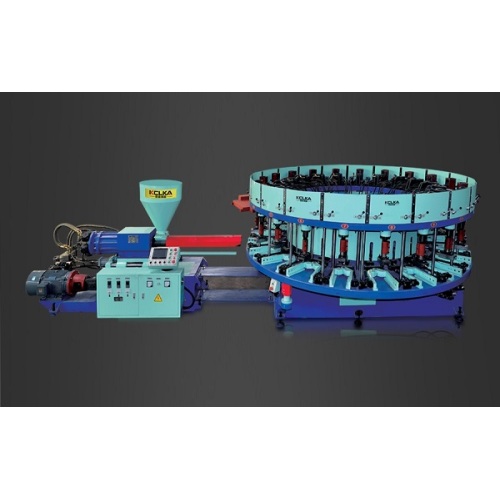

EK-5112YY Full Automatic Disc Type Single(Double) Color Casual Shoes Sports Shoes Knot Injection Molding Machine
Features:
1. Injection Moulding Machine - PLC controlled,preplasticized by hydraulic motor,driven by jull hydraulic pressure,and cycled automatically.
2.High plastifying capacity,the plastifying temperature can be controlled automatically by pre-selection
3.It adopts 12 points measurement,and during the applcation,chosen according the requirements
4.The function of empty mould selection has been provided.
5.The structure of single cylinder direct drawing and double connected plates shearingly join moulds has been adopted.
6.Single cylinder injection has beed adopted.
7.Provided the selection function for the order of pressing the cramp and closing the moule.
8.This Full-Automatic EVA Injection Moulding Machine have so many station,need spend long time to shap.
Technical Description
|
Item |
Unit |
EK-5112YY |
EK-5116YY |
EK-5120YY |
EK-5124YY |
|
Raw material |
TPR TR PVC |
TPR TR PVC |
TPR TR PVC |
TPR TR PVC |
TPR TR PVC |
|
Station number |
Station |
12 |
16 |
20 |
24 |
|
Screw diameter |
mm |
75 |
75 |
75 |
75 |
|
Screw speed |
rpm |
0-200 |
0-200 |
0-200 |
0-200 |
|
Screw length and diameter ratio |
|
22:1 |
22:1 |
22:1 |
22:1 |
|
Max injection capacity |
cm³ |
650 |
650 |
650 |
650 |
|
Sliding,platform travel |
MPa |
120 |
120 |
120 |
120 |
|
Travel for lifting the cramp |
MPa |
50 |
50 |
50 |
50 |
|
Way of mould-closing |
|
||||
|
Lasr travel |
mm |
60 |
60 |
60 |
60 |
|
Shoe cramp height |
mm |
210-260 |
210-260 |
210-260 |
210-260 |
|
Mould farme dimensions(LxWxH) |
mm |
340x180x60 |
340x180x60 |
340x180x60 |
340x180x60 |
|
The total power |
kw |
29 |
33.5 |
33.5 |
33.5 |
|
The motor power |
kw |
19 |
23.5 |
23.5 |
23.5 |
|
Machine dimension (LxWxH) |
mm |
5000x2350x1950 |
6000x3150x1900 |
6300x3350x1950 |
6900x3900x1900 |
|
Machine weight |
kg |
8500 |
10000 |
11000 |
14000 |
Data are not binding and may be changed without prior notice.
Pictures of Product
Shoes sample
Packing & Shipping
1.Outside package: Sandard export wooden cases.
Inner package: stretch film; or According to the customers'orders.
2. Delivery and Shipping:30-60 days after the deposit received.
