Double Column Welding Positioner
- Payment Type:
- T/T
- Incoterm:
- CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 30 Days
- Transportation:
- Ocean
- Port:
- Qingdao, Tianjin, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Hebei, China (Mainland) |
|---|---|
| Payment Type: | T/T |
| Incoterm: | CIF |
| Transportation: | Ocean |
| Port: | Qingdao,Tianjin,Shanghai |
HBS Series Double-Column Welding Positioner
Main functions:
It has the function of lifting and roating in n*360 °.
Main application of the welding positioner:
It is used for position of large size workpiece. Clamp the work piece on the tilting frock which is prepared by user, integrate the positioner with frock to be a whole, then, lifting and rotating angle – n*360 ° can be realized. And this equipment is usually applied in railway manufacture industry .
Main features:
1. The operation is convenient. It can be assembled and operated in lower position and rotated in higher position, which make sure the welding seam always in perfect place.
2. The speed is adjusted by transducer stepless regulation, slowing down impact of start and stop. The rotation of work table is controlled by worm reducer, rotating in n*360 °.
3. With large torgue and self-locking function.
4. Lifting system is safety,reliable and precisely in positioning.
5. The structure of this positioner is much more stable and load capacity is heaver than general ones.
6. It is needed to be fixed on the floor. The user needs to prepare foundation before assembly.
7. Remote-control is equipped.
Main Technical Parameter
|
Type |
Max load capacity(t) |
Rotating speed(r/min) |
Tilting speed(r.min) |
Tilting angle(°) |
Centrobaric distance (mm) |
|
HBS-50 |
5 |
0.15-2.1 |
0.6 |
360 |
300*250 |
|
HBS-100 |
10 |
0.13-1.8 |
0.5 |
360 |
400*300 |
|
HBS-200 |
20 |
0.11-1.5 |
0.4 |
360 |
500*350 |
|
HBS-400 |
40 |
0.07-1 |
0.35 |
360 |
600*450 |
|
HBS-600 |
60 |
0.07-1 |
0.3 |
360 |
800*500 |
|
HBS-1000 |
100 |
0.07-1 |
0.25 |
360 |
1000*650 |

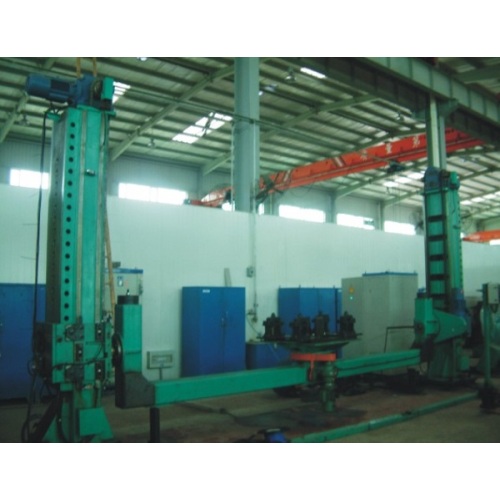

Pictures of Products
Packaging & Shipping
1.Outside package: Sandard export wooden cases.
Inner package: stretch film; or According to the customers'orders.
2. Delivery and Shipping:30-60 days after the deposit received.
Company Information
Shijiazhuang Longxuan Trading Co., Ltd. is located in Shijiazhuang, the capital of Hebei Province with convenient transportation. Our company was established in Feb. 2012. Our company is professional in supplying industrial equipment, covering pipe processing machinery, automatic welding equipment, cutting machine, etc. Our company always adheres to "credibility and integrity, efficiency" purpose and develops rapidly, creating excellent results and our company has fostered a good image in suppliers and foreign customers. And our company has established long friendly cooperative relationships with many high-tech machinery manufacturing enterprises.
Our company will continue to provide our clients with professional quality integrated solution in automatic welding, cutting and robot welding.
For further relevant product images or details, please send your inquire details and contact me directly!
