Turning Rolls for Double-Wall Oil Tank
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 30 Days
- Transportation:
- Ocean
- Port:
- Tianjin, Qingdao, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China (Mainland) |
|---|---|
| Payment Type: | T/T |
| Incoterm: | FOB |
| Transportation: | Ocean |
| Port: | Tianjin,Qingdao,Shanghai |
ZT-10 Self-aligning Welding Turning Rolls for Double-Wall Oil Tank
The Welding Turning Rolls is mainly composed of a clamp frame, bearing, roller, drive system, control system and other components. Self-adjusting welding turing rolls is depend on the
friction between the power wheel and welding unit to drive the workpiece rotate.
Product Description
When combined with the welding column and boom, welding power supply, can achieve the workpiece inside and outside the longitudinal seam and internal and external girth welding welding. The ZT turning rolls include one power bed and one idle bad. The turning rolls below 40T adopt helical-worm&cycloidal pin wheel decelerator.
Application Fields:
It is mainly used for piping, containers, boilers, oil tanks and other cylindrical parts of the assembly or welding.
Characteristics of the Welding Turning Rolls
1. Self-aligning turning rolls can adjust automatically the swing angle as per the workpiece diameter.
2. The wheels are new combination style-one rubber wheel and two steel wheels, with big load capacity, big friction, strong drive and glue force.
3. Imported international famos transducer rewalized the stepless regulation with wide speed range, high precisionand big starting moment.
4. The control system has the synchronized linkage interface with mainpulator and has remote controller, easy and reliable.
Main Technical Parameter
|
Type |
Load(t) |
Line speed (mm/min) |
Workpiece diamete(φ) |
Wheel Size(mm) |
Power (kw) |
Size(mm) |
Input Voltage |
|||
|
Dia |
Wid |
L |
W |
H |
||||||
|
ZT-5 |
5 |
100-1000 |
250-3000 |
250 |
140 |
0.25×2 |
1715 |
610 |
700 |
Three-prase 380V |
|
1270 |
410 |
|||||||||
|
ZT-10 |
10 |
100-1000 |
300-3000 |
300 |
170 |
0.37×2 |
1850 |
640 |
775 |
|
|
1450 |
447 |
|||||||||
|
ZT-20 |
20 |
100-1000 |
500-4000 |
350 |
180 |
0.55×2 |
1885 |
670 |
880 |
|
|
1715 |
464 |
|||||||||
|
ZT-30 |
30 |
100-1000 |
500-4000 |
350 |
180 |
0.55×2 |
1985 |
715 |
905 |
|
|
1816 |
464 |
|||||||||
|
ZT-40 |
40 |
100-1000 |
500-4500 |
400 |
200 |
0.75×2 |
2210 |
1080 |
1085 |
|
|
2060 |
550 |
|||||||||
|
ZT-50 |
50 |
100-1000 |
500-4500 |
450 |
210 |
1.1×2 |
2360 |
1190 |
1141 |
|
|
2200 |
550 |
|||||||||
|
ZT-60 |
60 |
100-1000 |
600-5500 |
450 |
210 |
1.5×2 |
2532 |
1200 |
1218 |
|
|
2280 |
550 |
|||||||||
|
ZT-80 |
80 |
100-1000 |
800-6000 |
500 |
280 |
1.5×2 |
2850 |
1365 |
1378 |
|
|
2720 |
750 |
|||||||||
|
ZT-100 |
100 |
100-1000 |
900-6500 |
500 |
280 |
2.2×2 |
3062 |
1417 |
1427 |
|
|
2945 |
750 |
|||||||||
|
ZT-200 |
200 |
100-1000 |
1000-7500 |
580 |
240 |
3.0×2 |
3600 |
1670 |
1718 |
|
|
3600 |
800 |
|||||||||

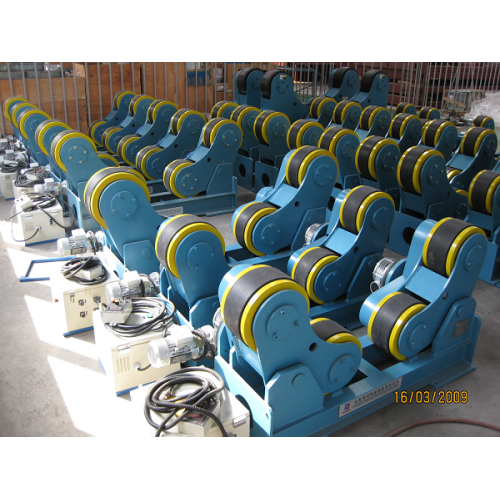

Pictures of Products
Packaging & Shipping
1.Outside package: Sandard export wooden cases.
Inner package: stretch film; or According to the customers'orders.
2. Delivery and Shipping:30-60 days after the deposit received.
Shijiazhuang Longxuan Trading Co., Ltd. is located in Shijiazhuang, the capital of Hebei Province with convenient transportation. Our company was established in Feb. 2012. Our company is professional in supplying industrial equipment, covering pipe processing machinery, automatic welding equipment, cutting machine, etc. Our company always adheres to "credibility and integrity, efficiency" purpose and develops rapidly, creating excellent results and our company has fostered a good image in suppliers and foreign customers. And our company has established long friendly cooperative relationships with many high-tech machinery manufacturing enterprises.
Our company will continue to provide our clients with professional quality integrated solution in automatic welding, cutting and robot welding.
For further relevant product images or details, please send your inquire details and contact me directly!
