KT-20 Series Adjustable Welding Turning Rolls
Self-adjusting turning rolls for circular tube welding, the distance between the rollers can be adjusted according to the size of the cylinder, a variety of specifications for the user to choose the turning roller. Turning rolls refers to the use of welding pieces and the friction between the active roller to drive the cylindrical welding device rotation device.
Composition:
The KT adjustable turning rolls include one power bed and one idle bed.The turning rolls over 40T adopt cycloidal pin wheel or helical-worm decelerator.
characteristics:
1. The series turning rolls adopt screw to adjust, available for changes of workpiece diameter, simple structure and economy.
2. The wheels for pipe turning rolls are new combination style, one rubber wheel and two steel wheels, with big load capacity, big friction, strong drive and glue force.
3. Imported transducer realized the stepless regulation with wide speed range, high precision and big starting moment.
4. The control system has the synchronized linkage interface with manipopulator and has remote controller, easy and reliable.
Technical Parameter
|
Type |
Load(t) |
Line speed (mm/min) |
Workpiece diameter(φ) |
Wheel Size(mm) |
Power (kw) |
Size(mm) |
Input voltage |
|||
|
Dia. |
Wid. |
L |
W |
H |
||||||
|
KT-3 |
3 |
100-1000 |
150-2500 |
250 |
140 |
0.18×2 |
1895 |
450 |
388 |
Three-phase 380v |
|
1670 |
345 |
|||||||||
|
KT-5 |
5 |
100-1000 |
250-3000 |
250 |
140 |
0.25×2 |
2213 |
470 |
415 |
|
|
1860 |
380 |
|||||||||
|
KT-10 |
10 |
100-1000 |
300-3500 |
300 |
170 |
0.37×2 |
2323 |
510 |
535 |
|
|
2060 |
420 |
|||||||||
|
KT-20 |
20 |
100-1000 |
400-4500 |
350 |
180 |
0.55×2 |
2937 |
563 |
635 |
|
|
2570 |
460 |
|||||||||
|
KT-30 |
30 |
100-1000 |
400-4500 |
350 |
180 |
0.75×2 |
2967 |
610 |
635 |
|
|
2570 |
470 |
|||||||||
|
KT-40 |
40 |
100-1000 |
500-5000 |
400 |
200 |
0.75×2 |
3100 |
915 |
695 |
|
|
3000 |
480 |
|||||||||
|
KT-50 |
50 |
100-1000 |
500-5000 |
450 |
220 |
1.1×2 |
3100 |
1060 |
810 |
|
|
3000 |
560 |
|||||||||
|
KT-60 |
60 |
100-1000 |
500-5500 |
450 |
220 |
1.1×2 |
3355 |
1060 |
810 |
|
|
3270 |
560 |
|||||||||
|
KT-80 |
80 |
100-1000 |
800-5500 |
500 |
240 |
1.5×2 |
3340 |
1120 |
900 |
|
|
3250 |
640 |
|||||||||
|
KT-100 |
100 |
100-1000 |
800-5500 |
500 |
240 |
2.2×2 |
3340 |
1160 |
900 |
|
|
3250 |
640 |
|||||||||
|
KT-200 |
200 |
100-1000 |
800-6000 |
600 |
240 |
2.2×2 |
4250 |
1190 |
1050 |
|
|
KT-300 |
300 |
100-1000 |
1000-6500 |
640 |
250 |
3×2 |
5400 |
1320 |
1150 |
|
|
KT-500 |
500 |
100-1000 |
1000-8000 |
700 |
300 |
5.5×2 |
6200 |
1580 |
1460 |
|
|
KT-800 |
800 |
100-1000 |
1000-8000 |
800 |
350 |
11×2 |
6880 |
1900 |
1825 |
|
Pictures of Products

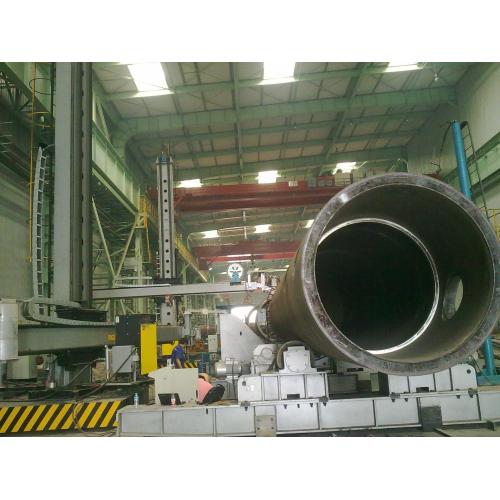

Customer Site
Packing & Shipping
1.Outside package: Sandard export wooden cases.
Inner package: stretch film; or According to the customers'orders.
2. Delivery and Shipping:30-60 days after the deposit received
