Product Description

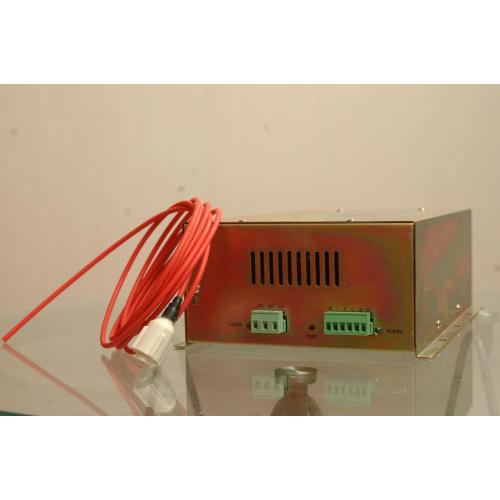

Our CO2 laser power supply has high efficiency, frequency and short response time. The compact and handy power supply has excellent compatibility with laser device and can be directly connected. It can take feedback interface which can be used in closed-loop control and testing the working current of laser. With this power supply, laser device will be easily started up and well operated with higher conversion efficiency and longer expectation of life.

1) Good compatibility: It can be applicable to 80W laser tube of a number of manufacturers.

2) Cutting Type and Sculpting Type: The cutting type has a good power stability and strong adaptability; while the sculpting type has a quick response speed and good engraving effect.

3) Dramatically lengthen the service life of laser.

4) Easy Control: The start and stop of laser can be easily controlled by TTL level. And there are protection switch to test the external water, ventilation, etc.

5) Easy control of laser power: Both 0-5V analog signal and PWM signal can control the laser power.

6) The power supply has the function of open circuit protection: Under the condition of good protective earthing, the power supply can work in open-circuit condition for a short time, which could avoid the damage of laser power supply because of the bursting of laser tube, thereby enhancing the life of power supply.

7) The power supply can take feedback interface which can be used in closed-loop control and testing the working current of laser.

8) The power supply adds a new function, that is timely scene judging which part is damaged, laser tube or laser power.

9) Application: Acrylic sculpture, cut; fabric sculpture, cut; Double-color plate engraving, cut; rubber sheet sculpture, cut, etc.

JH80w Main parameters:

Input	Input voltage	AC220v or AC110V(Order should be specified)
	Ac frequency	47---440Hz
	Cold surge current	≤60A(AC220v)	≤30A(AC110V)
	Leakage current	≤0.7mA(AC220V)	≤0.4mA(AC110V)
output	Maximum output voltage	DC 35KV
	Maximum output current	DC 35 mA
Efficiency	≥90%(Full load)
Mean time to failure	≥10000 hours
Response speed	≤1mS(The switching signal is given to the time that the output current rise to 90% of the set current)
Control interface	TTL Level switch control,the active level can be high or low
Pressure	AC1500V 10mA 60s;
Protect	Open for short time(Require the power supply housing to be well grounded,while avoiding arcing between the positive pole and the casing).
Using environment	Working temperature(-10~40)℃ ,Relative humidity:≤90%
Cooling form	Forced air cooling
Outline size	L×W×H=28317592(mm)
