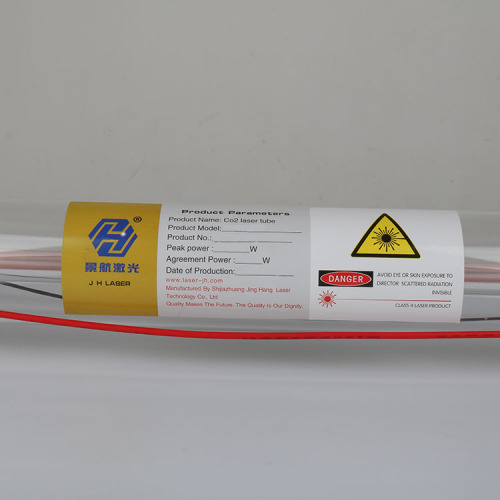

1480mm 80mm 110W laser tube replacement

J H laser company is a high-tech enterprised to manufacture co2 laser tube, reflective mirror, ZnSe focus lens.  With many years experience, our products can be used in different types of laser tube cutting machines ,such as  co2 laser fiber laser cutting machine, co2 laser carving machine, laser cutting machine, CO2 engraving machine, CO2 marking machine etc. Our products have obtained well reputation at home and abroad

     The discharge lamp from Germany and the windows lens from USA CVD ZnSe . The laser tube power is more stronger & stable.Use USA IIVI lens and windows & Germany Schott glass tube as discharge tube, performance, reliability, consistency is higher than other similar product.

JH1480 Main parameters

Model	JH1480
Length	1400mm
Pipe Diameter	80±1mm
Wavelength	10.6um
Catalyst coated	Yes
Output Power   Stable Value	110W
Max Output Power	125W
Triggering   Voltage	26-28KV
Working Voltage	20-23KV
Triggering   Current	4-5mA
Max Working   Current	28mA
Type Of Cooling	Water-cooling 15-25℃
Spot  diameter	5±1mm
Packing  size	1600mmx160mmx150mm

     1) In order to fully circulate the cooling water of the laser tube, it is necessary to ensure that the water flow enters from the low point and drain away from the high point under the pressure of the water so as to achieve the cooling of the entire laser tube.

      2) If the flow direction is opposite, it is possible that the cooling water can not fill the whole pipe,resulting in poor cooling,power reduction and the phenomenon of tube burst.

      3)If there is air bubbles in the laser tube,before the dimming,lift the water outlet side,until the bubble is completely discharged, and then fixed laser tube,please be careful not to allow residual bubbles in the laser tube.On the one hand, it will affect the light effect, on the other hand, it will lose the laser power. If the laser tube is poor cooling caused by bubble for long time, it may burst.



JH1280	1200×80	80W	110W	6
JH1480	1400×80	100W	130W	6
JH1680	1600×80	130W	150W	6
JH1660	1600×60	80W	130W	6
JH1880	1800×80	150W	180W	6

JH Laser Tube Operation Instruction

1.    Installation Requirement

Make sure to follow the operation instruction of JH Laser Tube as shown in the illustration. The dedicated power P14 should be equipped. The positive pole of laser tube is in high voltage (the ignition voltage is 24kv). It may cause the following consequence when it is failed to follow the instruction: Arcing; the inner tube will be punctured by electricity and may cause water leakage.

2.    Operation conditions

Water cooling: using purified water; 3 to 5 liter/minute; water temperature: 10℃-40℃.

The operating environment: temperature 2-40℃; humidity 10-60%.

The working current: test current is 30mA. Maximum working current is 30mA. The running current must be kept below 28mA. The life span can reach 10,000 hours if the current is kept below 26mA. The ammeter must be connected to the negative electrode of laser tube.

When it is working under over-high current for long term, the negative pole will appear brown yellow, and the life span will be shortened rapidly.

Jinghang Laser tube is best selling laser spare parts, which are widely used in laser engraving machine, laser cutting machine, laser  marking machine etc.

To protect dust from going into the insulation sheath, please wrap it with plastic film.

3.    Working Performance

Cutting function.

Engraving function: Very good. When the working current is 4mA and the tube is in the state of  preionization,  the laser can be used for high-frequency impulse engraving.

4.    Key Notes

Do not clean the exterior surface of the output widow mirror with tools such as tampon; otherwise the output power will be seriously affected. The followings are the designated methods to clean up pollution in the exterior surface of window mirror:

1) When the mirror is polluted, do not turn on the laser.

2) Blow the mirror surface sideways with an air blower.

3) Spray the pure alcohol on the mirror surface with sprayer.

4) Turn on the laser after the alcohol gets fully volatilized.

5) If the methods above don't work effectively, it is necessary to ask for the professional to use tampon with alcohol to clean the mirror surface from middle to edge. The best solution is to prevent the window from being polluted.

Attention: it is forbidden to clean the mirror with acetone.

The screws in the front and back ends of the laser tube are not allowed to be moved, otherwise the out power will be declined, even the tube will be scrapped.

Put the  acryl 300mm far away from output mirror, when testing its laser spot.

5.    Safety

The laser beam is invisible light. Please wear protective glasses when debugging the laser. The positive pole is in high voltage. Pay attention to the security marks.

6.    Storage and Transportation Requirement

Pour out cooling fluid in the event of storage and transportation, and cover the output terminal with a dust-proof plastic bag. The storage environment is 2-40℃, and the requested humidity is 10-60%. Pack the laser as in the original way.

Important notes: it is requested to use adhesive tape to cement the sponge together with laser tube to prevent the tube from vertically sliding during transportation. The sponge in the side of output mirror must be 70 mm beyond it, and the sponge in the side of reflecting mirror must be 50 mm wider.

   Tubes operated in wrong way are not guaranteed by Manufacturer.
