Butt Fusion Welding Machine

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CFR, CIF, FCA, CPT, CIP

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 5 Days

Transportation:: Ocean, Air

Port:: SHANGHAI, NIGNBO, QINGDAO

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	HEBEI,CHINA
Productivity:	300SETS
Supply Ability:	300SETS
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,FCA,CPT,CIP
Certificate:	CE,ISO
HS Code:	85158090.90
Transportation:	Ocean,Air
Port:	SHANGHAI,NIGNBO,QINGDAO

Product Description

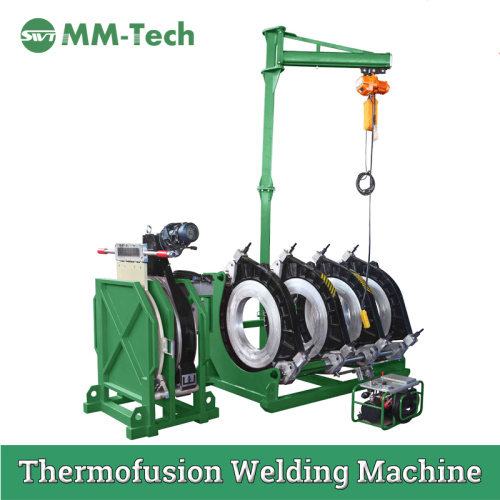

SWT-B1000/630HC Butt Fusion Welding Machine

MM-Tech supply premium quality hydraulically operated Butt Welder Machine Poly Fusion Welder ,suitable for Welding Machine Hdpe Pipe PE and PP pipes and fittings.High quality design and construction provide an excellent michine for welding both on the worksite and in the factory.The use of high quality Aluminum castings allows for lower weight without compromising strength and performance. Removable cast Aluminium PTFE coated heating plate with electronic temperature control.

1000

Application and Features

1.Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop.
2.Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
3. Removable PTFE coated heating plate with high accurate temperature control system;
4. Electrical planing tool.
5. Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.
6.Low starting pressure ensures reliable welding quality of small pipes.
7.Changeable welding position enables to weld various fittings more easily.
8.High accurate and shockproof pressure meter indicates clearer readings.
9.Separate two-channel timer records time in soaking and cooling phases.

Optional parts:
1. Tube end device for short flange.
2. Data logger.

Technical Parameters For 1000mm Butt Fusion Welding Machine For Pp Pe Pvdf Pb Plastic Pipes
Pipe size(mm)	630,710,800,900,1000	Heating plate max. temp.	270°C
Working voltage	380V,3P,50/60Hz	Heating plate power	17.5KW
Temp. deviation in surface	<±10°C	Hydraulic unit power	3.0KW
Pressure adjustable Ranges	0-16Mpa	Planing tool Power	3.0KW
G.Weight/PKG	2600Kgs/5 Wooden Case	Crane power	0.5KW
Volume	8.39CBM	Total power	24KW

Company Profile

Greeting from MM-Tech in China!

MM-Tech is one of comprehensive manufacturer of Thermoplastic Welding Equipment and an experienced professional exporters in China.

Our main products: butt fusion machine,socket fusion machine,electrofusion machine, hot air welders,hot air welding machine, extrusion welders, geomembrane overlap wedge welders,band saw,cutting machine,& welding accessories.

If you are interested in any of our products, or require any further information, please feel free to contact us today.You are welcome to cooperate with us to create a new chapter together. Thermoplastic welding equipment's One stop sourcing platform,MM-Tech will serve world thermoplastic material industry. Make MM-Tech your first choice when sourcing for your requirements.

Pe Pipe Welding Machine Services

The Hdpe Pipe Welding Machine was designed in according to the international standard : ISO21307:2011(E),ISO12176-1 and DVS2207-1(08/2007).

International Warranty:24 months

Any parts borken or does not work under normal operating,we are free to provide.
