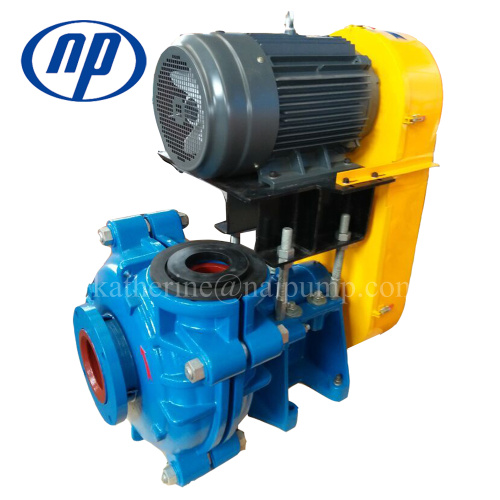

6/4WARHT mining pump mixed sand pump
-
$3800.00≥1 Piece/Pieces
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Land, Air, Express, Express
- Port:
- Tianjin, Qingdao, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 200sets per month |
| Supply Ability: | 200Sets per month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,Express Delivery |
| Certificate: | ISO , CE |
| HS Code: | 8413709990 |
| Transportation: | Ocean,Land,Air,Express,Express |
| Port: | Tianjin,Qingdao,Guangzhou |
Naipu 6/4W RT mining pump mixed sand pump
4/3MW RT-HA Slurry Pump, 6/4MW RT-HA sludge pump, 6/4 MW RT-HA sewage pump, 6/4MW RTHA gold mining pump
6/4 MW RT-HA Mining Pump for flotation machine.
Ultra slurry pump for gold mining plant
Slurry pump Impeller part code:
| NPW RT impeller part no. | Standard impeller part no. | NPW RT throatbush part no. | Standard throatbush part no. |
| C2145MW RT1A05 | C2147A05 | C2110W RT1A05 | C2110A05 |
| D3145MW RT1A05 | D3147A05 | D3110W RT1A05 | D3110A05 |
| E4145MW RT1A05 | E4147A05 | E4083W RT1A05 | E4083A05 |
| F6145MW RT1A05 | FAM6147A05 | F6083W RT1A05 | F6083A05 |
| FAM8145MW RT1A05 | FAM8147A05 | G8083W RT1A05 | G8083A05 |
| G8145MW RT1A05 | G8147A05 | G8083W RT1A05 | G8083A05 |
| G10145MW RT1A05 | G10147A05 | G10083W RT1A05 | G10083A05 |
| G12145MW RT1A05 | G12147A05 | G12083W RT1A05 | G12083A05 |
| GAM14145MW RT1 | GAM14147A05 | H14083W RT1A05 | H14083A05 |
| H14145MW RT1 | H14147A05 | H14083W RT1A05 | H14083A05 |
1) Material: MA05, A06, A07, A12, A14, A25, A33, A49, A51, A61, Cr24, Cr26, Cr27, Cr30, Cr28, Cr36, W1, W2, NA, Cr15Mo3, R08,
R24, R26, R33, R38, NR55, R66, S01, S10, S12, S21, S31, S42, S44, S50, U01, EPDM, PU, CR, Hastelloy 276-C, Ferralium...
2) Shaft material: 45#, 40Cr, SS304, SS315...
3) Shaft sleeve material: 3Cr13, 4Cr13, SS304, SS316...
4) Lantern ring material: 304, 316, PTFE, Cu...
5) Bearing housing/ bearing end cover material: G01, D21...
6) Wet end part material: MA05, A07, A49, A51, A33, A61, R08, R26, R33, R38, NR55, S01, S12, S21, S42, S50, U01, EPDM, PU, CR...
7) Vanes from 3-6. It depending on the size of the particles in the slurry.
8) Impeller type including Close, Semi-open and Open type. Impellers are generally closed because of higher efficiencies and are less
prone to wear in the front liner region. Open impellers are more common in smaller pumps or where particle blockage may be a problem
or where the shear provided by an open impeller is an aid to pumping froth.
WARHT Slurry Pump performance parameters
|
Type |
Allowable mating max. Power (kw) |
Clear Water Performance |
Impeller |
|||||
|
Capacity m3/hr |
Head m |
Speed rpm |
Max efficiency % |
NPSH m |
Nos of vane |
Impeller diameter mm |
||
|
3/2W-RT-HA |
30 |
40-150 |
20-85 |
1300-2700 |
55 |
4-6 |
5 |
214 |
|
4/3W-RT-HA |
30 |
86.4-198 |
9-52 |
1000-2200 |
71 |
4-6 |
5 |
245 |
|
6/4W-RT-HA |
60 |
162-360 |
12-56 |
800-1550 |
65 |
5-8 |
5 |
365 |
|
8/6W-RT-HA |
300 |
360-828 |
10-61 |
500-1140 |
72 |
2-9 |
5 |
510 |
|
10/8W-RT-HA |
560 |
612-1368 |
11-61 |
400-850 |
71 |
4-10 |
5 |
686 |
|
12/10W-RT-HA |
560 |
936-1980 |
7-68 |
300-800 |
82 |
6 |
5 |
762 |
|
14/12W-RT-HA |
560 |
1260-2772 |
13-63 |
300-600 |
77 |
3-10 |
5 |
965 |
|
16/14W-RT-HA |
1200 |
1368-3060 |
11-63 |
250-550 |
79 |
4-10 |
5 |
1067 |
6/4 WARHT Pump impeller / Slurry Pump Parts Material Selection
|
|
Liner |
Impeller |
Casing |
Base |
Expeller |
Expeller Ring |
Shaft Sleeve |
Seal |
|
Standard |
Chrome Alloy Natural Rubber |
Chrome Alloy Natural Rubber |
SG Iron |
SG Iron |
Chrome Alloy SG Iron |
Chrome Alloy SG Iron |
SG Iron |
Rubber Nitrile |
|
Options |
Ferralium Hastelloy C 316 SS W151 Polyurethane Neoprene Butyl Viton Nitrile EPDM Hypalon |
Ferralium Hastelloy C 316 SS W151 Polyurethane Neoprene Butyl Nitrile Hypalon |
SG Iron Various grades |
MS Fabricatd Cast Iron |
NI Resist Ferralium Hastello C Polyurethne |
NI Resist Ferralium Hastelloy C 316 SS Rubber W151 Polyurethane Neoprene Butyl Nitrile |
EN56C Ferralium Hastelloy C Titanium 316 SS 304SS |
Ceramic Stellite Chrome Oxide Nordel Neoprene Viton |
Q1. How slurry pump works?
A: HH slurry pumps are those of cantilever, horizontal and centrifugal ones, which are widely used to transport corrosive/ abrasive and high concentration slurry in many industries.
Q2. How to gurantee the quality?
A: All our pump and spare parts pass ISO 9001:2008 and CE certificate. Warranty time is 12 month except wet end parts.
Q3. What information should be known if I want to get a quotation?
A: Pump working conditions, Usage , Pump Capacity, pump Head , Slurry SG, The More the Better. Please offer me the type of the used pump that working now.
Q4. Manaufacturer or trader?
A: Manufacturer of couse. Our Factory located in Shijiazhuang, Hebei , China. Welcome to visit.
Q5. Your company product range?
A: Centrifugal pump, Slurry pump, Sand pump, Gravel pump, Dredging pump, Clean water pump, Sewage pump, Chemical pump, Single stage pump, Double suction pump, Industry pump, Paper pulp pump, Mud pump, Sludge pump, etc
Q6. Delivery time:
A: For the Common Slurry pump and spare parts , the delivery time within 7-15 days. Special material and OEM production is longer.
Any question please contact Katherine Hou freely.
