gravel pump 8/6E-G dredger pump

gravel pump or sand pumps is one type of dredging pumps , dredger pumps, used for water with sand , it is single casing with impellers than can pass big particles.

Structural features of G(H) Gravel pump,sand pump

A, The bolt connect the high strength fram and cylinder bearing assembly are easy to installation and disassemble, and also easy to adjust the impeller clearance.

B, The discharge direction of pump can be oriented in any direction, easy maintenance.

C, Packing seal and expeller seal are optional according to the requirment.

D,The wet-parts as casing,impeller,front/back liner are made of high chromium abrasive-resistance alloysthat ensure the longlife.

E,The design of this pump is single casing and wide wet-passage that ensure the pass of  large particles, goodperformance of NPSH and high abrasion- resistant.

G(H) high head gravel pump, high head sand pump description:

Type G(H) gravel pumps are single-stage, single-suction, cantilevered, horizontal, centrifugal slurry pump. They are designed for continously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by common pumps. They are suitable for delivering slurries in Mining, Explosive sludge in metal melting, Dredging in dredger and course of rivers, and other filed. This series of pump especially suitable for the high flow, high concentration and high head working condition, good performance of NPSH and high abrasion- resistant, can be widely used in high temperature and strong abrasive slurry transportation.

G(H) gravel pump detail parameters:

Select chart of G(H) gravel pump:

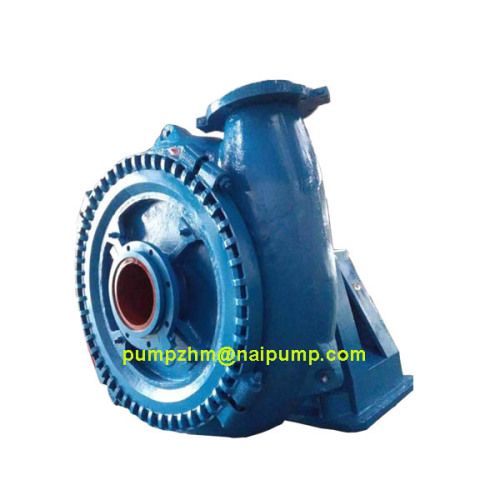

Pictures of G(H) gravel pump, sand pump, high head gravel pump, high head sand pump:
