end suction Slurry Pumps Agitating Water Pump
-
$3800.00≥1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Land, Air, Express, Express
- Port:
- Tianjin, Qingdao, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 200sets per month |
| Supply Ability: | 200Sets per month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,Express Delivery |
| Certificate: | ISO , CE |
| HS Code: | 8413709990 |
| Transportation: | Ocean,Land,Air,Express,Express |
| Port: | Tianjin,Qingdao,Guangzhou |
Shijiazhuang Naipu Pump Co., Ltd is a modern pump industry enterprise engages in professional
manufactore, scientific research, develop, sales and service.
Our company is specialized in manufacturing: Slurry pump and Slurry pump parts, Dredging pump and
Dredging pump parts, are widely used in mine, metallurgy, coal, electric power ,dredge and other sectors of the national economy. These pumps are sold to South America, Africa, Southeast Asia, Russia and so on more than
20 countries and regions. Our products have won unanimous favorable comments from the market.
The quality management systems of Naipu pump are accredited to ISO 9001:2000.
Naipu Pump also Accept OEM (Original Equipment Manufacture)Order,such as the shafts,shaft sleeves,bearing housing,etc. We also can design and produce the compelete pumps for your special need.

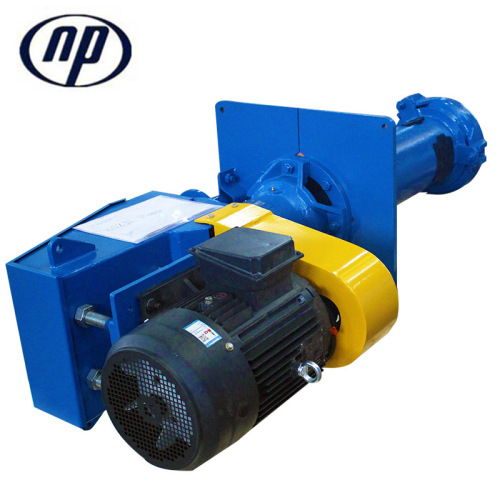

1.Naipu NP-SP/SPR Vertical sump pump
|
vertical slurry pumps |
|
|
vertical slurry pumps model |
40PV-SP(R),65QV-SP(R),100RV-SP(R),150SV-SP(R) |
|
Material |
Cast iron or rubber or customized |
|
Color |
Green and adjustable |
| Shaft |
Vertical |
|
Impeller |
Semi-open impeller |
|
Drive |
Belt or coupling |
|
Speed |
400r/min-2200r/min, adjustable |
|
Theory |
Centrifugal pump |
|
Structure |
Single stage pup |
|
Usage |
Slurry, mud |
|
Power |
Electric or diesel |
|
Standard or Nonstandard |
Standard |
|
Application |
Mine, coal industry, power station |
|
Outlet diameter |
40-200mm |
|
Capacity |
7.5-828m³/h |
|
Head |
4-37m |
|
Power |
1.1-185kw |
|
Warranty |
1year |
|
Certificate |
ISO9001 |
|
OEM |
Acceptable |
|
Feature |
Abrasion resistant, no clogging |
2.Application
The SP SPR series vertical slurry pumps are suited for handling abrasive or corrosive, dense slurry with large particle size, SP (SPR) vertical sump pump are mainly applicable to transport abrasive, coarse particle, high concentration slurry. They are widely used in metallurgy, mining, coal, electric power, building materials, environmental protection and other departments
1.Widely used for electric power.
2.Widely used for building materials.
3.Widely used for metallurgy.
4.Widely used for mining.
5.Widely used for coal.
3. Materials of Construction for Naipu NP-SP vertical slurry pumps
|
wet end parts (Impeller/casing/back and front liner) |
COLUMN | DISCHARGE | SEALS | |
| Standard | Metal(A05/A07) Rubber(R08/R26/S42/S31,etc) |
Mild Steel Mild Steel Rubber Lined |
Mild Steel Mild Steel Rubber Lined |
Natural Rubber |
| Special requirements |
EPDM Hypalon Polyurethane 316 SS W 151 |
Nitrile 316 SS |
Nitrile 316 SS |
EPDM |
4. Construction drawing of SP/SPR pump
| 1.Shaft | 2.Bearing assembly | 3.mounting plate |
| 4. support | 5.seal gasket | 6.Back Guard Plate |
| 7.impeller | 8.pump body | 9.Filter Screen |
| 10. discharge pipe |
| 1.mounting plate | 2.Back Guard Plate | 3.impeller | 4. pump body | 5. filter screen |
Our factory:
Naipu metal parts production process for NP- AH/SP/G series centrifugal slurry pumps
Why choose our Shijiazhuang Naipu Pumps and parts,and our services?
- We don't tie our clients into expensive service contracts.
- We believe in working with our clients as and when they require our services.
- We make it very clear what you do and do not need to spend money on and ensure that you get the maximum return out of your investment in your pumps.
- We offer a 5 Year Warranty on our Slurry pumps which is unique in the industry.
- We are committed to being the easiest company in the industry to deal with as well as the friendlies.
How to contact us?
*Add my Skype:Bobo chen
*whatsapp:0086+15831957886
