NP-OH2 Process Pump

$3000.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

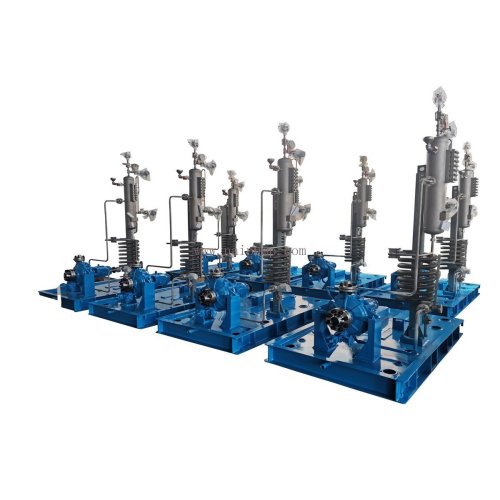

OH2 series pump Foot-mounted, single-stage overhung pump

The pump is a single-stage, horizontal, radially split volute pump. The pump body adopts foot support, and the impeller adopts single suction radial type. It is closed or semi-open. Fluid is sucked in from the axial direction and discharged from the radial direction.

Applications：

Oil & Natural gas

Petroleum & Petrochemical

Pulp & Paper

Electric power industry

Chemical process industry

Water supply and drainage

General industries

Design Features：

Flange configuration conforms to ANSI / DIN / ISO standards.

Mechanical seal chamber size conforms to ISO21049 (API682).

Closed,open,semi-open impellers are optional to meet different media conditions.

Double volute design can be selected to balance radial force when outlet size larger than 80mm.

Inducer structure is used when there is low NPSHa.

Impeller equipped with seal ring&balance hole,easy to replace wearing parts,mechanical seals and bearings service longer life.

Design Parameters：

Capacity (Q): 2～2600 m³/h

Head (H): ～250 m

Operating Pressure (P): ~2.5 Mpa

Operating Temperature (T):－20℃～+180℃

Certification

Quality Management System Certificate-2024

Environmental Management System Certificate-2024

Naipu® History

1981~1999 Shijiazhuang Pump Work Factory got license produce Warman Pumps,KSB KWP, RITZ,Kubota,coordinate produce OEM Goulds,Magnum,Russia ZSP

2002~ Shijiazhuang Pump Work Factory was closed down and the brands production license expires at the same time.After,workers build new factory called Naipu® Pump,and design new Naipu® NA,VS,VF,NE,NF,NH,NL,NM etc series slurry pumps.

2003~2005 Naipu® Pump take part in some important projects in the national economy,such as Ti-Ni ore Taiyuan,Gold Mine Heihe,Power Station Beijing,etc.

2005~2015 Naipu® Pump develop and devoted to be a highly responsible and qualified supplier to service Global Customers.Successful design OEM produce Naipu® NC,NI,N2500,NX,N3175 mud and chemical pumps,hydrocyclone,water pumps.

2015~2020 Naipu® Pump bulid new environmentally friendly factory which workshop 60,000 m2,prefessional workers 200,manufacturing equipments 110 sets,Annual production capacity 8,000 set pumps,8,000 tons spares.

2021~ Naipu® Pump will continue to be pragmatic and enterprising,and serve every customer well.
