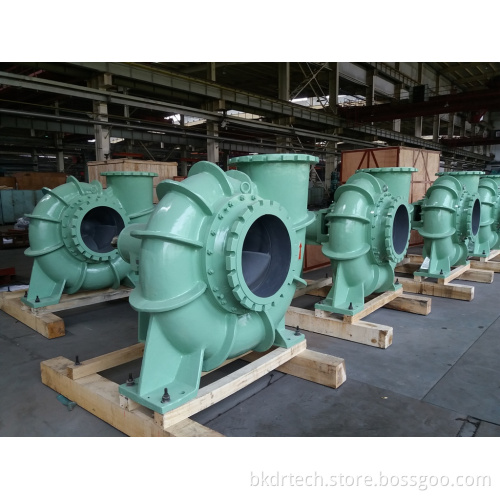

Desulfurization slurry pump (FGD)

Series of TL FGD pump is a single stage single suction horizontal centrifugal pump. It is mainly used as the circulating pump for absorbent tower in FGD appliances. It has such features: wide range flowing capacity, high efficiency, high saving power. TL series pump is matched by tight structure X bracket which can save much space.

 EX:

600X-TLR The diameter of discharge: 600mm, Rubber liner; bearing lubricating way: Diluted oil ( Thin- oil)

600X-TL The diameter of discharge: 600mm, Metal liner; bearing lubricating way: Diluted oil ( Thin- oil)

 Technology features

The pump wet parts are designed by advanced CFD flowing simulating analysis technology to ensure the design reliable and working effective.

It can change the impeller`s position in pump casing by adjusting the bearing unit to keep the pump working high efficiently all the time.

This kind of pump adopt back pull out structure, keeping the simple structure and easy maintenance. Not need disassemble inlet and outlet pipeline.

 Two sets of taper roller bearing is fixed at the end of the pump, the column roller bearing is equipped at driving end. The bearing is lubricated by thin oil. All these can improve the bearing working condition and enhance the service life greatly.

 Mechanical sealing is adopted integrating mechanical sealing which is specialized in FGD technology to ensure its working.

Material selection:

Our company developed the special anti wear and anti corrosive material which own the duplex stainless steel`s anti-corrosive property and the high chrome white iron`s anti abrasive property in FGD process.

In the rubber pump casing, impeller, suction cover / cover plate are all made of specialized anti-wear and anti-corrosive material ; the material of front liner, back liner and back liner insert are natural rubber with light weight and natural, having excellent anti-corrosive property and low cost.

In metal pump casing, impeller, volute liner, suction plate and back plate are all made of specialized anti wear and anti corrosive material, the suction cover are made of ductile iron with rubber.

FAQ:

Q: How about payment terms?

A: 30% TT deposit + 70% TT before shipment,50% TT deposit + 50% LC balance, Flexible payment

can be negotiated.

Q: Installation and commissioning?

A: We will send our engineer for installation and commissioning, but relevant cost will be paid by you.

Q: Do you have some videos where we can see the line producing?

A: Yes, we can provide some videos for reference.
