High Quality Specific Wheat Seed Grain Gravity table

High Quality Specific Wheat Seed Grain Gravity table

Introduction of 5XZ-5B Gravity Table:

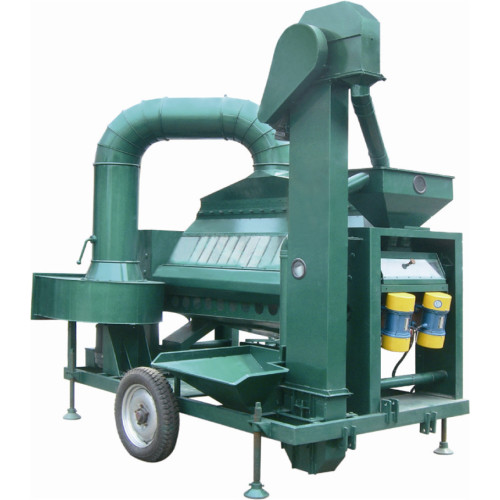

The 5XZ-5B Gravity Table is the suction type gravity table with closed air system protecting environment. 5XZ-5B Gravity Table is movable machine mounted on elevator and wheels, suitable for plant, field working and remote area.

Application of  5XZ-5B Gravity Table:

The 5XZ-5B Gravity Table can be used effectively to remove partially eaten, immature shriveled or broken seeds to ensure maximum quality of the final product.

Working Principle of 5XZ-5B Gravity Table:

By air aspiration and sieve oscillation, the seed is fluidized and stratified. Heavy seed (good seed) sink into bottom layer of material on the sieve while the bad seed (light seed) suspends to the top layer. After stratified, materials go forward to the discharging part. Bottom layer good seed fall through the sieve discharge from outlets. The light seed with bad quality will be discharged directly. Mixture quality seed through sieves and return back to feeding hopper via vibrating material reflow gear.
