Basic Info

Place of Origin:	China
Productivity:	50 sets/month
Supply Ability:	50 sets/month
Payment Type:	L/C,T/T,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF
Certificate:	ISO9001, TUV, SGS, CE, SONCAP, CIQ
HS Code:	8437109000
Transportation:	Ocean,Land,Air
Port:	XINGANG,CHINA

Product Description

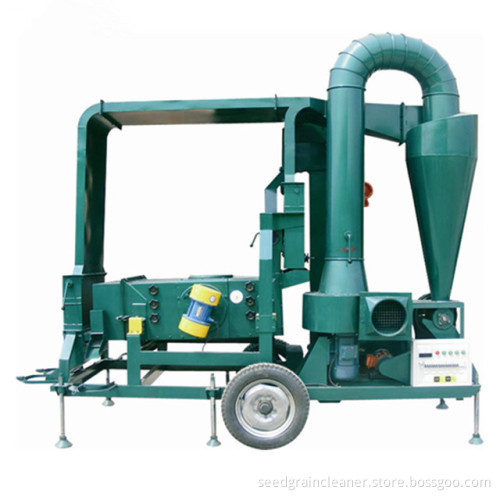

Crop Grain Seed Cleaning Machine /Products /Equipment

Introduction of Grading Machine

Grain Seed Cleaner Machine is used for cleaning and grading seeds, grains, cereals, beans, species and other granule material.

Features of Seed Processing Machine

Grain Seed Cleaner & Grader can be installed Customized various sieve's size and amount of sieve layer that make the seed cleaning machine has wide range of applications and high grading efficiency.

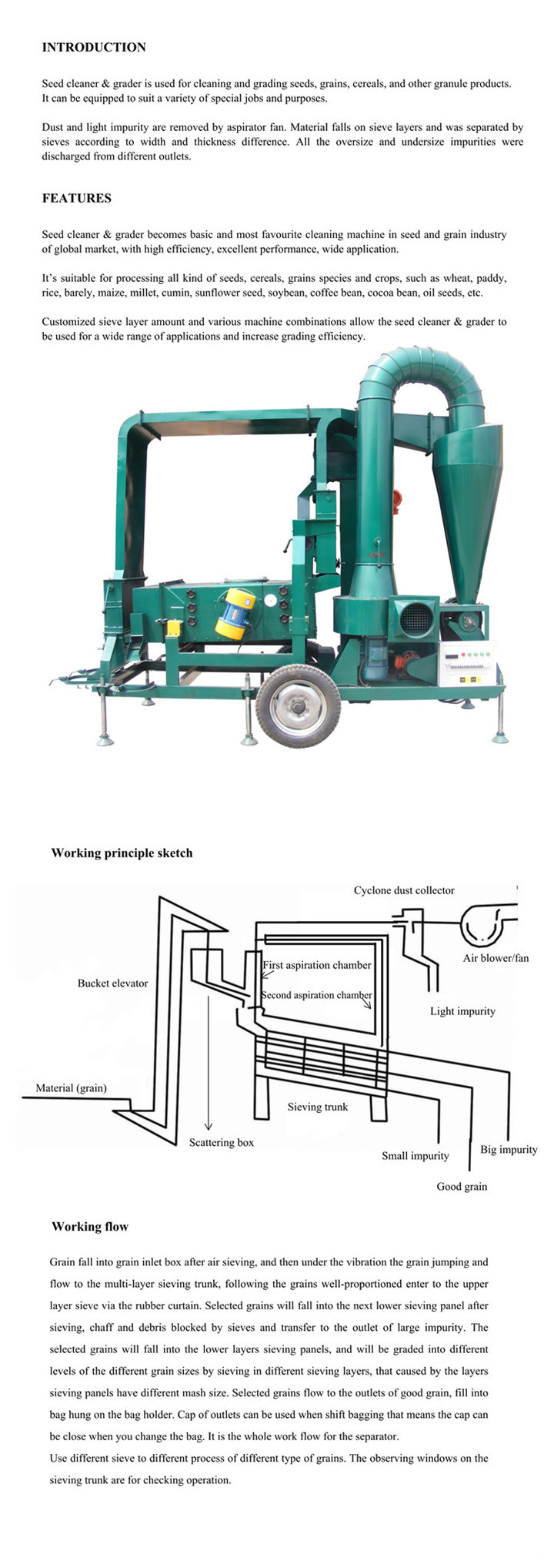

Working Principle

After fed into machine by bucket elevator, the dust and light impurity were removed by air aspiration system, and then materials enter to sieving trunk which has multi sieve layers, finally the material was graded to different level by size, at the same time all the oversize and undersize impurities were removed.

Specification of Grain Sorting Machine

Model	5XZC-3DS
Capacity	3 tons per hour
Power	7.5 kw
Weight	1400 kg
Dimension	447018002850 mm
Dimension of sieves	1250*800 mm

Data of Similar Products

Model	Capacity (tons/hour)	Power (KW)	Weight (KG)	Dimension *LengthWidthHeight (mm)*	Feature
5XZC-3DS	3	7.5	1400	447018002850	Double Air Cleaning System
5XZC-5DH	5	7.74	1600	497019003100	Installed Cyclone Dust Separator
5XZC-5CDH	5	11.74	1700	497019003100	Installed Wheat Huller
5XZC-7.5D	7.5	10.1	1700	560020003200	Installed Cyclone Dust Separator
5XZC-7.5DS	7.5	9.9	1770	392024303440	Double Air Cleaning System
5XZC-15	10	10.5	1800	560021003200	Installed Cyclone Dust Separator
5XZC-25	20	19.45	2900	582026503600	Double Cyclone Dust Separator
5XZD-15AC	20	20.9	3000	514023403820	Double Sieving Trunks
