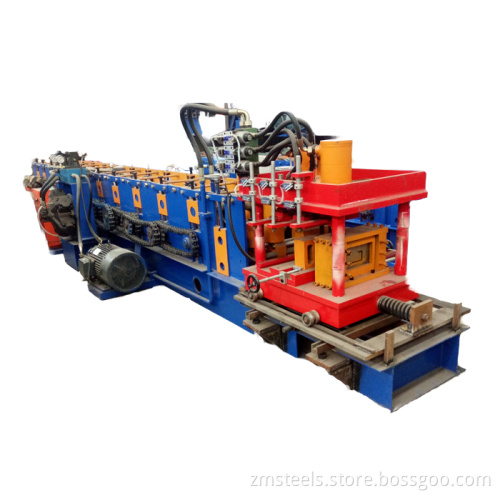

hot sale customized rollformer for iron C type

hot sale customized rollformer for iron C type

Material:

Color Coating Galvanized Steel Coil& galvanized steel coil

1. Technique parameters of the processing line

Model No.:Metal Professional Building Deck Floor Roll Forming Machine

Main moter power:22KW

Hydraulic station power:5KW

Hydraulic oil pump:CB-E310

Shearing die:Gr12

Sprocket:P-30.8(2 inch)

Transmission mode:chain

The bearing capacity of manual decoiler:5 Tons

Roller station:24rows

Main frame structure:400 H Steel Beam

Diameter of principal axis:90mm

Material of roller:45#steel hard chrome/Hardness HR55°-57°/Solid shaft
Processing speed:12 m/min

Material: Galvanized Steel Coil/ Prepainted Galvanized Steel Coil

Thickness:0.8-1.2mm

Appliance: Steel Roofing Sheets

Installation dimension about(L*W*H):1300mm*1300mm*1300mm

Total weight:About 12 Ton

Delivery time:25days

2. Components of line:

1-Decoiler-1set

2-Main machine for roll forming-1set

3-Control system-1set

4-Hydraulic system-1set

5-Post cut-1set

6-Output table-1set

3. Technical Specification

(1) Manual decoiler

     Un-powered; single head;

     Max.capacity:  5000kg

(2) Roll-Forming M/C:

Steps:12-13                       Roller Material: 45# steel

      Voltage:380V/220V 50HZ 3P    line speed: 8-12m/min

(3) Cutting Mechanism

      It adopts hydraulic drive and automatic location to decide the dimension

      and cut the target products.

      Match equipment : one set of cutting tool, one hydraulic tank ,one

     cutter machine.

      No stop to cut .Cutting tool material: GCr12

(4) Hydraulic System

      It is controlled by gear wheel oil pump. After filling the hydraulic oil

      into the hydraulic oil tank, the pump drive

      the cutter machine to begin the cutting job.

      Match equipment: a set of hydraulic tank , a set of hydraulic oil pump,

      two hydraulic pipes and two sets of electromagnetism valves.

      Power of the oil pump:3kw    Hydraulic oil :46#

(5)Computer control cabinet :

     It adopts Panasonic PLC to control. The target piece length is adjustable

    and digit of it can be adjusted.

    Computed mode has two modes: automatic and manual one.

(7) Counter :

     One counter gauges length, pulses, and decides length

(8) Output table

      It used to load the forming plate

(9)Spare parts

Oil pipe,magnetic valve,spacer

5. Packing method

    Packing: nude, with waterproof cloth and stow-wood. The computer

    controlled cabinet is packed with

    waterproof cloth and box. The seller should guarantee equipments will

    be moisture-proof, anticorrosive,

    and will not be damaged during transportation.

6. Delivery Time

    The Seller guarantees the equipment will be ready for shipment within

    25 working days after receipt of deposit from the Buyer.

7. one complete equipment need one 20 feet container to hold

8. Packing: NAKED

9.Orders & Payment Term

    30% of the total contract value paid by T/T as deposit, the rest 70% of the

     total contract value to be paid

    by T/T after inspection by buyer in seller`s factory while before delivery.

10. Guarantee:

       In correct operation and maintenance, the machine is one year guarantee

      since leaving the seller`s factory.

11. Installation:

     If buyer need, the seller will send one or two technician to the buyer`s

     factory to install & testing the machine,

     the buyer will assist the seller`s technician to get the visa and pay for

     the two-way flight tickets and local accommodation, visa cost. by the way ,

     buyer pay 100USD/day for technican extra.

12. Contact me:

Any Wave Corrugated Steel Roof Sheet profile we can do:
