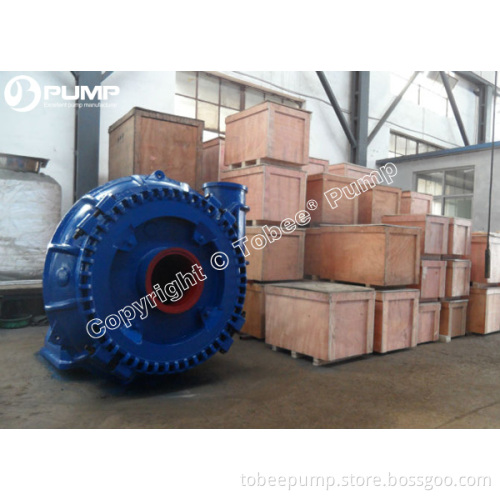

Tobee® 10x8 inch alluvial dredge pump

Tobee® 10x8 inch alluvial dredge pump has rational structure, high efficiency, reliable operation, convenient maintenance and other advantages, It is widely used for conveying abrasive or corrosive slurry, especially for dredging, mining, metallurgy, coal, electric power, building materials, chemical industry and other industrial sectors.

Tobee® 10x8 inch alluvial dredge pump Specification:

Size: 10" x 8"
Capacity: 216-936m3/h
Head: 8-52m
Speed:400-800rpm
NPSHr: 3-7.5m
Eff.: 65%
Power: Max.560kw
Handling solids: 210mm
Seal arrangement: Packing seal, Expeller seal, mechanical seal
Materials: High chrome alloy, Cast iron, Cast steel, Stainless steel etc

Tobee® 10x8 inch alluvial dredge pump Design Features:

• TG gravel pump uses modern CAD design method, and has excellent hydraulic performance, high efficiency, and low wear rate.
• TG gravel pump has wide runner, good anti-clogging performance, and excellent cavitation performance.
• TG gravel pump uses expeller and filler combined seal and mechanical seal, ensuring that the slurry doesn't leak.
• The reliability design greatly improves mean time between failures (MTBF) of complete machine.
• TG gravel pump uses thin oil lubrication metric bearing, and rationally sets lubrication and cooling system to ensure that the bearing operates at low temperature.
• Flow passage components are made of special materials, so they have good wear resistance and corrosive resistance; after special processing, they are used for seawater dusting, and seawater and salt mist electrochemical corrosion conditions.
• In allowable pressure range, it can be used in series in stages, and allowable maximum working pressure is 3.6Mpa.

Tobee® 10x8 inch alluvial dredge pump Performance Parameter:

Tobee® 10x8 inch alluvial dredge pump Structural Drawing:

Tobee® 10x8 inch alluvial dredge pump On-site Applications:
