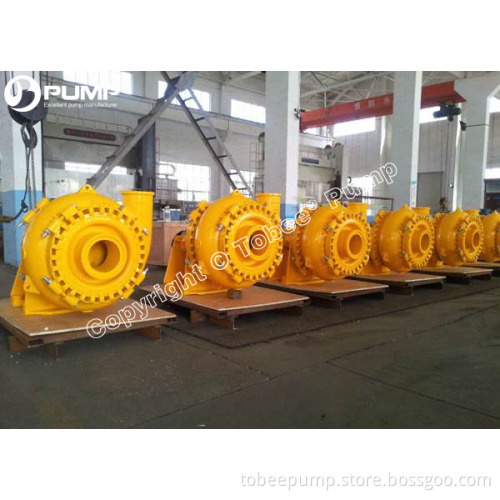

Tobee® 12x10 inch alluvial dredge pump

Tobee® 12x10 inch alluvial dredge pump is a single stage, single casing, centrifugal horizontal pump driven by electric motor diesel engine. Large flow passage allows large particle solids, with advantages of high efficiency, wear resistant, wide flow channel, good ability of NPSH, stable performance, easy assembly, The discharge outlet can be adjusted at any direction, It is world`s standard for dredge, gravel or large particle slurries applications.

Tobee® 12x10 inch alluvial dredge pump SPECIFICATIONS:

Size: 12" x 10"
Capacity: 288-2808m3/h
Head: 10-80m
Speed: 350-850rpm
NPSHr: 1.5-4.5m
Eff.: 73%
Power: Max.600kw
Handling solids: 220mm
Seal arrangement: Packing seal, Expeller seal, Mechanical seal
Materials: High chrome alloy, Cast iron, Cast steel, Stainless steel etc

Tobee® 12x10 inch alluvial dredge pump Design Features:

• Advanced hydraulic model, CAD 3D design, high efficiency and obvious energy-saving
• Large dredging sand depth, high density of dredging mud, good pump NPSH and strong suction lift ability.
• Strong through-put, The dredging pump can persistently discharge gravel, high plastic soil lump,etc.
• Wide application, The sand pump can be used in various kinds of soil quality.
• The TG sand pump can be directly matched with electric motor or diesel engine.
• The TG sand pump impeller is 3 or 5 vanes for large particles delivering.
• Little hydraulic loss, high efficiency and low oil-consumption.
• Steady operating, little vibration, low noise.
• Simple & reliable constrution, easily disassembly & assembly,convenient maintainc
• Reliable sealing without leakage.
• Long operating life of wear parts.

Tobee® 12x10 inch alluvial dredge pump Performance Parameter:

Tobee® 12x10 inch alluvial dredge pump Structural Design:
