Superior portable high quality hose guard
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, FCA, CPT
- Min. Order:
- 1000 Meter
- Min. Order:
- 1000 Meter
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land, Air, Express delivery
- Port:
- TianJin, Qingdao, NingBo
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Hebei |
|---|---|
| Productivity: | 50000 M/Month |
| Supply Ability: | 50000 M/Month |
| Payment Type: | L/C,T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,FCA,CPT |
| Certificate: | ISO |
| Transportation: | Ocean,Land,Air,Express delivery |
| Port: | TianJin,Qingdao,NingBo |

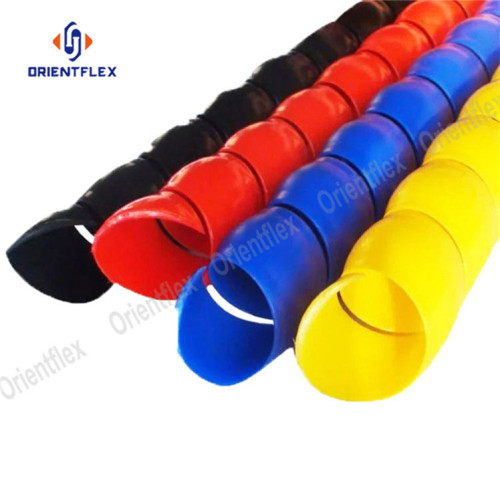

Performance of Protective Hydraulic Hose Sleeve:
1)Exterior surface:Spiral wrap surface smooth, no lack of material, cracks, damage and glitches; no foaming and uneven; no impurities and variedness
2)Shore hardness is generally 85 to 90 degrees
3)Good resistance to high and low temperature performance
4)Good oil resistance
5)Good abrasion resistance
6)Good tensile strength and impact resistance.Tensile strength at room temperature is generally 25 ~ 30Mpa;Impact strength(unnotched):continue
7)Has good UV resistance. Black spiral protection sleeve product line by adding a certain ratio of carbon black to enhance the spiral wrap UV protection properties. This is the black spiral wrap sleeve protective cover than the other colors better UV performance reasons
8)Good anti-static property
Recommended For
The use of Spiral Guard Wrap is an economical and convenient method of protecting and extending the life of hydraulic and pneumatic hoses, cables, wires and rope from premature wear. Manufactured from extruded high density polyethylene (HDPE), Spiral Guard Wrap will withstand the extremes of climate and operating conditions.Spiral Guard Wrap protects against abrasion, cuts, crushing, UV and various hazards Spiral Guard Wrap's open spiral design allows for simple installation in the field, without the need to disconnect lines.
Materialhigh-density Polyethylene, spiral-formed protection system, wear, cut, and crush-resistant
polymer Tensile Strength 25MPa at room temperature.
Application
Mining, equipment, forestry, agriculture, trucking, automotive applications.
Specifications
Item Code
I.D
Thickness
Width
Applied for
mm
inch
mm
mm
mm
HPS-8
8
5/16"
1.5
7
8-10
HPS-10
10
3/8"
1.5
10
10-12
HPS-12
12
1/2"
1.5
12
12-14
HPS-14
14
11/20"
1.5
13
14-16
HPS-16
16
5/8"
2
15.5
16-18
HPS-18
18
3/4"
2
16
18-20
HPS-20
20
4/5"
2.2
16
20-22
HPS-22
22
43/50"
2.2
19.5
22-25
HPS-25
25
1"
2.2
22.5
25-28
HPS-28
28
1-1/10"
2.2
23
28-30
HPS-30
30
1-9/50"
2.5
23
30-32
HPS-32
32
1-1/4"
2.5
23.5
32-35
HPS-35
35
1-19/50"
2.5
24
35-38
HPS-38
38
1-1/2"
3
28
38-40.42
HPS-40
40
1-29/50"
3
28
40-42
HPS-42
42
1-13/20"
3.5
28
42-45
HPS-45
45
1-39/50"
3.5
28
45-50
HPS-50
50
2"
3.5
28
50-60
HPS-60
60
2-1/2"
4
28
60-74
HPS-74
74
2-9/10"
4
46.5
74-80
HPS-80
80
3-3/20"
4.5
48.5
80-88
HPS-88
88
3-1/2"
4.5
50
88-100
HPS-100
100
4"
4.5
57
100-130
HPS-130
130
5"
4.5
50
130-155
HPS-150
150
6"
4.5
50
150-200
HPS-200
200
7-22/25"
5
50
200
