PP hose wrap guard

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1000 Meter

Min. Order:: 1000 Meter

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air, Express delivery

Port:: TianJin, Qingdao, NingBo

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Hebei
Productivity:	50000 M/Month
Supply Ability:	50000 M/Month
Payment Type:	L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	ISO
Transportation:	Ocean,Land,Air,Express delivery
Port:	TianJin,Qingdao,NingBo

Product Description

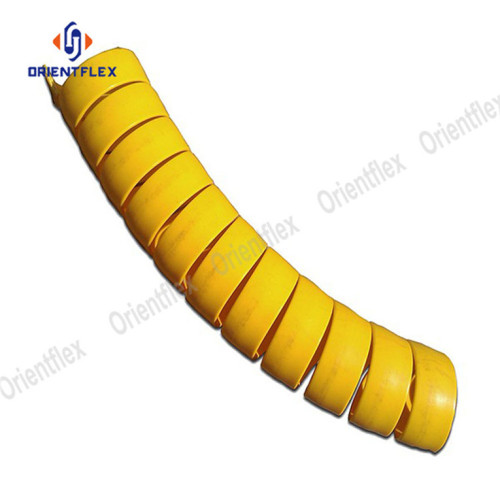

PP hose wrap guard

PRODUCT DESCRIPTION

PP hose wrap guard is great helpful to extend the service life time for hydraulic hose or other industrial. There are two kinds of the hose if checked from surface, the flat surface or corrugated surface, it is colorful, including: red, yellow, black, blue etc. It is packed by plastic bag and carton box.

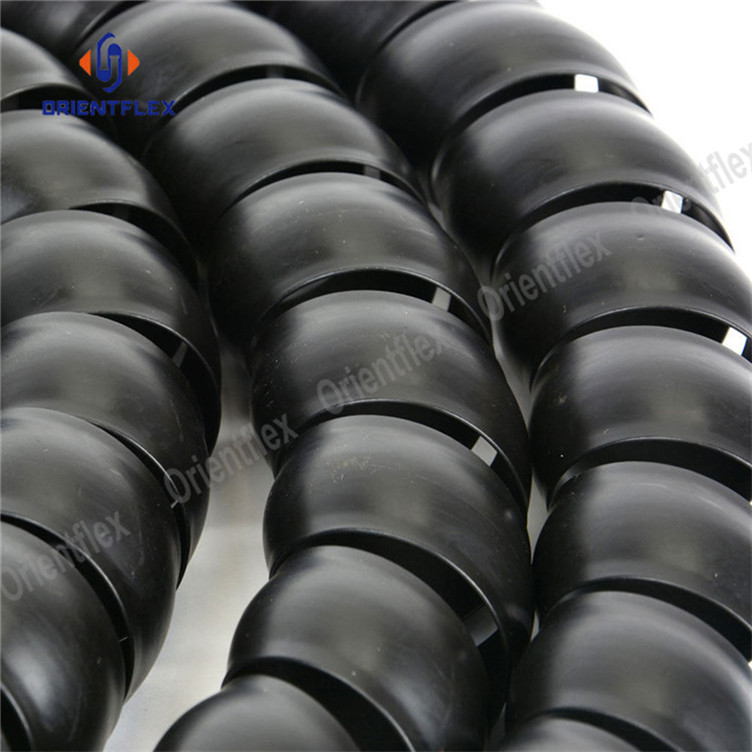

Spiral Guard Wrap protects against abrasion, cuts, crushing, UV and various hazards Spiral Guard Wrap's open spiral design allows for simple installation in the field, without the need to disconnect lines. Spiral Guard Wrap will withstand the extremes of climate and operating conditions. The use of Spiral Guard Wrap is an economical and convenient method of protecting and extending the life of hydraulic and pneumatic hoses, cables, wires and rope from premature wear. Manufactured from extruded high density polyethylene (HDPE).

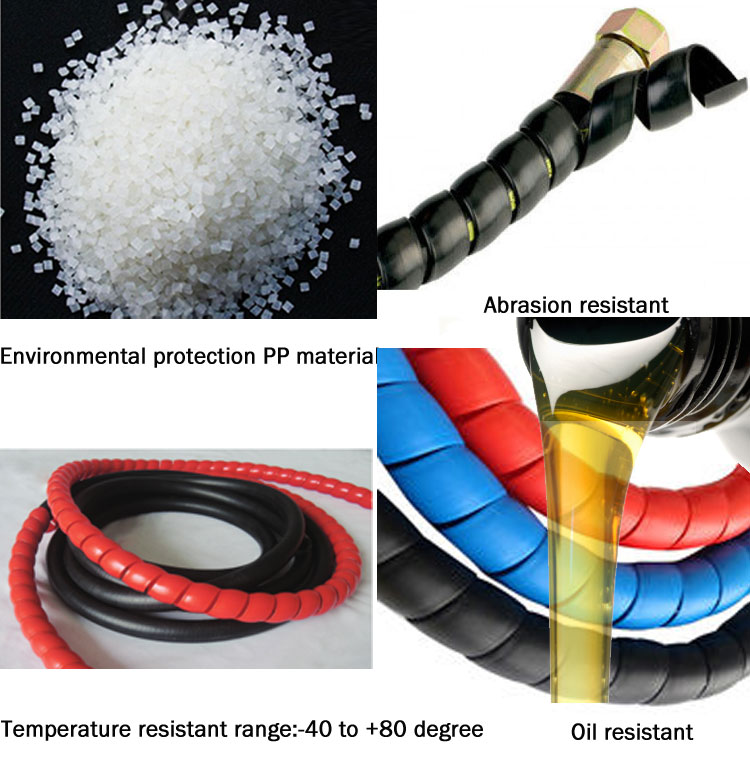

Material

high-density Polyethylene, spiral-formed protection system, wear, cut, and crush-resistant
polymer Tensile Strength 25MPa at room temperature.

Application

Mining, equipment, forestry, agriculture, trucking, automotive applications.

Hydraulic Hose Guard Application

Specifications

Item Code	I.D		Thickness	Width	Applied for
Item Code	mm	inch	mm	mm	mm
HPS-8	8	5/16"	1.5	7	8-10
HPS-10	10	3/8"	1.5	10	10-12
HPS-12	12	1/2"	1.5	12	12-14
HPS-14	14	11/20"	1.5	13	14-16
HPS-16	16	5/8"	2	15.5	16-18
HPS-18	18	3/4"	2	16	18-20
HPS-20	20	4/5"	2.2	16	20-22
HPS-22	22	43/50"	2.2	19.5	22-25
HPS-25	25	1"	2.2	22.5	25-28
HPS-28	28	1-1/10"	2.2	23	28-30
HPS-30	30	1-9/50"	2.5	23	30-32
HPS-32	32	1-1/4"	2.5	23.5	32-35
HPS-35	35	1-19/50"	2.5	24	35-38
HPS-38	38	1-1/2"	3	28	38-40.42
HPS-40	40	1-29/50"	3	28	40-42
HPS-42	42	1-13/20"	3.5	28	42-45
HPS-45	45	1-39/50"	3.5	28	45-50
HPS-50	50	2"	3.5	28	50-60
HPS-60	60	2-1/2"	4	28	60-74
HPS-74	74	2-9/10"	4	46.5	74-80
HPS-80	80	3-3/20"	4.5	48.5	80-88
HPS-88	88	3-1/2"	4.5	50	88-100
HPS-100	100	4"	4.5	57	100-130
HPS-130	130	5"	4.5	50	130-155
HPS-150	150	6"	4.5	50	150-200
HPS-200	200	7-22/25"	5	50	200

OVERALL SHOWING

ORIENTFLEX

Factory History: Established in 2006
Business Type: Manufacturer and exporter
Main Products: Small machinery such as hydraulic hose crimping machine, industrial hose, hydraulic hose, PVC hose and hose coupling.
