Product Description

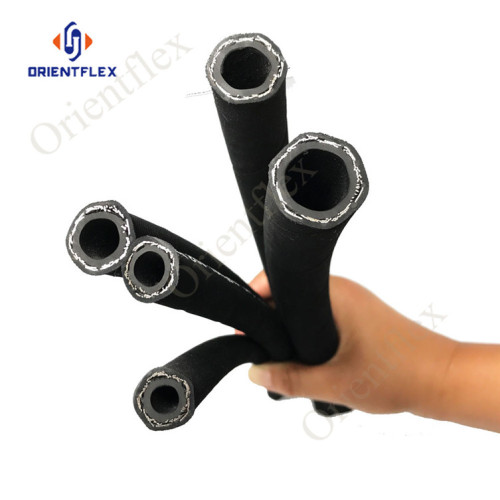

flexible R1 rubber hydraulic hose SAE 100R1AT

PRODUCT DESCRIPTION

flexible R1 rubber hydraulic hose SAE 100R1AT is made of the synthetic rubber which is excellent in oil-resistance. The burst pressure of the hose is four times or higher than the working pressure. (Pressure can be made according to the clients' demand)

Recommended For

Medium pressure hydraulic lines. Meets or exceeds the requirements of SAE 100 R1 Type AT and performance requirements of EN 853 1SN.
Application Fields
Mine hydraulic support, oilfield extraction machinery, mine/ road/ construction machinery.

Tube

Black, oil resistant, synthetic rubber.
Reinforcement
One braid of high-tensile steel wire.
Cover
Black, oil, abrasion and weather resistant, synthetic rubber.
Temperature Range:

-40℉ to +250℉ (-40℃ to +121℃)

Specifications

SAE 100 R1

Item Code	Hose ID		Hose O.D.		Working Pressure		Min. Burst Pressure		Min. Bend Radius		Weight
Item Code	Inch	mm	Inch	mm	psi	MPa	psi	MPa	Inch	mm	kg/m	lb/ft
R1-06	1/4	6.4	0.52	13.1	2785	19.2	11165	77	3.94	100	0.25	0.168
R1-08	5/16	7.9	0.58	14.7	2535	17.5	10150	70	4.53	115	0.31	0.208
R1-10	3/8	9.5	0.67	17.1	2275	15.7	9135	63	4.92	125	0.36	0.242
R1-13	1/2	12.7	0.8	20.3	2030	14	8120	56	7.09	180	0.45	0.302
R1-16	5/8	15.9	0.92	23.4	1525	10.5	1740	42	7.87	200	0.52	0.349
R1-19	3/4	19.1	1.08	27.4	1260	8.7	5075	35	9.45	240	0.65	0.437
R1-25	1	25.4	1.4	35.5	1015	7	4060	28	11.81	300	0.91	0.611
R1-32	1 1/4	31.8	1.69	43	625	4.3	2540	17.5	16.54	420	1.3	0.874
R1-38	1 1/2	38.1	1.95	49.5	510	3.5	2030	14	19.69	500	1.7	1.142
R1-51	2	50.8	2.48	63	375	2.6	1525	10.5	24.8	630	2	1.344

EN 853 1SN

Item Code	Hose ID		Hose O.D.		Working Pressure		Min. Burst Pressure		Min. Bend Radius		Weight
Item Code	Inch	mm	Inch	mm	psi	MPa	psi	MPa	Inch	mm	kg/m	lb/ft
1SN-06	1/4	6.4	0.52	13.1	3275	22.6	13100	90.3	3.94	100	0.25	0.168
1SN-08	1/3	7.9	0.58	14.7	3125	21.5	12500	86.2	4.53	115	0.31	0.208
1SN-10	3/8	9.5	0.67	17.1	2600	17.9	10400	71.7	4.92	125	0.36	0.242
1SN-13	1/2	12.7	0.8	20.3	2325	16	9300	64.1	7.09	180	0.45	0.302
1SN-16	5/8	15.9	0.92	23.4	1900	13.1	7600	52.4	7.87	200	0.52	0.349
1SN-19	3/4	19.1	1.08	27.4	1525	10.5	6100	42.1	9.45	240	0.65	0.437
1SN-25	1"	25.4	1.4	35.5	1275	8.8	5100	35.2	11.81	300	0.91	0.611
1SN-32	1 1/4	31.8	1.69	43	925	6.4	3700	25.5	16.54	420	1.3	0.874
1SN-38	1 1/2	38.1	1.95	49.5	725	5	2900	20	19.69	500	1.7	1.142
1SN-51	2	50.8	2.48	63	600	4	2700	18.6	24.8	630	2	1.344
1SN-38	2 1/2	63.8	3.03	77	360	2.5	1600	11	29.92	760	2.56	1.72
1SN-51	3	76	3.46	88	290	2	1160	8	34.65	880	2.74	1.841

OVERALL SHOWING

Process Braid

Sae 100 R1 En856 1sn 4 Steel Wire Braid Hydraulic Hose Sae100 R1 En 853 1sn 2 Sae 100 R1 En856 1sn 3

ORIENTFLEX

Factory History: Established in 2006
Business Type: Manufacturer and exporter
Main Products: Small machinery such as hydraulic hose crimping machine, industrial hose, hydraulic hose, PVC hose and hose coupling.
